Philips MCD109/98 - Electrical Parts List - Power Board

8 - 4

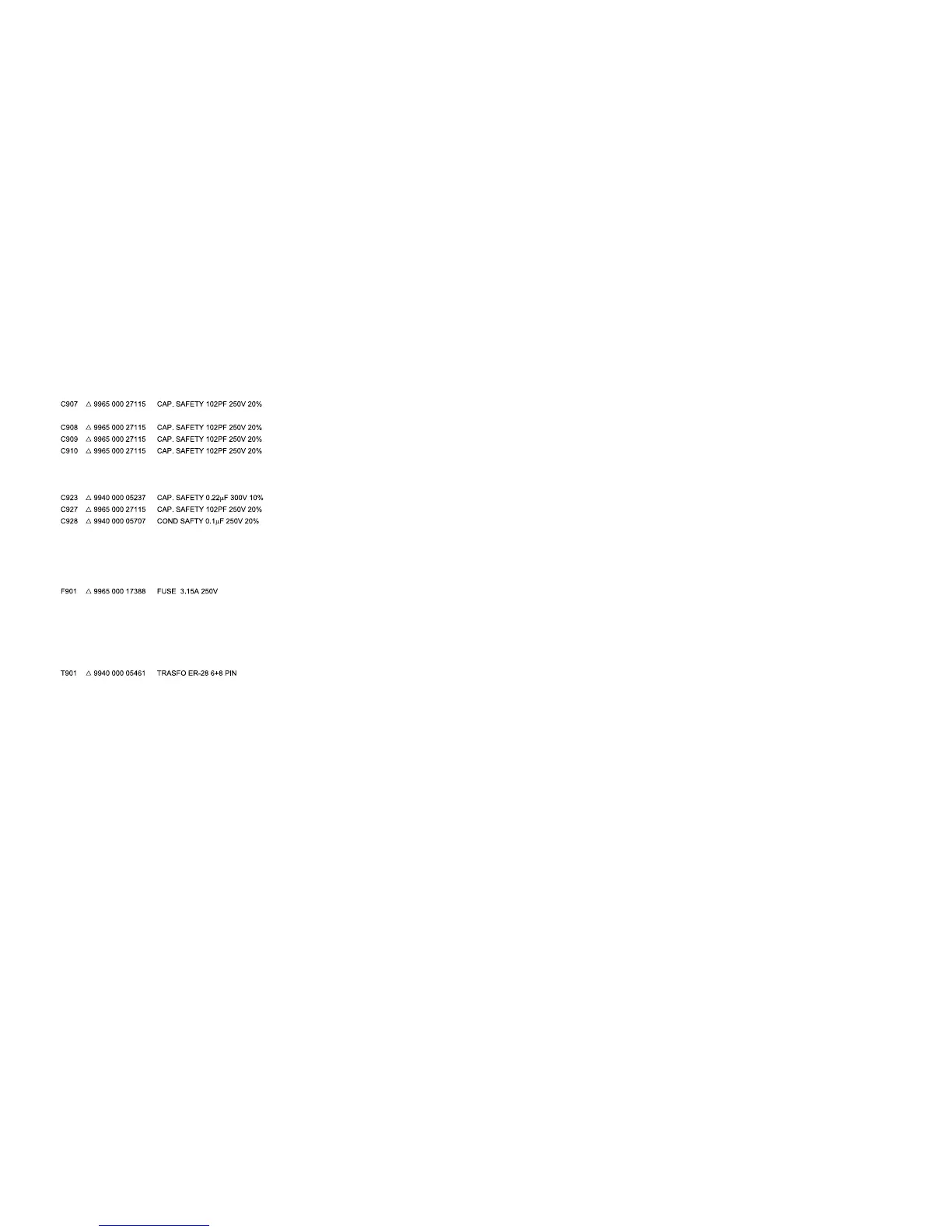

ELECTRICAL PARTS LIST - POWER BOARD
BD901 9940 000 05456 BRIDGE RECT. GBP206 2A
C903 9965 000 18042 COND DISC 0.01µF 1KV 20%
C904 9965 000 18042 COND DISC 0.01µF 1KV 20%
C905 9965 000 27125 COND DISC 0.0022µF 1KV 20%
C911 9940 000 05458 COND DISC 220pF 1KV 10%
C912 9940 000 05458 COND DISC 220pF 1KV 10%
D901 9940 000 05459 DIODE STPR1020CT
D902 9940 000 00938 DIODE PR1507 1.5A 1000V
D903 9940 000 00941 DIODE HER104 1A 300V 50nS
D904 9940 000 05249 DIODE SB360 3A 60V
IC901 9940 000 05462 IC 6P TOP247Y PWM SWITCH
IC902 9940 000 00946 OPT. SENSOR 4P CTR:200~400
IC903 9940 000 01572 IC 3 PIN TL431
L903 9940 000 05457 AC FILTER ET-24 D0.45 30mH
NTC901 9940 000 05232 THERMIST. NTC 5Ω 5A
TVR901 9965 000 32754 THERMIST. PTC 50A 561V
Note: Only these parts mentioned in the list are
normal service parts.
!
!
!
!
!
!
!
!
!
