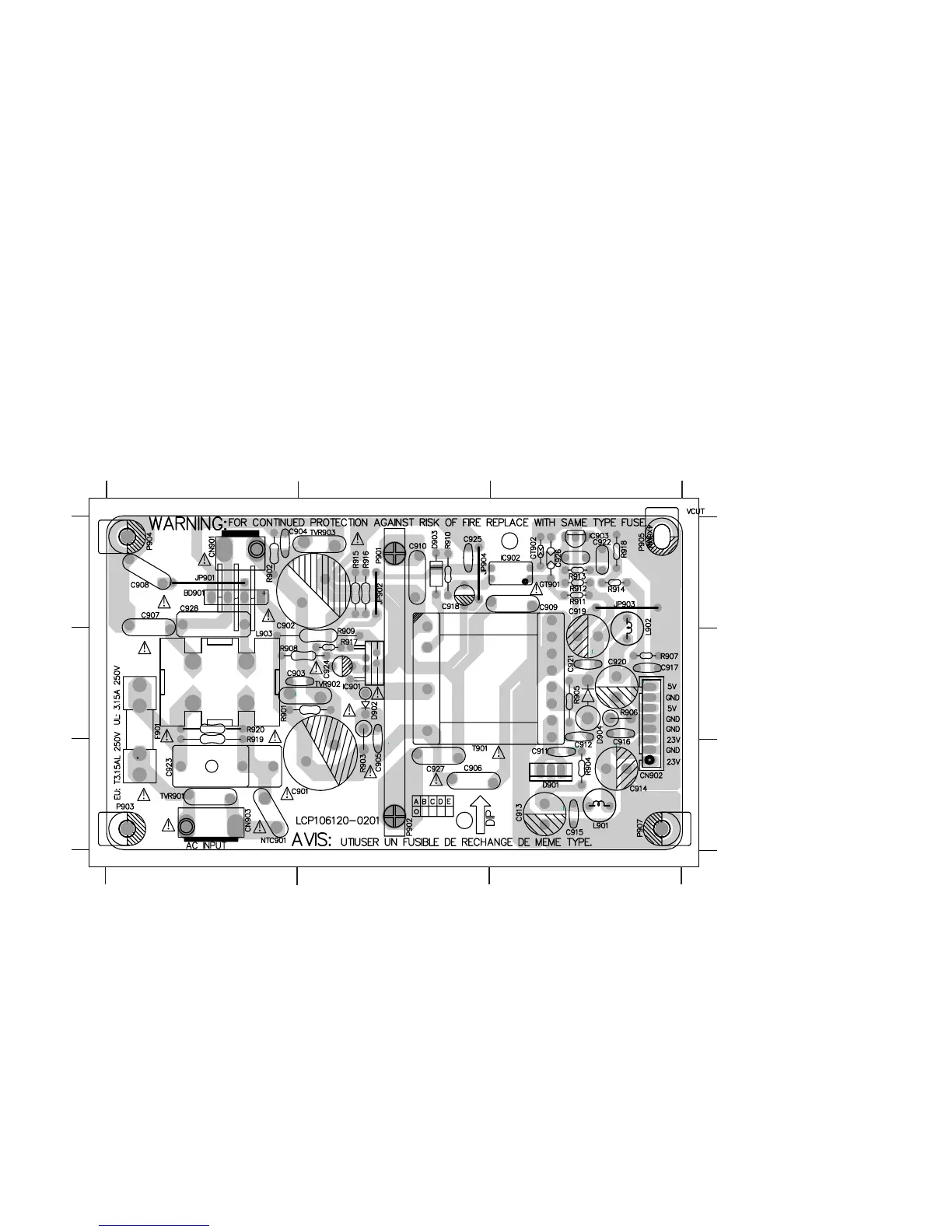

PCB LAYOUT - POWER BOARD
ABC
ABC
1
2
3
1
2
3
BD901 A1 C909 C1 C917 C2 C925 B1 D902 B2 JP902 B1 P902 B3 R904 C3 R912 C1 R920 A2
C901 A3 C910 B1 C918 B1 C926 C1 D903 B1 JP903 C1 P903 A3 R905 C2 R913 C1 T901 B3
C902 A1 C911 C3 C919 C1 C927 B3 D904 C2 JP904 B1 P904 A1 R906 C2 R914 C1 TVR901 A3
C903 A2 C912 C2 C920 C2 C928 A1 F901 A2 L901 C3 P905 C1 R907 C2 R915 B1
C904 B1 C913 C3 C921 C2 CN901 A1 IC901 B2 L902 C1 P907 C3 R908 A2 R916 B1
C905 B3 C914 C3 C922 C1 CN902 C3 IC902 C1 L903 A2 R901 A2 R909 B2 R917 B2
C907 A1 C915 C3 C923 A3 CN903 A3 IC903 C1 NTC903 A3 R902 A1 R910 B1 R918 C1
C908 A1 C916 C2 C924 B2 D901 C3 JP901 A1 P901 B1 R903 B3 R911 C1 R919 A2
