Philips MCD728 - DVD Part Disassembly Diagram; DVD Part Disassembly Steps

4 - 14 - 1
B1
C1
C2
H
I
J
A.Remove Bottom Cover
A1.remove screws M2.5x4(10pcs)
B*.remove screws M3x10(8pcs) and M3x8(3pcs)
C*.remove screws M3x8(4pcs) and T3x4(2pcs)
D.Remove Back Panel & Top cover
D*remove screws T3x4(5pcs)and T3x6(5pcs)and T3x10(2pc)
E. Remove DVD Rom
I.Remove VFD board assy
H.Remove Slid Plank
I.Remove Side metal Plate

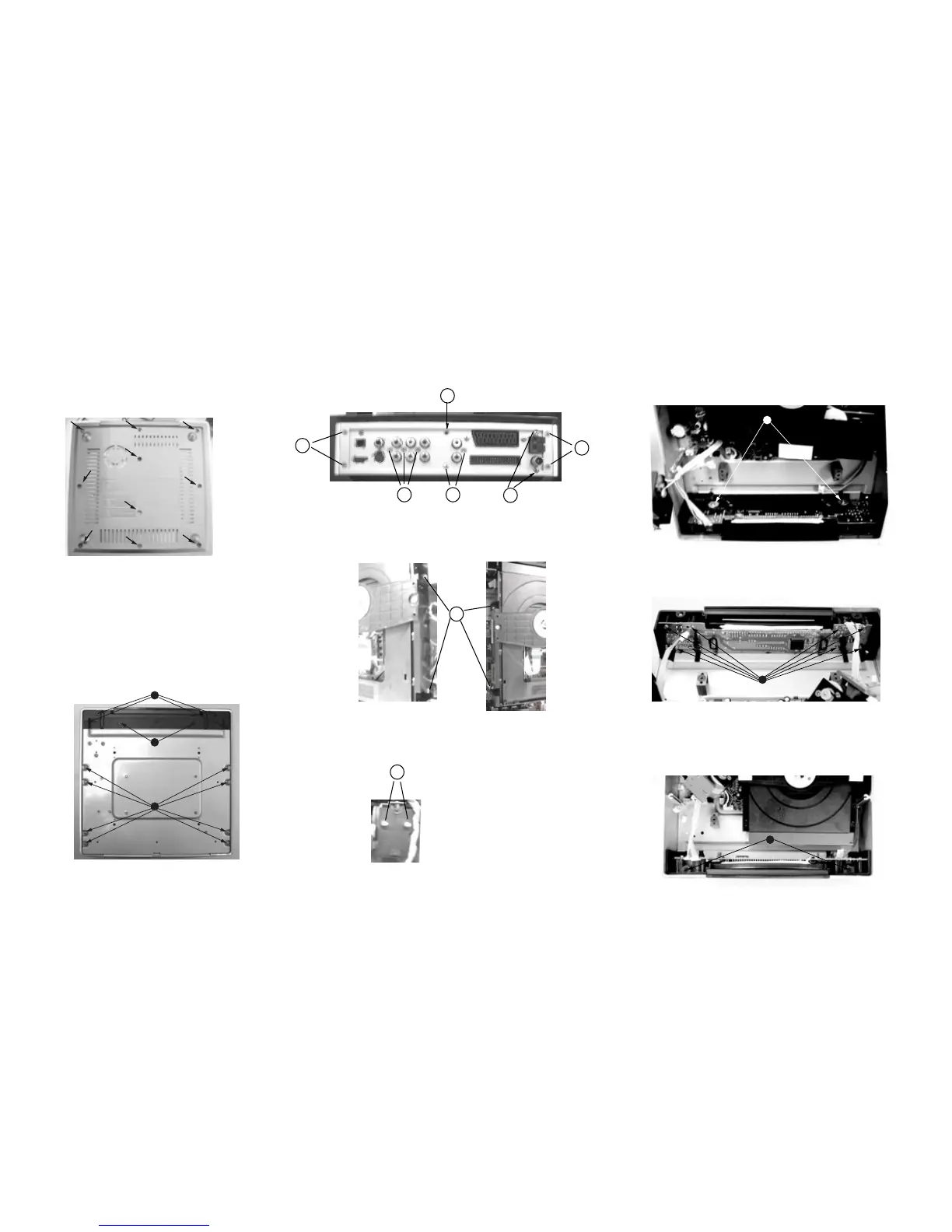

DISASSEMBLY DIAGRAM - DVD PART
D1
D1
D1
D2 D2
D3
E
F. Remove MOTO cover
F
