Philips MCD728 - Amplifier Part Disassembly Diagram; Amplifier Part Disassembly Steps

4 - 2 4 - 2
A
C
B1
B2
H
A.Remove Bottom Cover
A1.remove screws M2.5x4(8pcs)
B*.remove screws M3x10(6pcs) and T3x10(4pcs)
C*.remove screws T3x4(5pcs)
D.Remove Back Panel & Top Cover
D*remove screws T3x4(4pcs)and T3x6(1pcs)and T3x10(1pcs)
E. Remove Pre-AMP Board Assy
F. Remove AMP Board Assy
H.Remove AMP Front board assy
G.Remove SMPS board assy
I.Remove Side metal Plate

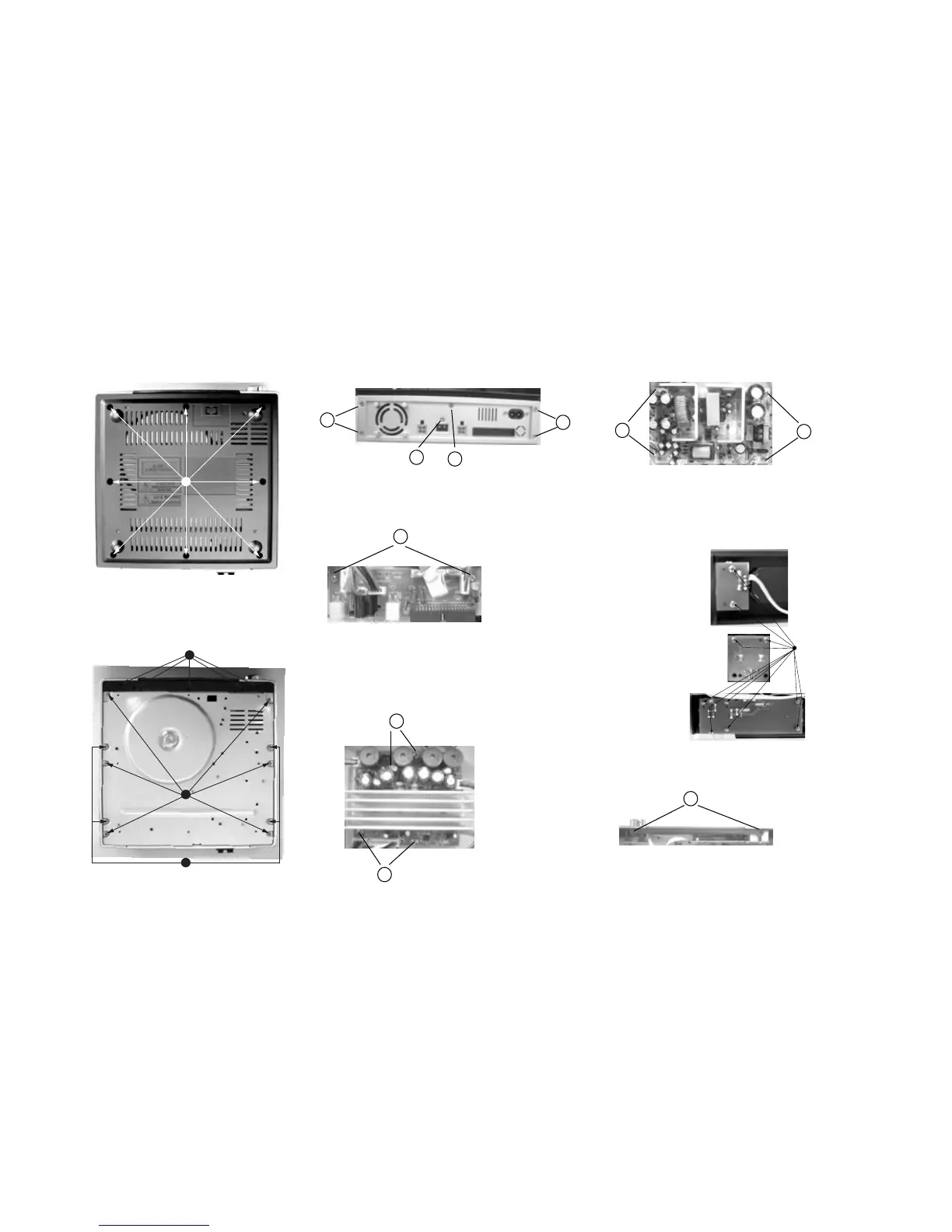

DISASSEMBLY DIAGRAM - AMP PART
D1
D1
D2
D3
F
F
I
E
G
G
