Philips MX5100VR - Page 53

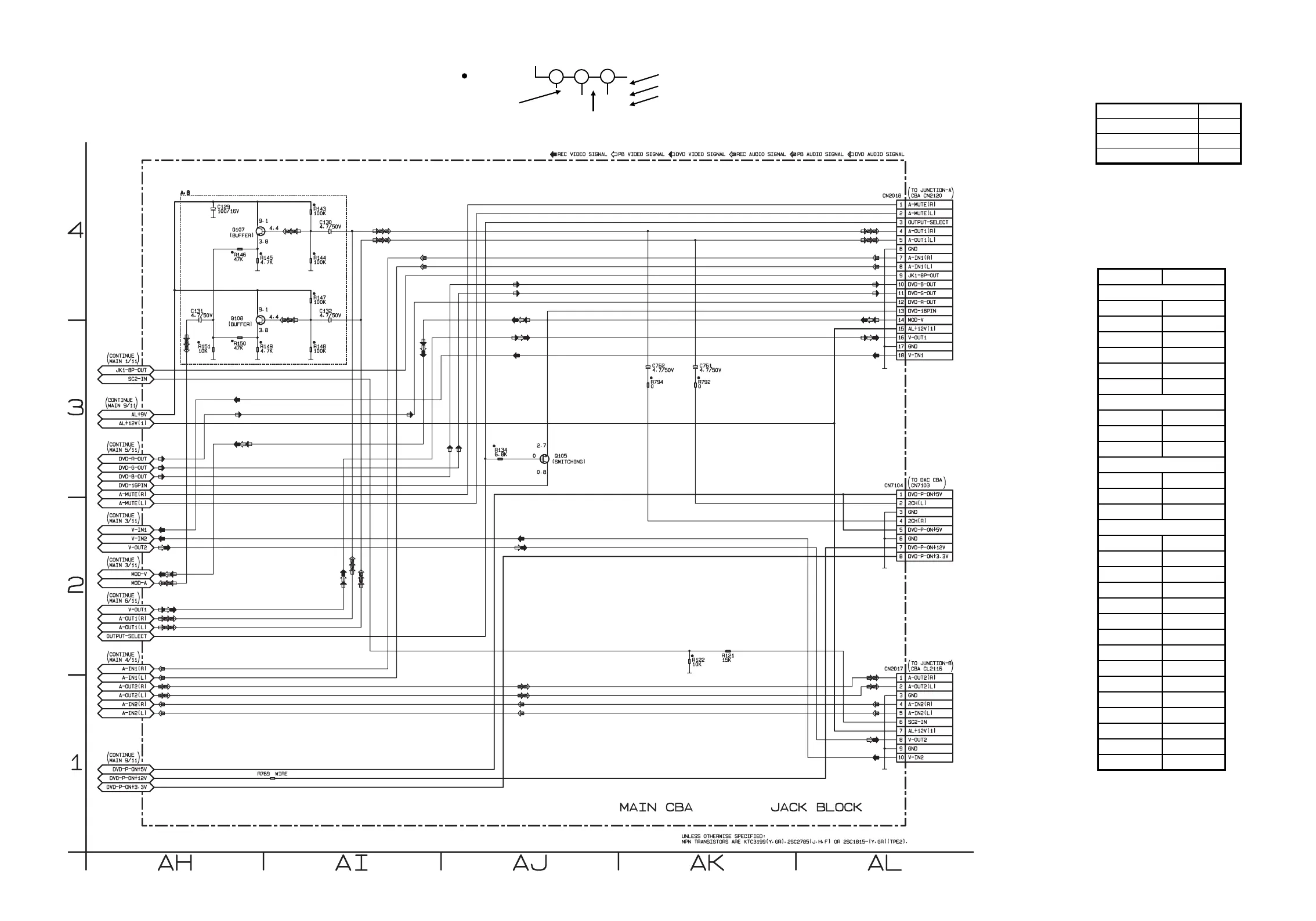

Main 7/11 Schematic Diagram < VCR Section >
1-12-19
1-12-20
E9015SCM7
“ “ = SMD
THE SAME VOLTAGE FOR BOTH
PLAY, REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
<5.0>
~
DVD MODE
MAIN 7/11 Schematic Diagram
Parts Location Guide
Ref No. Position
C129 AH-4
C130 AI-4
C131 AH-4
C132 AI-4
C761 AK-3
C762 AK-3
CN2017 AL-1
CN2018 AL-4
CN7104 AL-3
Q105 AJ-3
Q107 AH-4
Q108 AH-4
R121 AK-2
R122 AK-2
R134 AJ-3
R143 AI-4
R144 AI-4
R145 AH-4
R146 AH-4
R147 AI-4
R148 AI-3
R149 AH-3
R150 AH-3
R151 AH-3
R769 AI-1
R792 AK-3
R794 AK-3
CAPACITORS
CONNECTORS
TRANSISTORS
RESISTORS
Comparison Chart of
Models and Marks
MODEL MARK
MX5100VR/00 A
MX5100VR/05 B
MX5100VR/02 C
