Philips MX5100VR - Page 58

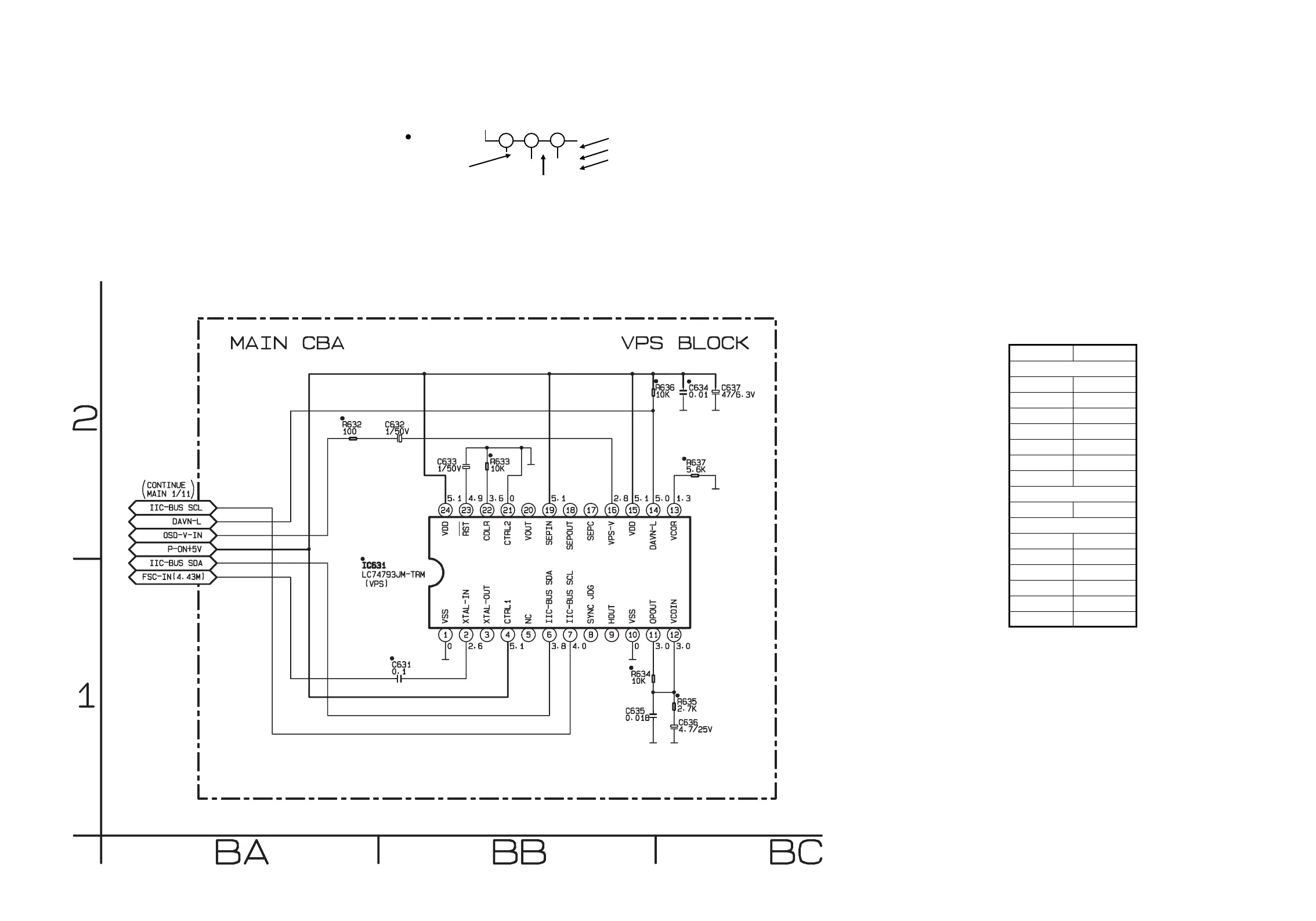

Main 10/11 Schematic Diagram < VCR Section>
1-12-27
1-12-28
E9015SCM10
MAIN 10/11 Schematic Diagram
Parts Location Guide
Ref No. Position
C631 BB-1
C632 BB-2
C633 BB-2
C634 BC-2
C635 BB-1
C636 BC-1
C637 BC-2
IC631 BB-1
R632 BA-2
R633 BB-2
R634 BB-1
R635 BC-1
R636 BB-2
R637 BC-2
CAPACITORS
IC
RESISTORS
“ “ = SMD
THE SAME VOLTAGE FOR BOTH
PLAY, REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
<5.0>
~
DVD MODE
