Philips MX5100VR - Page 59

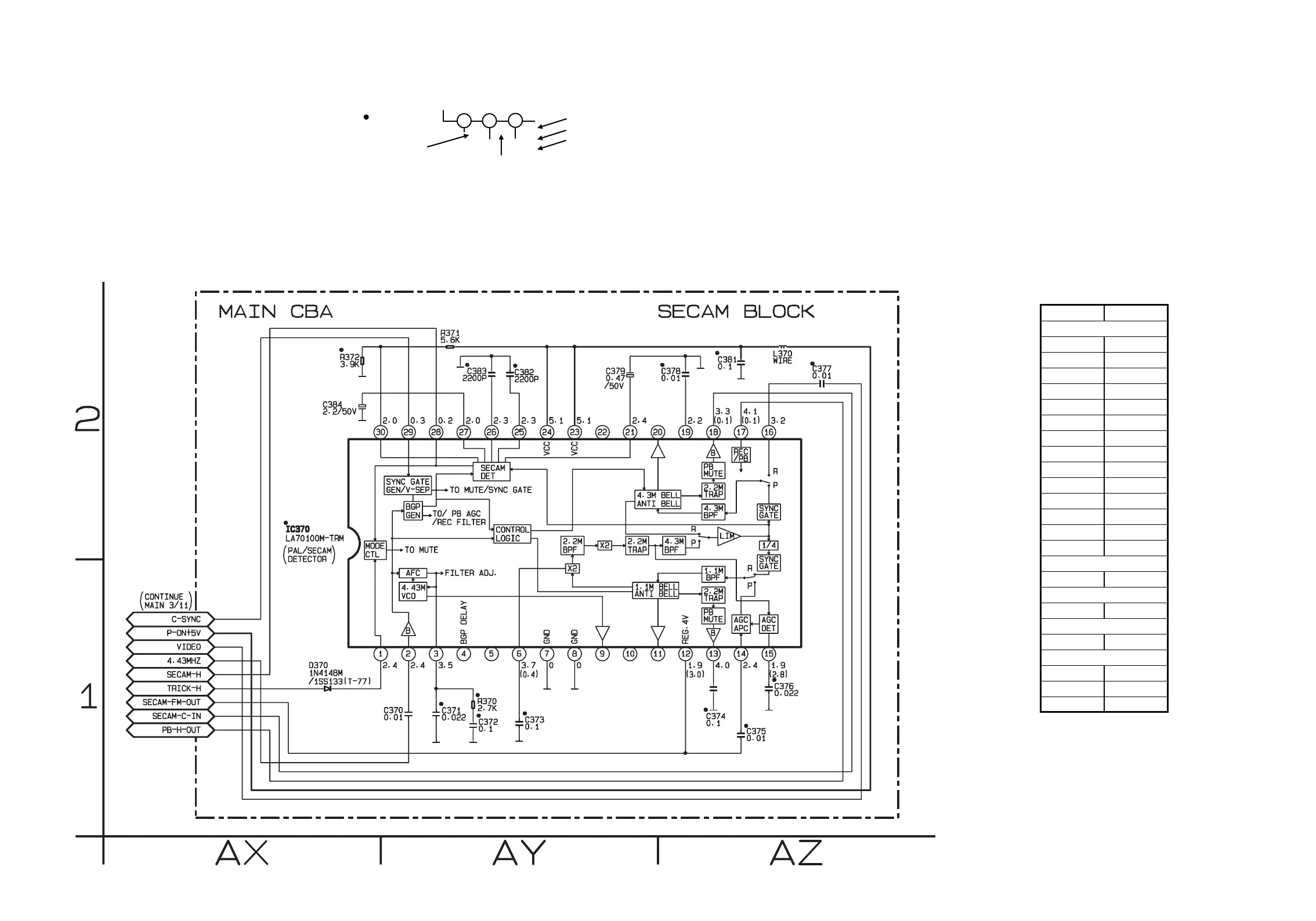

Main 11/11 Schematic Diagram < VCR Section >
1-12-29
1-12-30
E9015SCM11
MAIN 11/11 Schematic Diagram
Parts Location Guide
Ref No. Position
C370 AY-1
C371 AY-1
C372 AY-1
C373 AY-1
C374 AZ-1
C375 AZ-1
C376 AZ-1
C377 AZ-2
C378 AZ-2
C379 AY-2
C381 AZ-2
C382 AY-2
C383 AY-2
C384 AX-2
D370 AX-1
IC370 AX-2
L370 AZ-2
R370 AY-1
R371 AY-2
R372 AX-2
CAPACITORS
RESISTORS
DIODE
IC
COIL
“ “ = SMD
THE SAME VOLTAGE FOR BOTH
PLAY, REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
<5.0>
~
DVD MODE
