Philips MX5100VR - Page 74

1-12-59
1-12-60

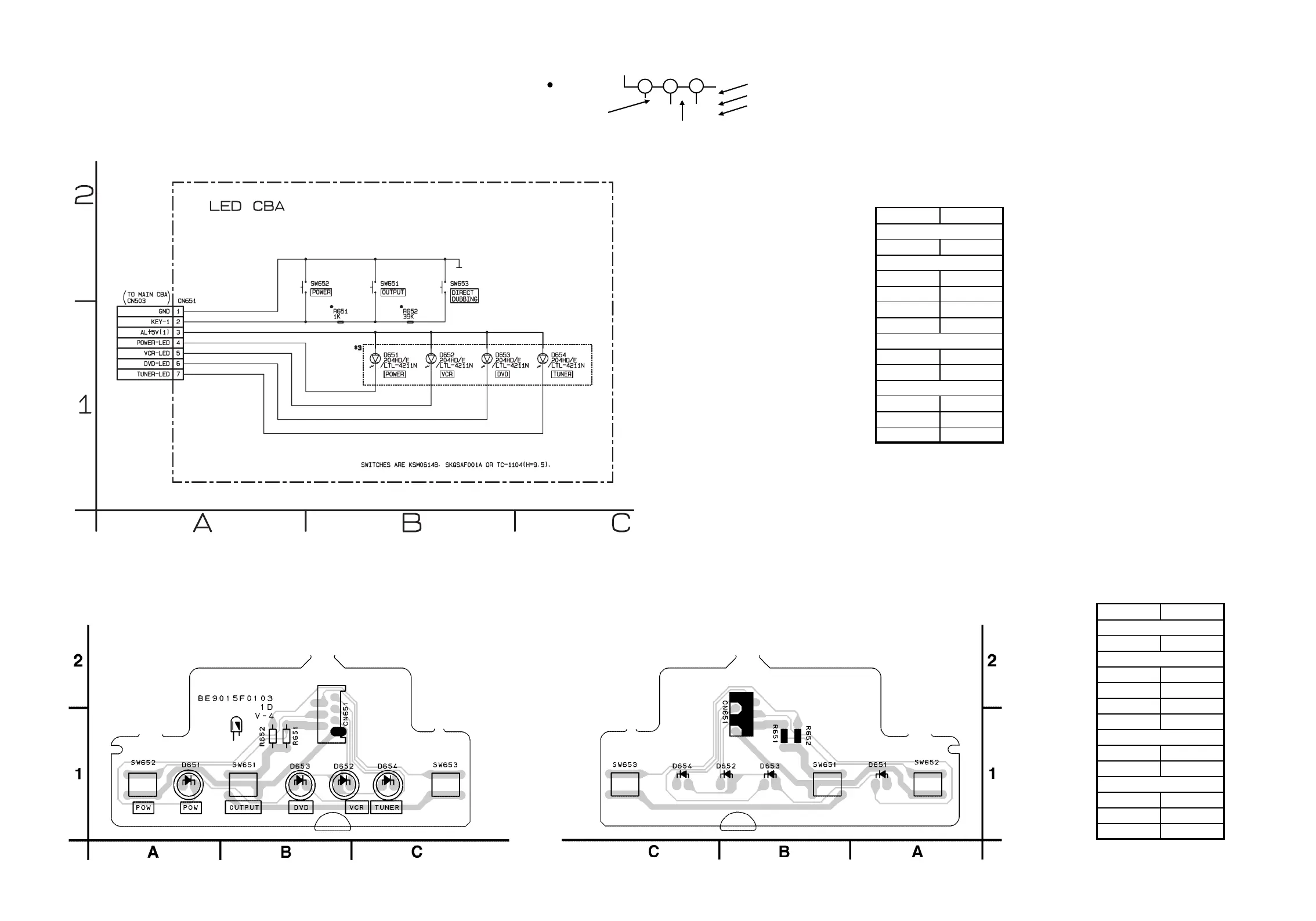

LED Schematic Diagram <VCR Section>
LED CBA Top View
BE9015F01031D
LED CBA Bottom View
LED CBA
Parts Location Guide
Ref No. Position
CN651 B-2
D651 A-1
D652 B-1
D653 B-1
D654 C-1
R651 B-1
R652 B-1
SW651 B-1
SW652 A-1
SW653 C-1
SWITCHES
CONNECTOR
DIODES
RESISTORS
LED Schematic Diagram
Parts Location Guide
Ref No. Position
CN651 A-1
D651 B-1
D652 B-1
D653 B-1
D654 C-1
R651 B-1
R652 B-1
SW651 B-2
SW652 B-2
SW653 B-2
DIODES
CONNECTOR
SWITCHES
RESISTORS
“ “ = SMD
THE SAME VOLTAGE FOR BOTH
PLAY, REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
<5.0>
~
DVD MODE
E9015SCLED
Note:
When replacing one of the following parts,
all of them should be replaced: D651, D652, D653, D654.
*
3
