8239 210 93416 .. 3139 113 3494pt6 dd wk0334
This assemby drawing shows a summary of all possible versions. For components used in a specific version
see schematic and respective parts list.
8239 210 93416 .. 3139 113 3494pt6 dd wk0334
This assemby drawing shows a summary of all possible versions. For components used in a specific version
see schematic and respective parts list.
PART A
PART B
31391133494501

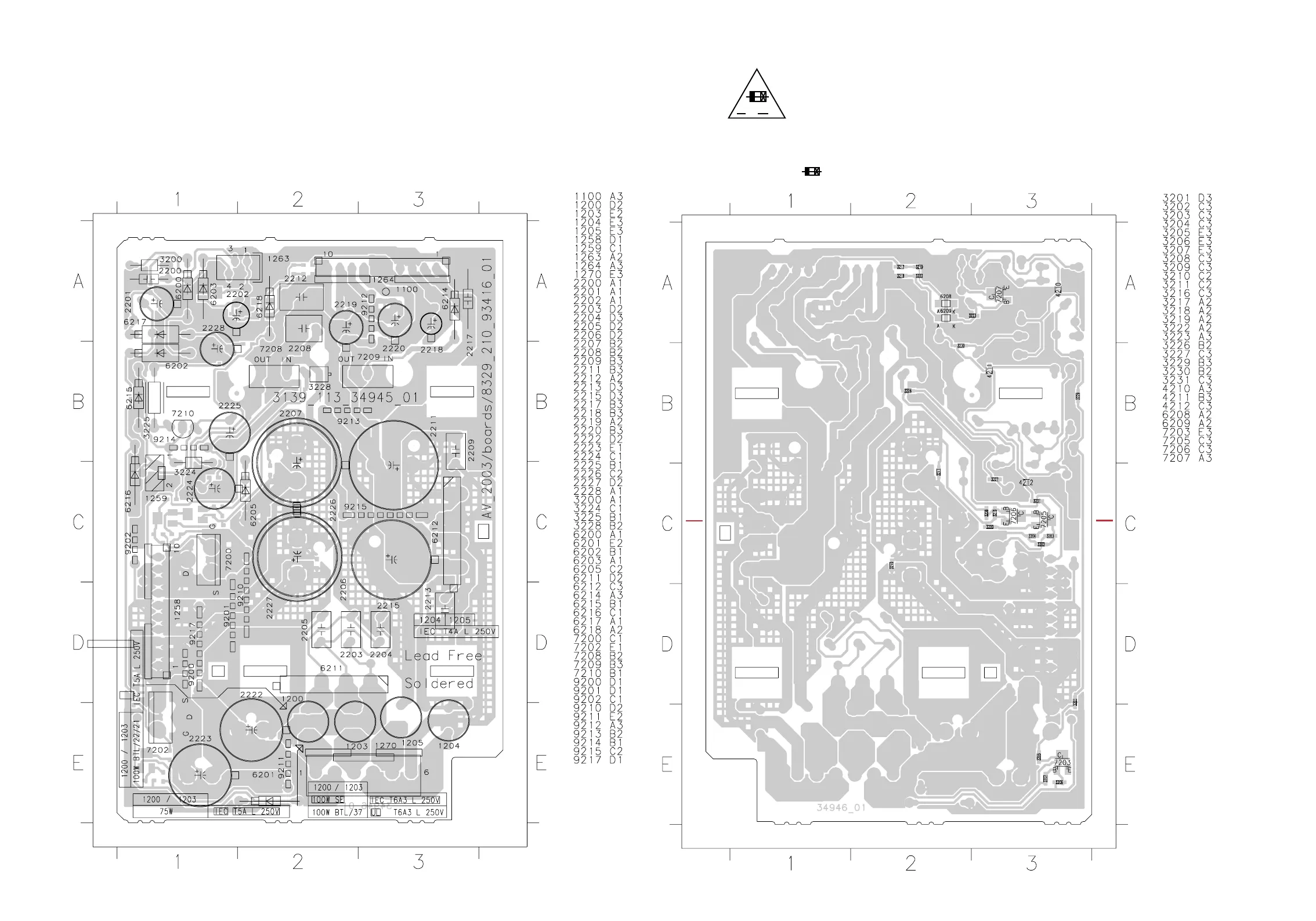

Power Supply (AUDIO MODULE) BOARD Top & Bottom View
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY
WITH THE SAME TYPE FUSE. 1200,1203: T5A 250V,
1204,1205: T4A 250V
Mfr: WICKMANN-WERKE GMBH TYPE NO.: 372.
ATTENTION
AFIN D’ASSURER UNE PROTECTION CONTINUE CONTRE LES RISQUES D’INCENDIE, UTILISER
UNIQUEMENT UN FUSIBLE DU MEME TYPE POUR LE REMPLACEMENT.
1200, 1203 : T5A 250 V
1204, 1205 : T4A 250 V
Fabricant : WICKMANN-WERKE GMBH TYPE NO. : 372
RISK OF FIRE-REPLACE FUSE AS MARKED.
"This symbol means slow operating fuse."
"Ce symbole signifie fusible à action lente."
A V
T
1-12-109 1-12-110
