Philips MX5800SA/22S - Main Unit and Remote Control Layout

16
English
Functional Overview

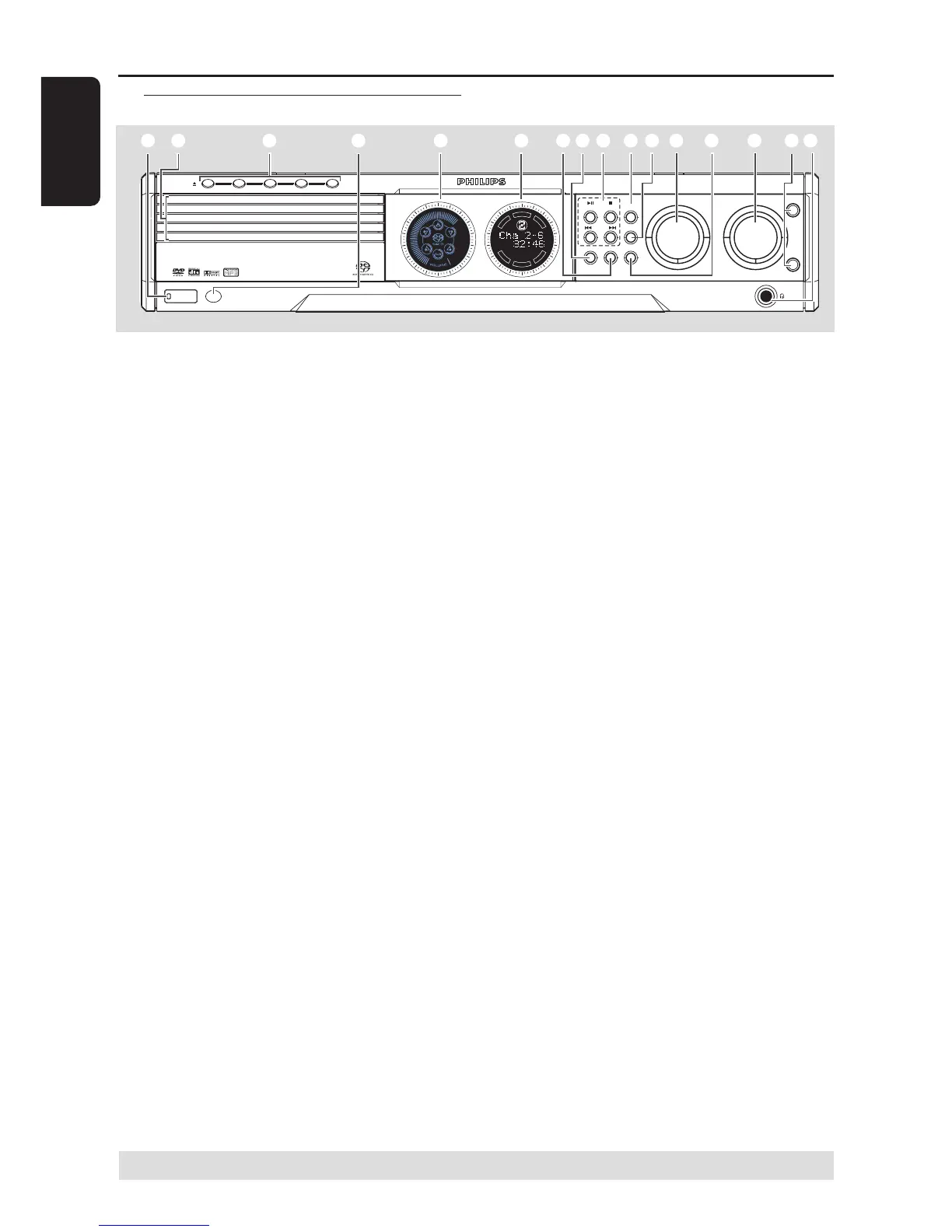

Main unit and remote control
* = Press and hold the button for more than two seconds.
DVD VIDEO DIGITAL SURROUND SYSTEM
STOPPLAY• PAUSE SEATING
STANDBY-ON
iR SENSOR
DISC 1
DISC 2
DISC 3
DISC 4
DISC 5
DISC 1 DISC 2 DISC 3 DISC 4 DISC 5
TREBLE
BASS
SOURCE
VOLUME
PROG TUNING CLOCK•TIMER
SURROUND
SEARCH
5 DISC CHANGER
OPEN•CLOSE
DVD
D
I
S
C
S
U
R
-
R
R
I
G
H
T
C
E
N
T
R
E
L
E
F
T
S
U
B
S
U
R
-
L
^%$#@!0987531 2 4 6
1 STANDBY ON
– Switches to Eco Power standby mode or turns
on the system.
– *Switches to standby mode.
2 Disc trays 1~5
3 OPEN•CLOSE 0 (DISC1~5)
– Opens/Closes the individual disc tray.
4 iR SENSOR
– Point the remote control towards this sensor.
5 Speaker display panel
6 System display panel
7 TUNING
– Switches between frequency tuning and preset
tuning mode.
8 PROG (PROGRAM)
– DISC: starts programming.
– TUNER: starts *automatic/manual preset
programming.
– CLOCK: selects 12- or 24-hour clock display.
9 ÉÅ PLAY•PAUSE
– DISC: starts/pauses playback.
– TUNER: *enters Plug & Play mode and/or
starts preset radio station installation (only on
the main unit).
Ç STOP
– Exits an operation.
– DISC: stops playback or clears a programme.
– TUNER: *erases a preset radio station.
S SEARCH T (PREV/NEXT)
– DISC: *searches backward/forward or selects
a track.
– TUNER: *tunes the radio frequency up/ down
or selects a preset radio station.
(On the remote, it can only tune the radio
frequency up/down).
– CLOCK: sets the minutes and hours.
0 SEATING (only available in Multi-
channel mode)
– Turns on/off the seating control diagram on
the TV. Use the VOLUME control on the main
unit or joystick on the remote to select the
desired seating position.
! SURROUND (SURR.)
– Selects multichannel surround, 3D sound or
stereo mode.
@ SOURCE
– Selects the relevant active mode : TV/AV, DISC,
TUNER or AUX/DI.
– DISC: toggles between DISC 1~5 (only on the
main unit).
– TUNER: toggles between FM and MW band.
– AUX/DI: toggles between AUX and DI (Digital
Input) mode.
# CLOCK•TIMER
– *Enters clock or timer setting mode.
– Shows clock display for a few seconds.
$ VOLUME (VOL +-)
– Adjusts the volume level.
% BASS / TREBLE
– Selects bass or treble sound. Use the VOLUME
control to select the desired enhancement level.
^ n
– Plugging in the headphones jack. The speakers
output will be cancelled.
