4. Ordering information
5. Block diagram
V
OUT3.3
27 P 3.3 V regulated output. To operate the IC at 3.3 V, supply a
3.3 V to both V
CC
and V
OUT3.3
pins.
A0 28 I Address bit. A0 = 1 selects command instruction; A0 = 0 selects
the data phase. This bit is a don’t care in a multiplexed address
and data bus configuration and should be tied HIGH.
Table 1: Pin description
…continued
Symbol Pin Type
[1]
Description
Table 2: Ordering information
Packages Temperature range Outside North America North America Pkg. Dwg. #
28-pin plastic SO −40 °C to +85 °C PDIUSBD12 D PDIUSBD12 D SOT136-1
28-pin plastic TSSOP −40 °C to +85 °C PDIUSBD12 PW PDIUSBD12PW DH SOT361-1
This is a conceptual block diagram and does not include each individual signal.

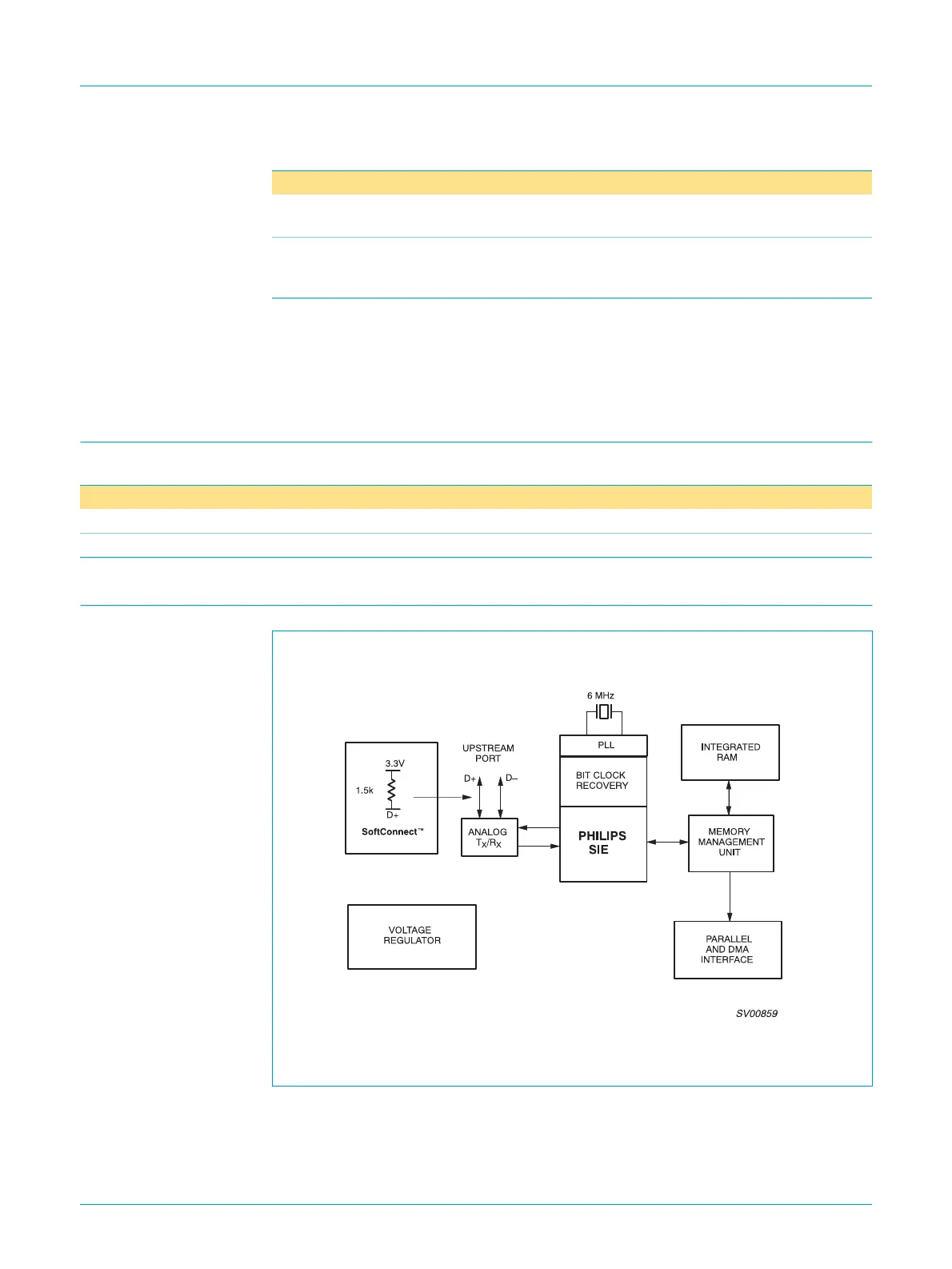

Fig 2. Block diagram.
