Philips PM 5390 - Basic Principle of Operation; Description of the Block Diagram; Operating Principle

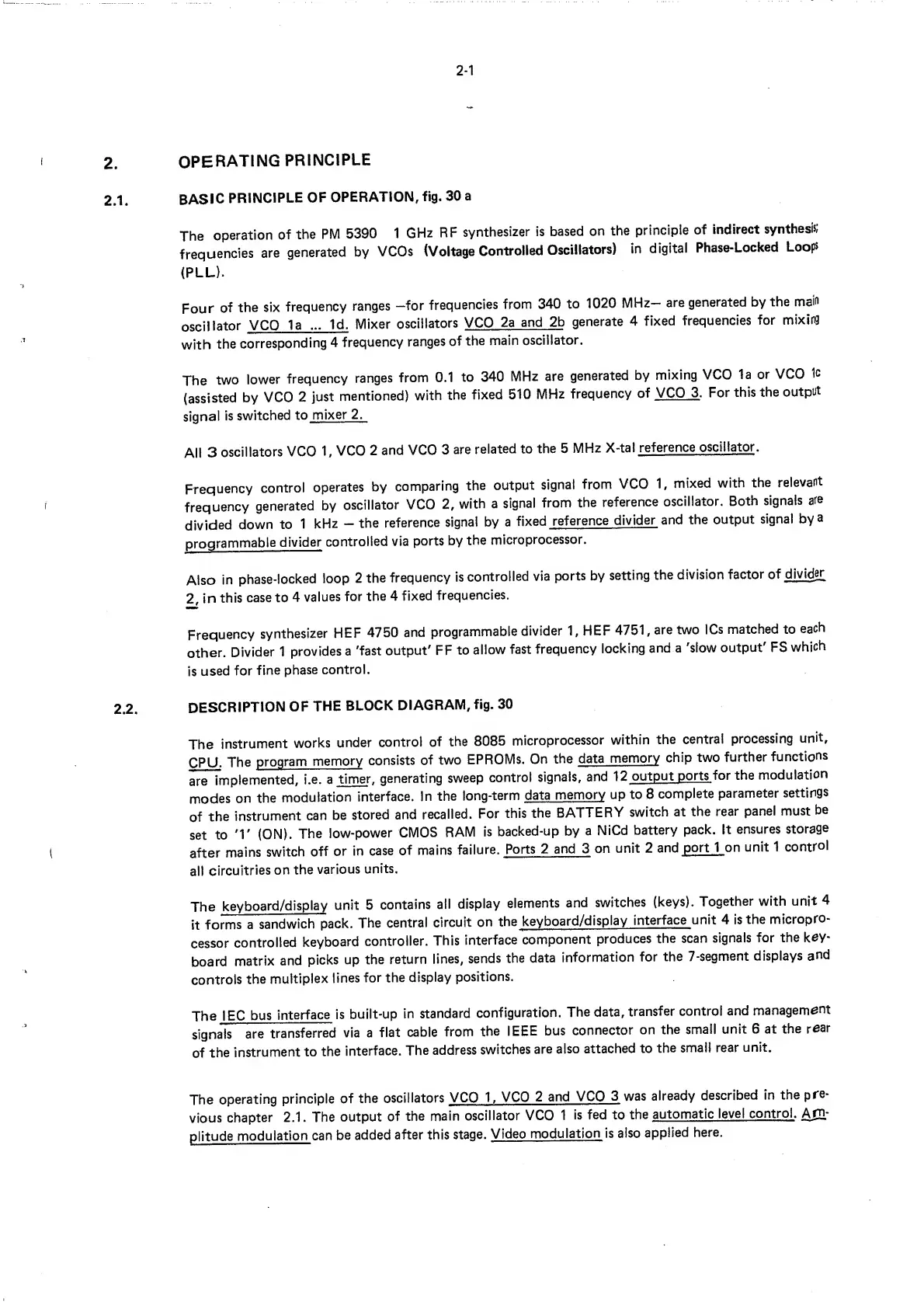

2-1
2.
OPERATING
PRINCIPLE
2.1.
basic
PRINCIPLE
OF
OPERATION,
fig.
30
a
The
operation
of
the PM
5390
1
GHz
RF
synthesizer
is
based
on
the
principle
of
indirect
synthesis;
frequencies
are
generated
by
VCOs (Voltage
Controlled
Oscillators)
in
digital
Phase-Locked
Loops
(PLL).
Four
of
the
six
frequency
ranges
-for
frequencies
from
340 to
1020
MHz-
are
generated by
the
maid
oscillator
VCO
la
...
Id.
Mixer
oscillators
VCO
2a
and 2b
generate
4
fixed
frequencies
for
mixing
with
the
corresponding
4
frequency
ranges
of
the
main
oscillator.
The
two
lower
frequency
ranges
from
0.1
to
340
MHz
are
generated
by
mixing VCO
la or
VCO
(assisted
by VCO
2
just
mentioned)
with
the
fixed
510
MHz
frequency
of
VCO
3. For
this
the
output
signal
is
switched
to
mixer
2.
All
3
oscillators
VCO
1,
VCO
2
and VCO
3
are
related
to
the 5
MHz
X-tal
reference
oscillator .
Frequency
control
operates
by
comparing
the
output
signal
from
VCO
1,
mixed
with
the
relevant
frequency
generated
by
oscillator
VCO
2,
with
a
signal
from
the
reference
oscillator.
Both
signals
are
divided
down
to
1
kHz
-
the
reference
signal
by a
fixed
reference
divider
and
the
output
signal by
a
programmable
divider
controlled
via
ports
by
the
microprocessor.
Also
in
phase-locked
loop
2
the
frequency
is
controlled
via
ports
by
setting
the
division
factor of
divide
r
2,
in
this
case to
4
values
for
the
4
fixed
frequencies.
Frequency
synthesizer
HEF
4750
and
programmable
divider
1,
HEF
4751,
are two
ICs
matched to
each
other.
Divider
1
provides
a
'fast
output' FF
to
allow
fast
frequency
locking
and a 'slow
output' FS
which
is
used
for
fine
phase
control.
2.2.
description
OF
THE
BLOCK
DIAGRAM,
fig. 30
The
instrument
works
under
control
of
the
8085
microprocessor
within
the
central
processing
unit,
CPU.
The
program
memory
consists
of
two
EPROMs.
On
the
data
memory
chip two
further
functions
are
implemented,
i.e.
a
timer
,
generating
sweep
control
signals,
and 12
output
ports
for the
modulation
modes
on
the
modulation
interface.
In
the
long-term
data
memory
up to 8
complete
parameter
settings
of
the
instrument
can
be
stored
and
recalled.
For
this
the
BATTERY
switch
at
the
rear
panel must
be
set
to
'1'
(ON).
The
low-power
CMOS
RAM
is
backed-up by
a
NiCd
battery
pack. It
ensures
storage
after
mains
switch
off
or
in
case
of
mains
failure.
Ports 2
and 3
on
unit 2
and
port
1 on
unit 1
control
all
circuitries
on
the
various
units.
The
keyboard/display
unit 5
contains
all
display
elements
and
switches
(keys).
Together
with
unit
4
it
forms
a
sandwich
pack.
The
central
circuit
on
the
kevboard/display
interface
unit 4 is
the
micropro-
cessor
controlled
keyboard
controller.
This
interface
component
produces
the
scan
signals
for the
key-
board
matrix
and
picks
up the
return
lines,
sends
the
data
information
for
the
7-segment
displays
and
controls
the
multiplex
lines
for the
display
positions.
The
I EC
bus
interface
is
built-up
in
standard
configuration.
The
data,
transfer
control
and
management
signals
are
transferred
via
a flat
cable
from
the
IEEE
bus
connector
on
the
small
unit
6 at
the
rear
of
the
instrument
to
the
interface.
The
address
switches
are
also
attached
to
the
small rear
unit.
The
operating
principle
of
the
oscillators
VCO 1
.
VCO
2
and VCO
3 was
already
described
in the
pre-
vious
chapter
2.1.
The
output
of
the
main
oscillator VCO
1
is fed to
the
automatic
level
control.
Afn-
plitude
modulation
can
be
added
after this
stage.
Video
modulation
is also
applied
here.
