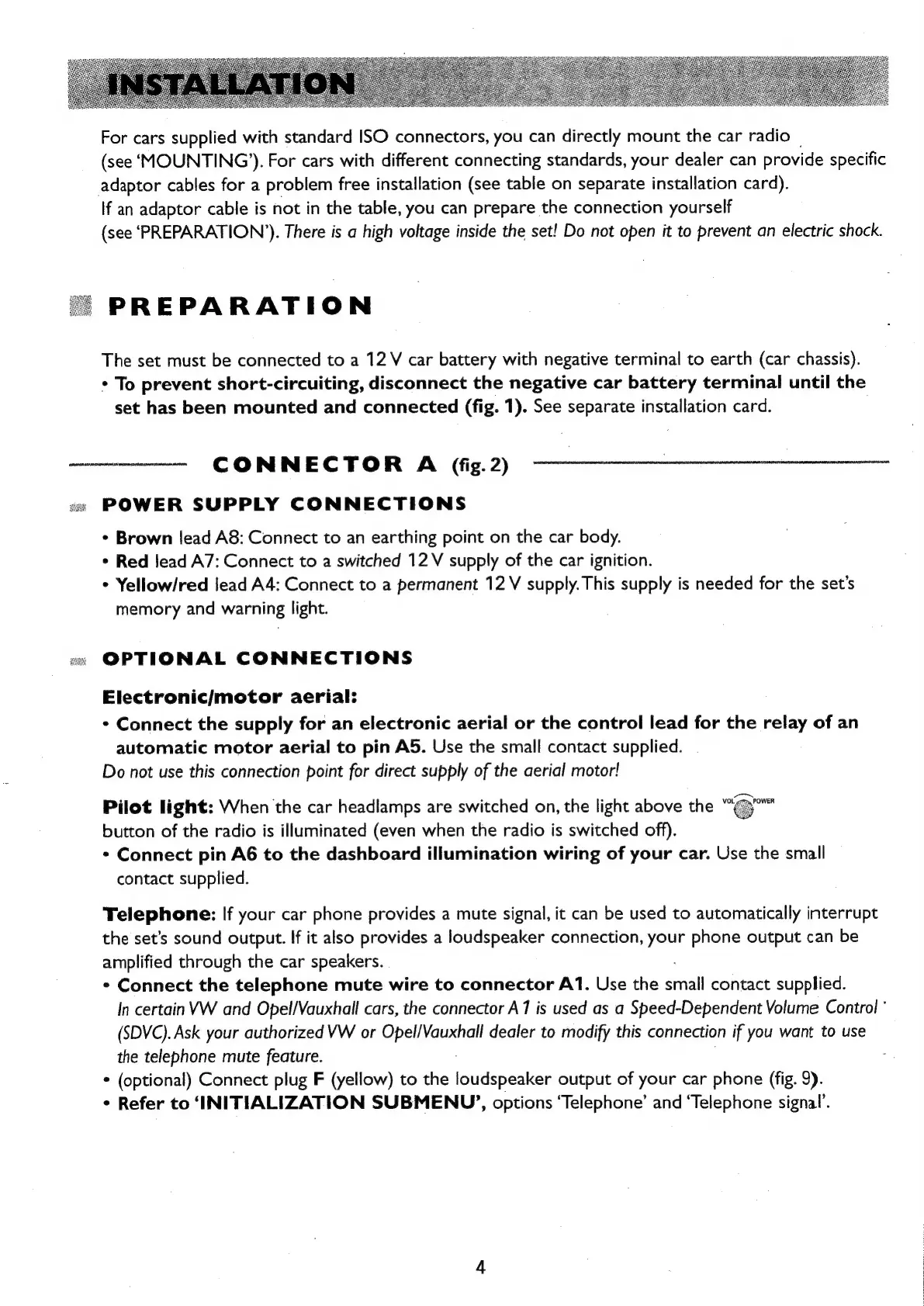

Philips RC759 RDS - Power Supply Connections; Optional Connections

———-----._—CONNECTOR
A
(fig.
2)
aan
For cars supplied with standard ISO connectors, you can directly mount the car radio
(see ‘MOUNTING’). For cars with different connecting standards, your dealer can provide specific
adaptor cables for a problem free installation (see table on separate installation card).
If an adaptor cable is not in the table, you can prepare the connection yourself
(see ‘PREPARATION’). There is a high voltage inside the set! Do not open it to prevent an electric shock.
PREPARATION
The set must be connected to a 12 V car battery with negative terminal to earth (car chassis).
* To prevent short-circuiting, disconnect the negative car battery terminal until the
set has been mounted and connected (fig. 1). See separate installation card.
POWER SUPPLY CONNECTIONS
* Brown lead A8: Connect to an earthing point on the car body.
¢ Red lead A7: Connect to a switched 12 V supply of the car ignition.
° Yellow/red lead A4: Connect to a permanent 12 V supply. This supply is needed for the set’s
memory and warning light.
OPTIONAL CONNECTIONS
Electronic/motor aerial:
* Connect the supply for an electronic aerial or the control lead for the relay of an
automatic motor aerial to pin A5. Use the small contact supplied.
Do not use this connection point for direct supply of the aerial motor!
Pilot light: When the car headlamps are switched on, the light above the
button of the radio is illuminated (even when the radio is switched off).
* Connect pin A6 to the dashboard illumination wiring of your car. Use the small
contact supplied.
Telephone: If your car phone provides a mute signal, it can be used to automatically interrupt
the set's sound output. If it also provides a loudspeaker connection, your phone output can be
amplified through the car speakers.
* Connect the telephone mute wire to connector AT. Use the rial contact supplied.
In certain VW and Opel/Vauxhall cars, the connector A 7 is used as a Speed-Dependent Volume Control °
(SDVC).Ask your authorized VW or Cn mey dealer to modify this connection if you want to use
the telephone mute feature.
* (optional) Connect plug F (yellow) to the loudspeaker output of your car phone (fig. 9).
* Refer to ‘INITIALIZATION SUBMENU’, options ‘Telephone’ and ‘Telephone signal’.
