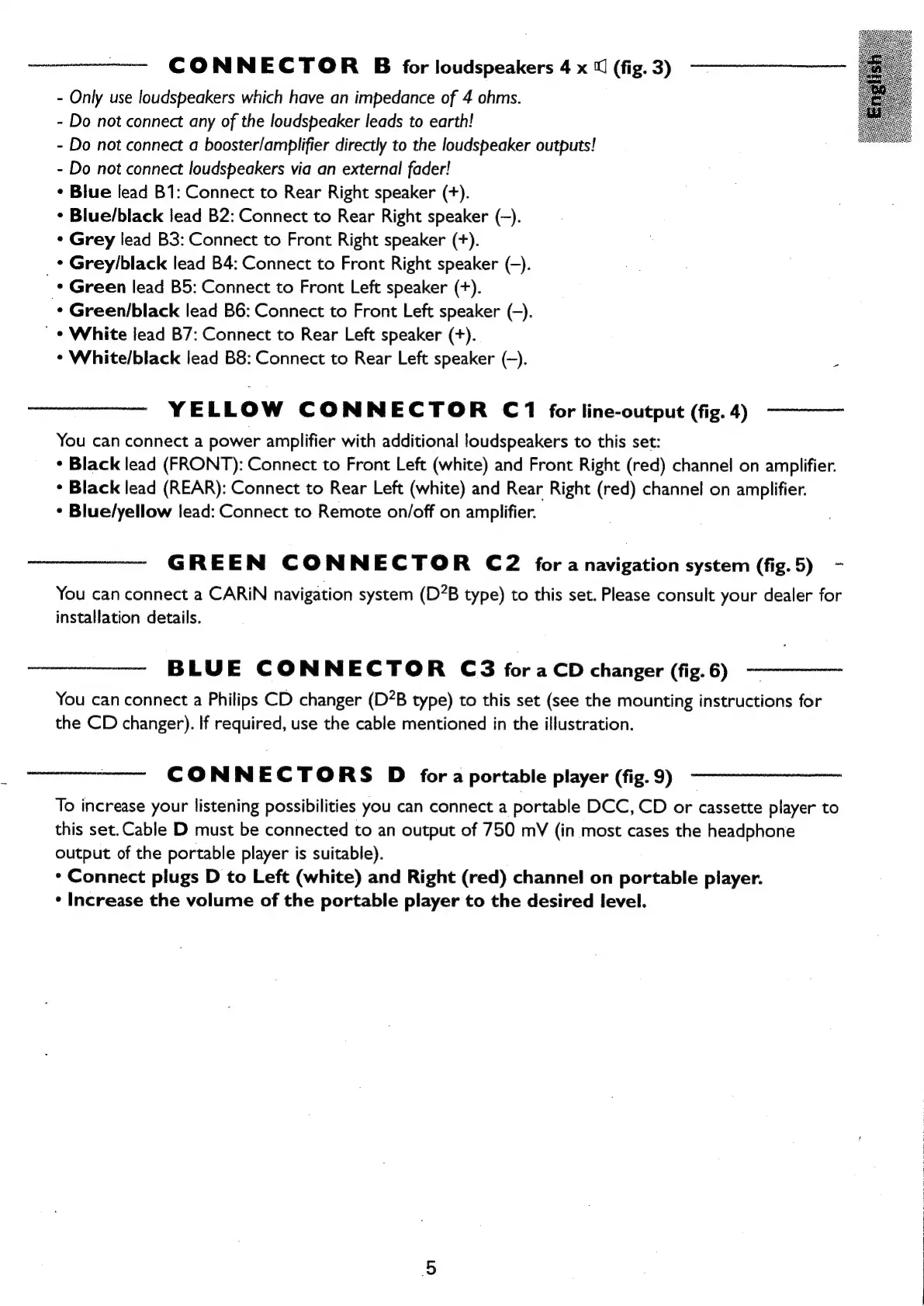

CONNECTOR 6B for loudspeakers 4 x 1 (fig. 3)
- Only use loudspeakers which have an impedance of 4 ohms.
- Do not connect any of the loudspeaker leads to earth!
- Do not connect a booster/amplifier directly to the loudspeaker outputs!
- Do not connect loudspeakers via an external fader!
* Blue lead B1: Connect to Rear Right speaker (+).
* Blue/black lead B2: Connect to Rear Right speaker (—).
* Grey lead B3: Connect to Front Right speaker (+).
* Grey/black lead B4: Connect to Front Right speaker (-).
: * Green lead B5: Connect to Front Left speaker (+).
* Green/black lead B6: Connect to Front Left speaker (-).
' * White lead B7: Connect to Rear Left speaker (+).
* White/black lead B8: Connect to Rear Left speaker (—).
YELLOW CONNECTOR C1 for line-output (fig. 4)
You can connect a power amplifier with additional loudspeakers to this set:
* Black lead (FRONT): Connect to Front Left (white) and Front Right (red) channel on amplifier.
* Black lead (REAR): Connect to Rear Left (white) and Rear Right (red) channel on amplifier.
* Blue/yellow lead: Connect to Remote on/off on amplifier.
GREEN CONNECTOR C2 fora navigation system (fig.5) -
You can connect a CARIN navigation system (DB type) to this set. Please consult your dealer for
installation details.
————— BLUE CONNECTOR C3 fora CD changer (fig. 6)
You can connect a Philips CD changer (D?B type) to this set (see the mounting instructions for
the CD changer). If required, use the cable mentioned in the illustration.
CONNECTORS D for a portable player (fig. 9)
To increase your listening possibilities you can connect a portable DCC, CD or cassette player to
this set. Cable D must be connected to an output of 750 mV (in most cases the headphone
output of the portable player is suitable).
* Connect plugs D to Left (white) and Right (red) channel on portable player.
* Increase the volume of the portable player to the desired level.
