Block Diagrams, Test Point Overview, and Waveforms
EN 45SDI PDP 6.
6.2.2 PSU 42" SD v2

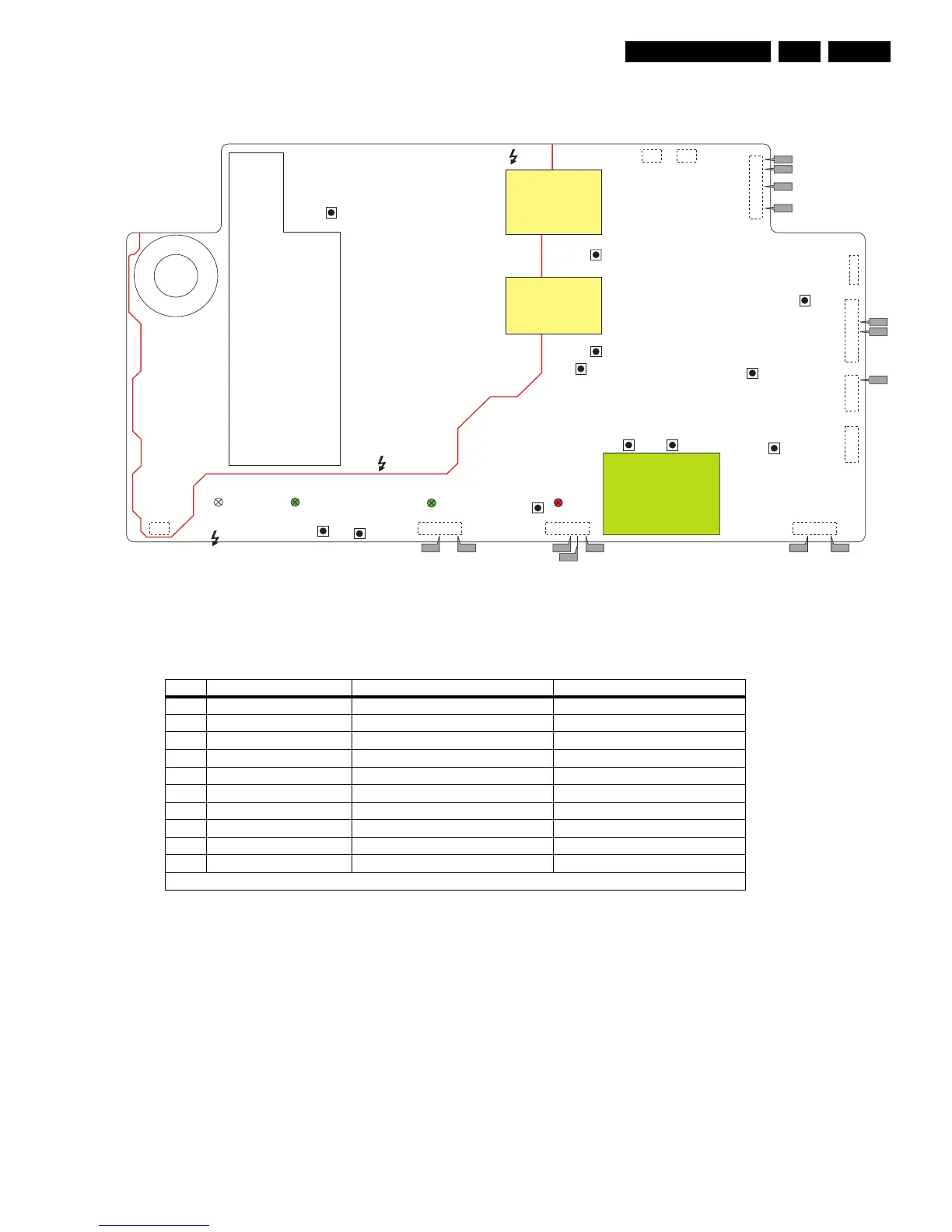

Figure 6-10 PSU layout
Table 6-2 Adjustment voltage level overview
CL 36532011_009.eps
050303
COLDHOT
COLD
HOT
13
8004
GREEN
VS
8001
13
8005
13
8006
1510
8009
13413
8002
1812
5
1
5
10
1
4
5
1
1
9
8001
8011
Protection
Board
8010
8008
8003
P7 P6 P2 P1
P4
P5 P3
P12
P13
9
1
2
5
8
8007
P8
P9
P10
P11
P14
GREEN
8002
GREEN
8003
RED
8004
VE
VA
Vcc
VSCAN
VSET
8V6 VFAN
DV5
PFC
3V3_VSB_S
5V_STBY_S
COLD HOT
No Output voltage (V) Voltage Setting (Nominal Load) Output Voltage Variable Point
1 Vs 87V 78V ~ 92V
2 Va 79V 72V ~ 86V
3 Ve 107V 100V ~ 120V
4 Vset 93V 75V ~ 95V
5 Vscan 79V 65V ~ 85V
6 Vg 15V Fixed
7 D5V 5.2V 5V ~ 5.6V
8 D3V3 3.3V 2.8V ~ 3.7V
Check voltage label on the PDP for correct values.
