Spare Parts List
EN 72 SDI PDP10.
10. Spare Parts List
Notes;
• Determine the SDI part / model number of the PDP
• Find the SDI part number on the actual board to be
replaced.
SDI part number begin with “LJ92” and for the SMPS and
sub SMPS the part number will begin with “LJ44”.
• Find the SDI board part number in the spare parts
overview.
• Find the SDI part number in this overview that matches the
part number that is actually on the original board.
• Cross the SDI board part number to the philips part
number.
• Order the philips part number.
• Note: The appearance of a leaded and lead-fraa board can
be different; the colour of the PWB and also the layout of
the components are sometimes different.

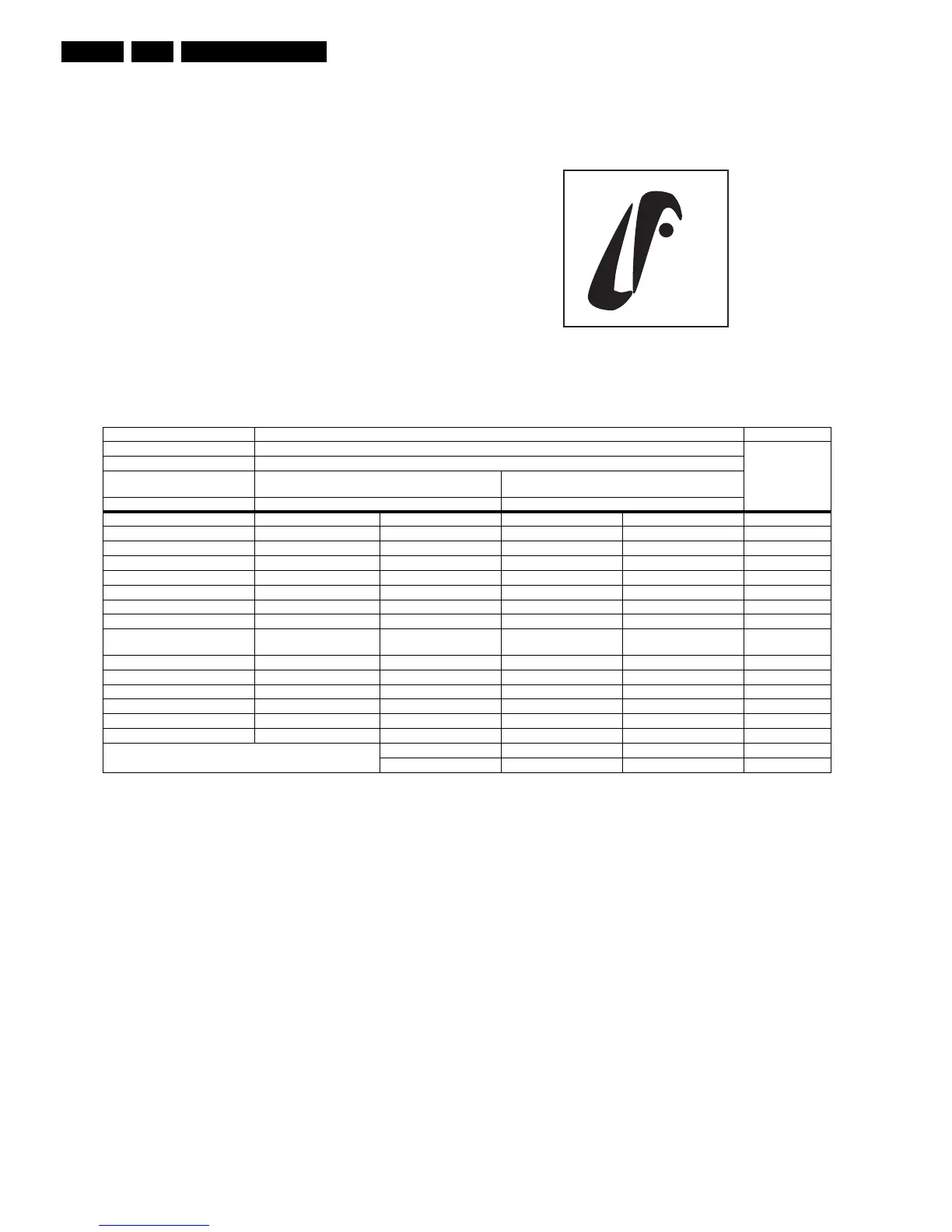

Figure 10-1 Lead-free logo SDI
Table 10-1 Spare parts overview 37” SD v4
Note:
Kit 1: 37" FCR kit concists of 4 boards ( Logic + Y-main + Y and
E buffer)
reference Symptom Cure information TV-05/0006
CORRECTION XI: PDP with "Lead" boards and use of Logic
board (LJ92-01056A):
Replace the Logic board, the Y-Main board, the Y-buffer board,
and the Logic buffer E board together.
These four boards are available in Service Kit number 1 (with
order code 9965 000 33796 (LJ93-00205A)).
The content of Service Kit number 1 is:
* Logic main board 9965 000 29322 (LJ92-01257A).
* Y-Main board 9965 000 32621 (LJ92-01149B).
* Y-Buffer board 9965 000 32619 (LJ92-01147A).
* Logic-Buffer E 9965 000 32616 (LJ92-01138B).
Note:
FCR Kit: = False contouring reduction kit
Note:
Kit 2: 37" FCR kit concists of 2 boards (logic + Y-main)
reference Symptom Cure information TV-05/0006
CORRECTION XI
PDP with "Lead-free" boards and use of Logic board (LJ92-
01145A):
Replace the Logic board and the Y-Main board together. These
two boards are available in Service Kit number 2 (with order
code 9965 000 33797 (LJ93-00204A)).
The content of Service Kit number 2 is:
* Logic main board 9965 000 29322 (LJ92-01257A).
* Y-Main board 9965 000 32621 (LJ92-01149B).
3) PDP with "Lead-free" boards and use of Logic board (LJ92-
01257A):
In case this PDP has a defective board, replace this defective
board only
E_06532_026.eps
081105
PDP type 37" SD v4
PDP 12NC 9322 217 39682 (8204 000 77261)
Lead Free type
being compatible
with Lead type
PWB
PDP model type and version S37SD-YD02
Remarks
Lead type boards being not compatible with lead free type
will not be phased out
Boards Codes for lead type PWB's Codes for lead-free type PWB's
Logic-Buffer (E) LJ92-00976A 9965 000 26187 LJ92-01138B 9965 000 32616 N
Logic-Buffer (F) LJ92-00977A 9965 000 26188 LJ92-01139B 9965 000 32617 N
Logic-Buffer (G) LJ92-01002A 9965 000 26189 LJ92-01140B 9965 000 32618 N
Logic-Buffer (H)- ----
Logic-Buffer (I)- ----
Logic-Buffer (J)- ----
Y-Buffer (up) LJ92-01022A 9965 000 26190 LJ92-01147A 9965 000 32619 N
Y-Buffer (down)- ----
Logic-Board LJ92-01056A (See Kit 1 Note)
LJ92-01145A (See Kit 2 Note)
9965 000 26191 LJ92-01257A 9965 000 29322 N
SUBL - ----
SUBR - ----
X-Board LJ92-01020A 9965 000 26192 LJ92-01268A 9965 000 32620 N
Y-Board LJ92-01021A 9965 000 26193 LJ92-01149B 9965 000 32621 N
SMPS (PSU) LJ44-00084A 9965 000 26194 LJ44-00084B 9965 000 32622 Y
SUB PSU LJ44-00075A 9965 000 25131 LJ44-00075B 9965 000 32623 Y
Kit 1 LJ93-00205A 9965 000 33796
Kit 2 LJ93-00204A 9965 000 33797
