Block Diagrams, Test Point Overview, and Waveforms
EN 47SDI PDP 6.
6.2.4 PSU 42" SD v4

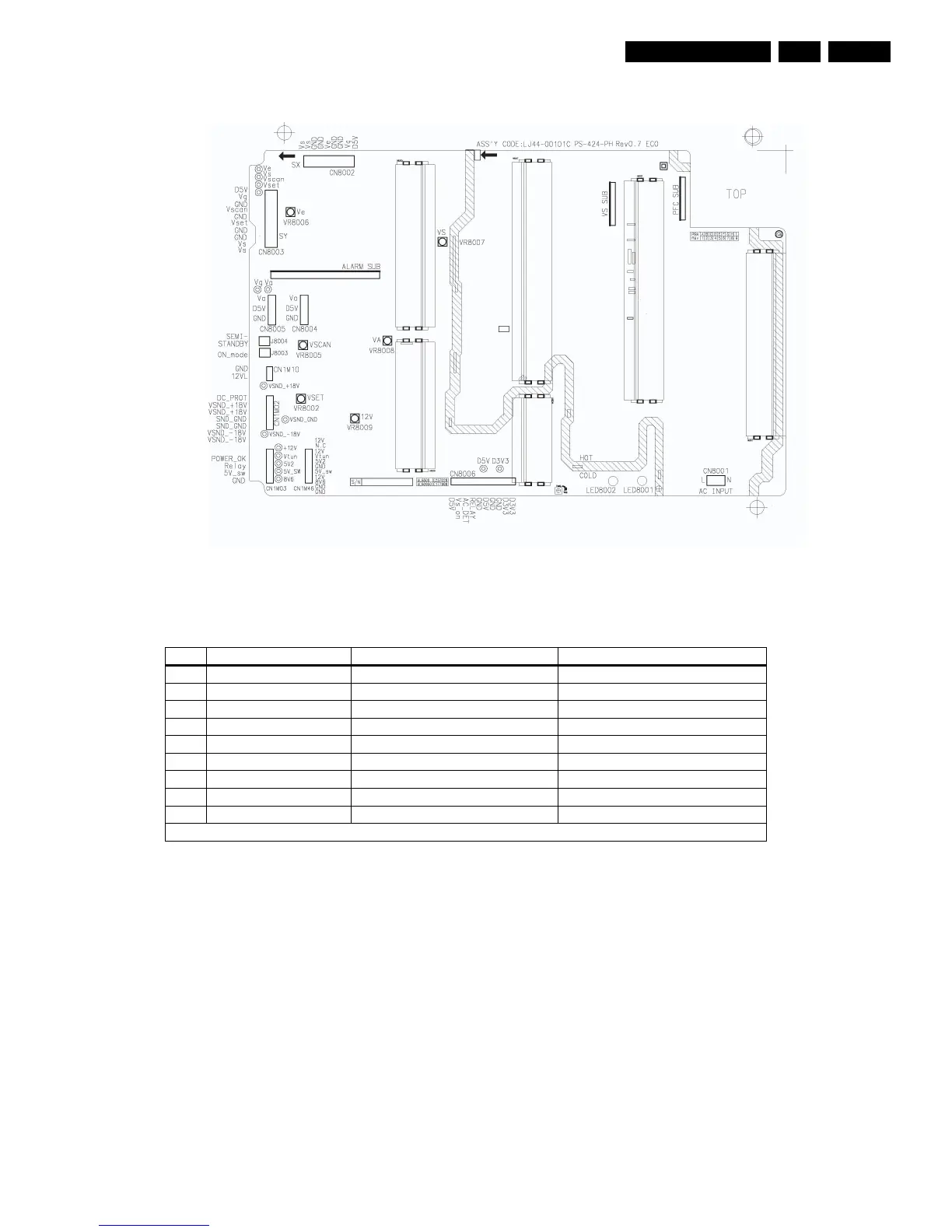

Figure 6-12 PSU layout
Table 6-4 Adjustment voltage level overview
F_14991_061.eps
120206
No Output voltage (V) Voltage Setting (Normal Load) Output Voltage Variable Point
1 VS 207V ± 1% 195V ~ 215V
2 VA 70V ± 1.5% 50V ~ 70V
3 VE 110V ± 1.5% 70V ~ 110V
4 VSET 198V ± 1.5% 180V ~ 210V
5 VSCAN -185V ± 1.5% -170V ~ -190V
6 VSB 5V ± 5% Fixed
7 VG 15V ± 5% Fixed
8 D5VL 5.2V ± 5% Fixed
9 D3V3 3.3V ± 5% Fixed
Check voltage label on the PDP for correct values.
