Alignments
EN 61SDI PDP 8.

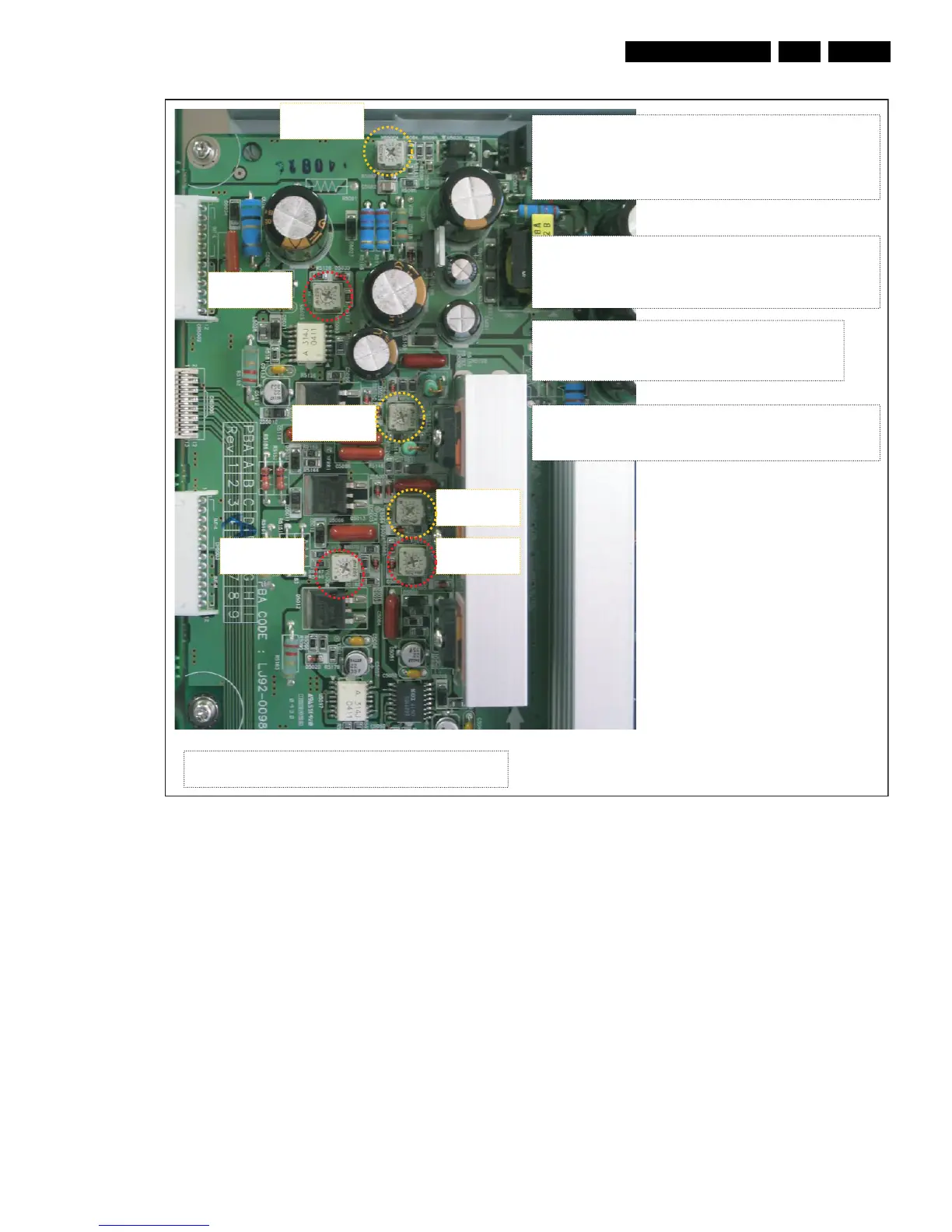

Figure 8-24 Potmeter locations
* Pay close attention to above adjustment
1. VR5004 / Adjustment; Clock-wise to max
2. VR5005/ Adiustment; Clock-wise to max
3. VR5001/ Adiustment; Clock-wise to 4
th
division
4. VR5002 Adjustment: Rising Ramp flat time:
=> Typ. 20usec
6. VR5003 Adjustment: 3th SF Falling Ramp flat time
=> Typ. 10usec
5. VR5006 Adjustment: Falling Ramp flat time
=> Typ. 20usec
VR5004
VR5005
VR5001
VR5003
VR5002VR5006
