11EN
3 Connect
Note

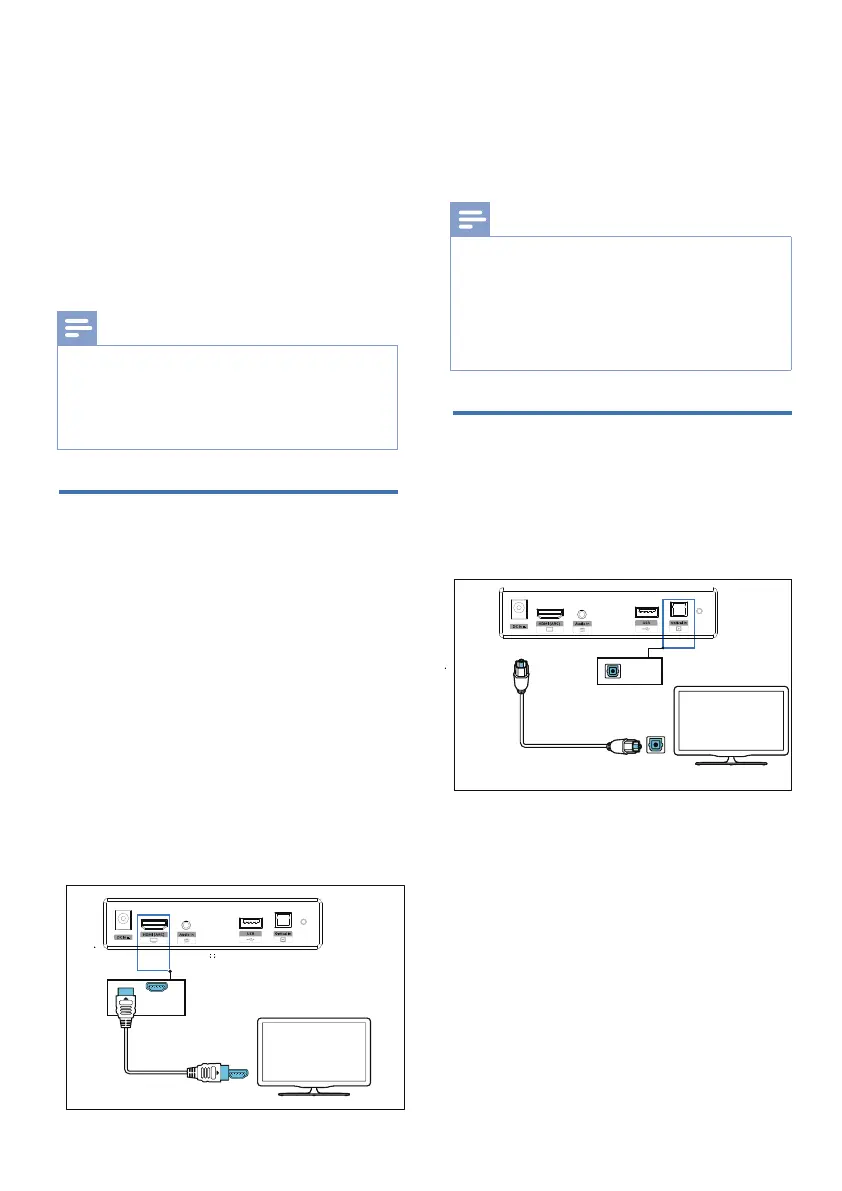

Connect to HDMI ARC
Note
Connect to Optical socket
This section helps you connect your
soundbar to a TV and other devices, and
then set it up.
For information about the basic
connections of your soundbar and
accessories, see the quick start guide.
Your soundbar supports HDMI with audio
return channel (ARC). If your TV is HDMI
ARC compliant, you can hear the TV audio
through your soundbar by using a single
HDMI cable.
1 On your TV, turn on HDMI-CEC
operations. For details, see the TV user
manual
The HDMI ARC connector on the TV
details, see the TV user manual.
2 Using a High Speed HDMI cable,
connect the HDMI ARC connector on
your soundbar to the HDMI ARC
connector on the TV.
• Using an optical cable, connect the
Optical connector on your soundbar
to the Optical out connector on the
TV or other device.
• The digital optical connector might be
labeled Spdif or Spdif out.
• For identi�cation and supply ratings, see the type
plate at the back or bottom of the product.
• Before you make or change any connections,
make sure that all devices are disconnected from
the power outlet.
• Your TV must support the HDMI-CEC and ARC
function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may
function, please refer to your TV user manual.
• Make sure to use the HDMI cables that can
support the ARC function.
HDMI(ARC)
HDMI out
(ARC)
TV
Optical out
Optical
TV
