Philips VR540/39 - Page 30

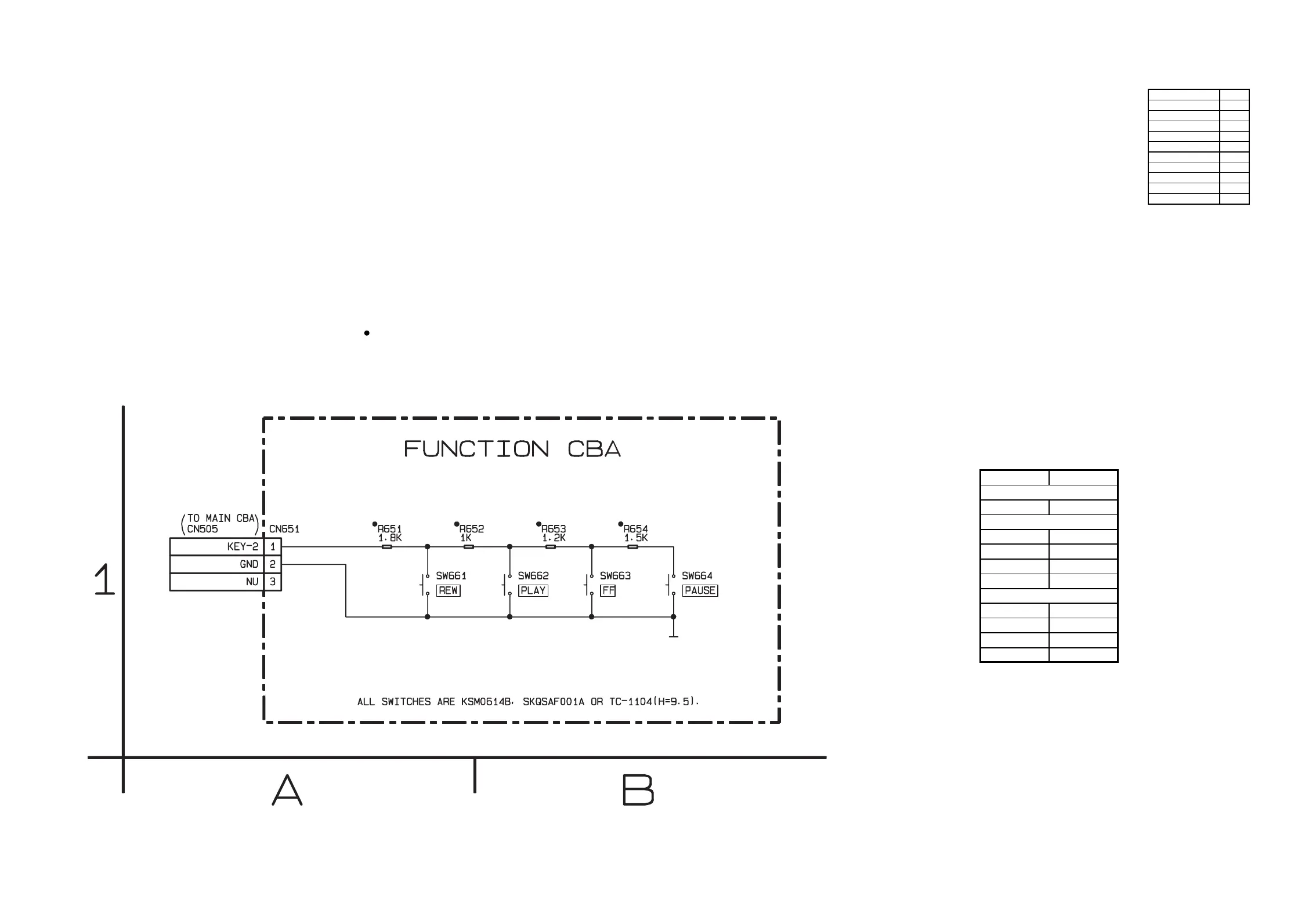

Function Schematic Diagram ( F, G, H, I, J, K, L, M )
1-10-54 1-10-55
HE473SCF
“ “ = SMD
Function Schematic Diagram
Parts Location Guide
Ref No. Position
CN651 A-1
R651 A-1
R652 A-1
R653 B-1
R654 B-1
SW661 A-1
SW662 B-1
SW663 B-1
SW664 B-1
SWITCHES
CONNECTORS
RESISTORS
Comparison Chart of
Models and Marks
MODEL MARK
VR540/39 D
VR540/58 E
VR740/02 F
VR740/07 G
VR740/16 H
VR740/39 I
VR740/58 J
VR742/16 K
VR742/39 L
VR742/58 M
