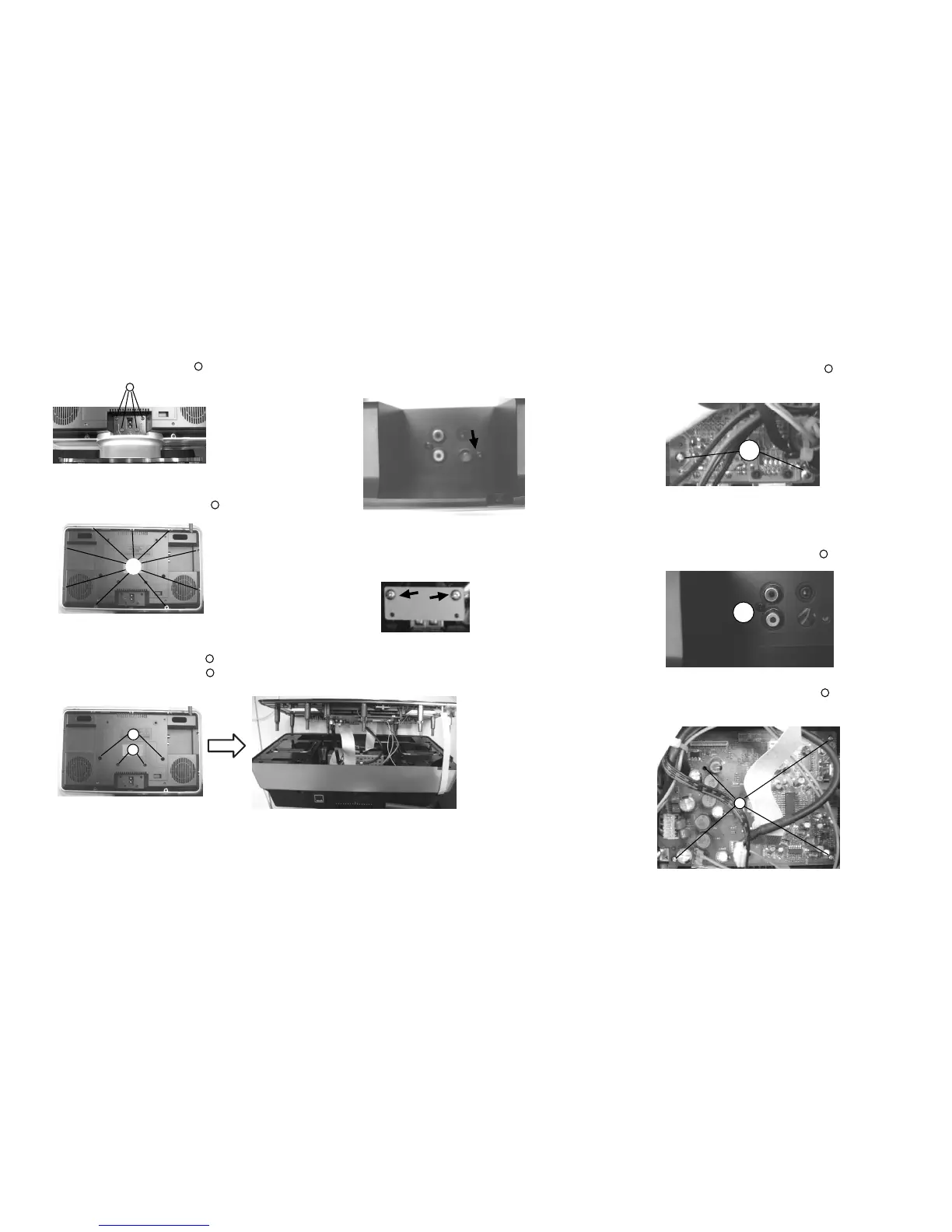

Philips waS7500 - Disassembly Instructions; Unit Disassembly Steps

4 - 1
4 - 1
A
REMOVE SCREW T4 X 8 - 4PCS -
A
1.REMOVE STAND ASSEMBLY
2.REMOVE FLARE COVER
REMOVE SCREWS T3 X 16 - 16PCS -
A
A
3.REMOVE FRONT ASSEMBLY
REMOVE SCREWS T3 X 16 - 2PCS -
REMOVE SCREWS M3 X 8 - 2PCS -
A
B
A
B
4.REMOVE TUNER MODULE
REMOVE SCREW M3 X 10 - 1PCS
5.REMOVE USB SOCKET
REMOVE SCREWS T2.5 X 8 - 2PCS
6.REMOVE IPOD & ETH BOARD
A
A
REMOVE SCREWS T2.5 X 8 - 2PCS -
7.REMOVE AF BOARD
REMOVE SCREW T3 X 10 - 1PCS -
A
A
REMOVE SCREW T2.5 X 8 - 4PCS -
B
B
DISASSEMBLY INSTRUCTION(waS7500)
