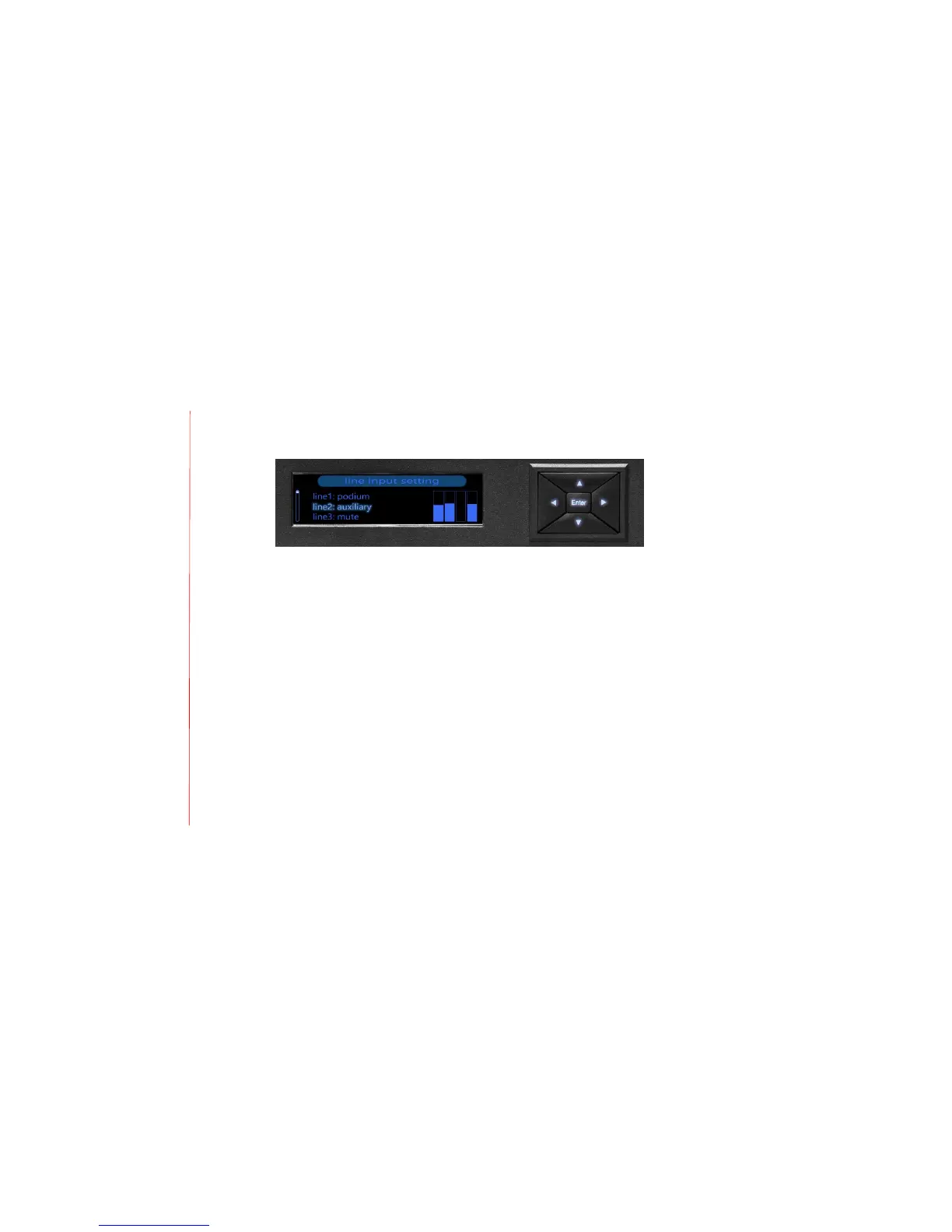

4. Line input setting
This option configures the line-input channels, with three choices offering sound-
reinforcing capability from which to select: mute, auxiliary or podium.
Choose:
o
Podium: to configure a microphone that transmits the user’s voice to local
loudspeakers and to neutralize room echo. Input is added to the result of the
mixing process.
The signal may be played back on local loudspeakers with volume adjusted at the
master level.
o
Auxiliary: when configuring a media-playback device that does not receive local
audio and does not require echo cancellation. Input is added to the result of the
mixing process.
The signal may be played back on local loudspeakers and you may program up to
(4) four separate volume levels:
▪
▪
Level of signal sent to far end
▪
▪
Local loudspeakers – primary mixer output 1 and 2
▪
▪
Local loudspeakers – primary mixer output 3 and 4
