VALUELINE IPC
2643_en_K PHOENIX CONTACT 10

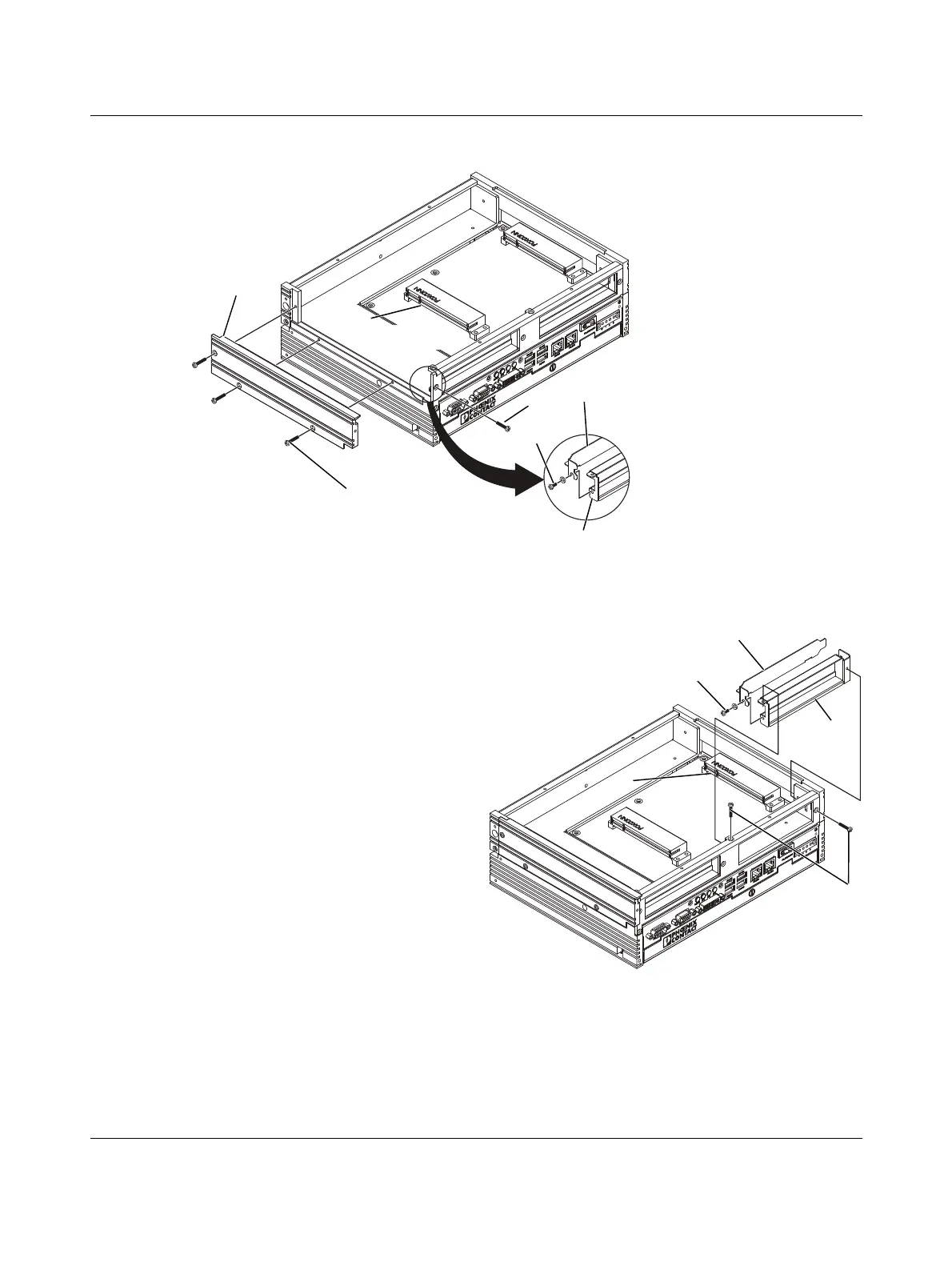

Figure 6 Side panel and bracket removal
c) Line up the card’s connectors with the PCI slot
connector, 6. Carefully push the card into the
connector. After it is fully inserted in the connector,
the card bracket should be aligned with the bracket
frame.
d) Insert the retaining screw and washer, 3, previously
removed and tighten to secure the card.
e) Re-install the left side panel, 2, using the four
Phillips-head screws previously removed in step
a).
– For PCI slot 0:
a) Remove the two Phillips-head screws, 1, holding
the bracket frame, 2. Remove the bracket frame
and bracket, 3, as an assembly.
b) Remove the retaining screw and washer, 4, and
remove the bracket from the bracket frame.
Figure 7 PCI slot 0 removal
