Phoenix 2700-DHP - Loading Film Rolls: Poly Film Types; Loading Film Rolls: Shaft and Bracket Installation

Phoenix 2700 DHP
July 2018
17

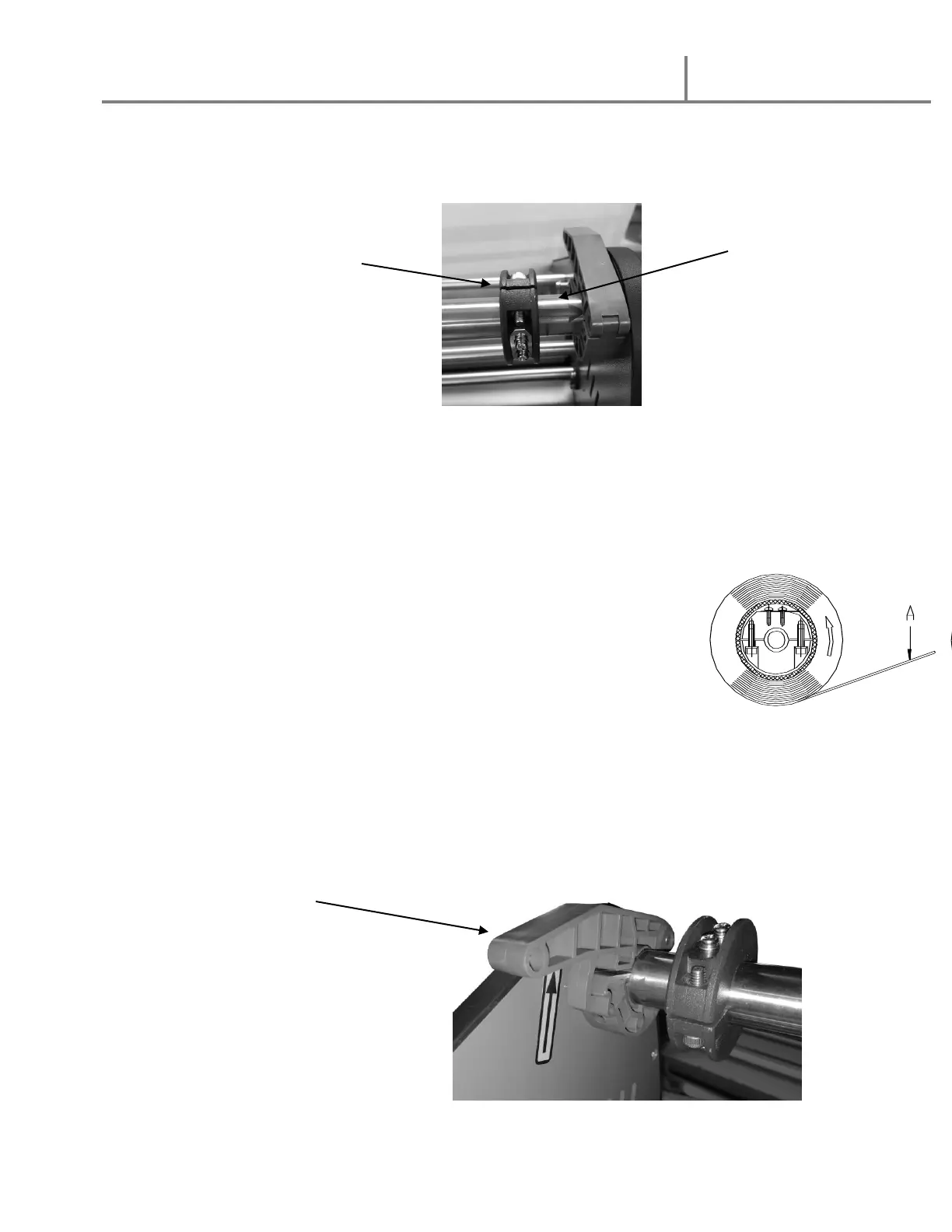

c. Two - 2 ¼” core adaptors slid onto each supply shaft
(See section #21 Using 2 ¼” core adaptors)
3. Determine whether your film is POLY IN or POLY OUT style
a. Side “A” has the adhesive (Poly).
4. Place the supply shafts onto the shaft brackets with the arrows on the shaft
matching the arrows on the left and right-side frames.
Supply shaft
2 1/4” core clip
POLY- IN POLY- OUT
Shaft bracket
