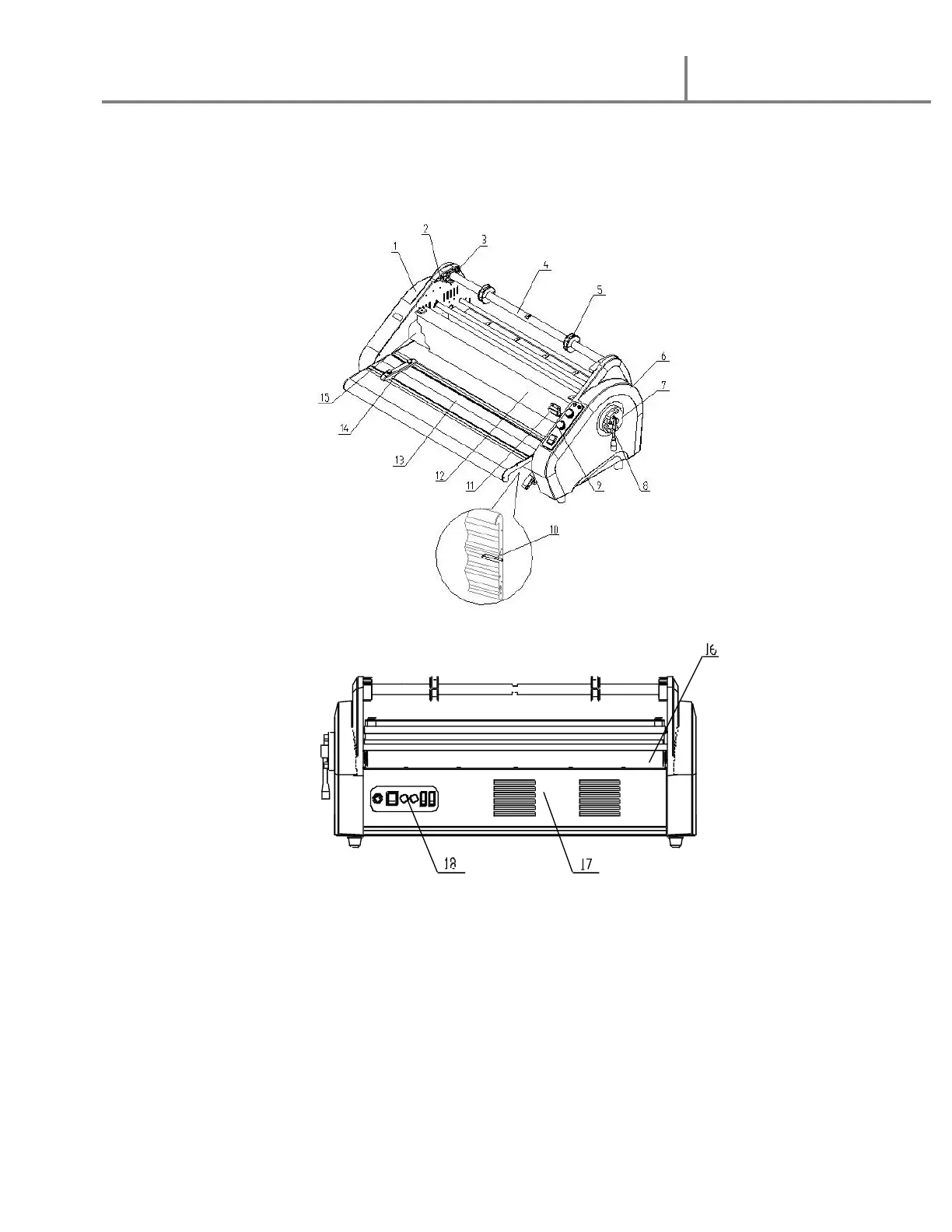

8. System Components
1. Left Side Cabinet 10. Feed Table safety latch
2. Tension Adjustment 11. Safety Shield safety latch
3. Supply Roll Bracket 12. Safety Shield
4. Supply Shaft 13. Feed Table
5. 2 ¼” Core adaptor 14. Side Guide
6. Right Side Cabinet 15. Top Roller
7. Roller Gap Adjustment 16. Bottom Roller
8. Roller Gap Handle 17. Back Panel
9. Control Panel 18. Rear Power Panel
