Unifarm Machinery Corporation
PO Box 38, Wilson, NC, U.S.A.
page 11
SET UP
ASSEMBLING
The mower is delivered in parts to be assembled; for correct assembly, respect the following
instructions:

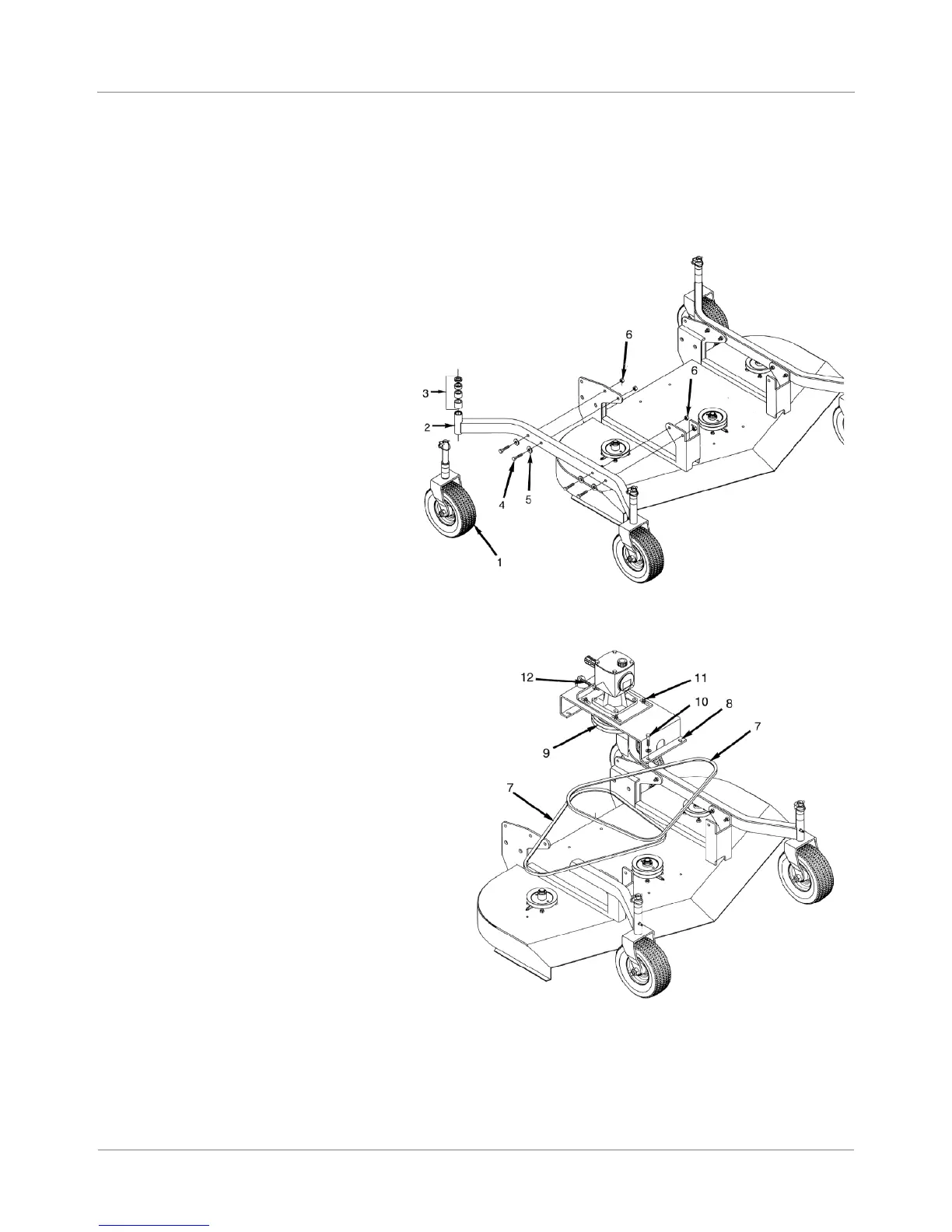

Stage 1
Place the wheel supports (2) on the
machine frame, and tighten the four
bolts (4) with washers (5) and nuts
(6). Insert the four wheels (1) in the
support bushings, and adjust the cut
height by means of the spacers (3).
Stage 2
Place the belts (7) onto the pulleys.
Place the gearbox support (8) on the
machine, insert both belts in the
gearbox pulley guides (9), and
tighten the four mounting bolts (10).
Loosen the screws (11) and adjust
the belt tensioning by means of the
adjustment screw (12); finally
tighten the four screws (11).
