Phoenix M48-S User Manual

Unifarm Machinery Corporation
PO Box 38, Wilson, NC, U.S.A.
page 12
Stage 3

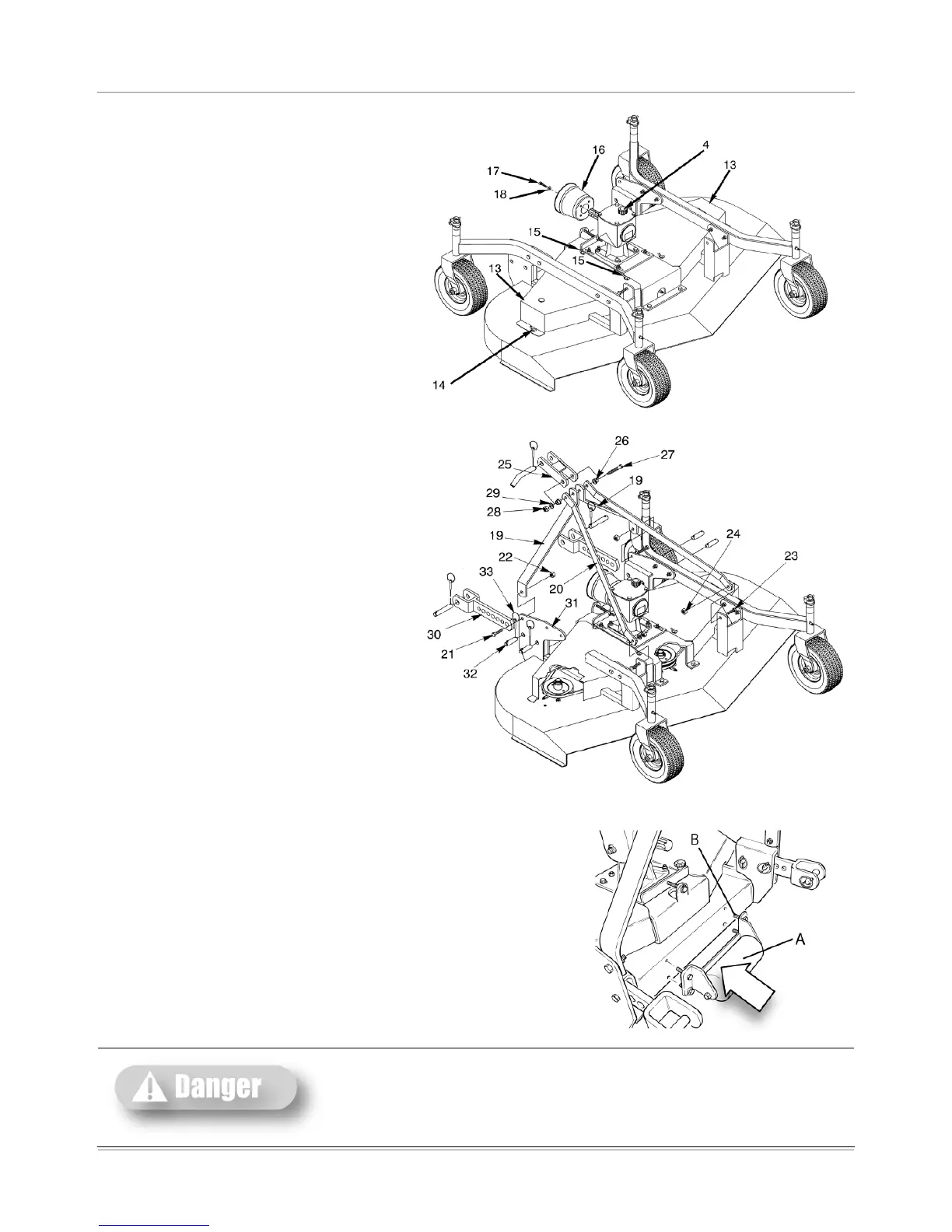

Place the covers (13) on the belts,
tighten the handles on the frame
(14) and on the gearbox support
(15). Anchor the PTO shield (16) by
means of four screws (17) and the
washers (18).
Stage 4
Install the uprights (19) on the
machine and insert the bolts (21),
and relative nuts (22). Install the tie-
rods (20) on the machine and insert
the bolts (23), with relative nuts
(24). Place the top link (25) on both
tie-rods and uprights, by inserting
the spacer (26) between the top link
and the tie-rods; finally tighten the
screw (27) with the nut (28) and the
washer (29). Make sure that the top
link turns freely on the bolt. Finally
tighten the bolts (21) with the nuts
(22) and the bolts (23) with the nuts
(24). Install the lower hitches (30) on
the supports (31); adjust the length
and install the pins (32) anchoring
them by means of the split pins (33).
FRONT ROLLER KIT
On demand it is possibile to install on the front part of the
machine a levelling roller, which improves
the work of the
machine, smoothing small obstacles and roughnesses of the
land. To install the roller on the mower:
- attach the roller A to the mower inserting the bolts B
into the right holes;
- tighten the screws B with the nuts supplied within the
kit.
These activities must be carried out with the engine off,
the power take off disengaged and the hand brake
applied. If needed, lift the equipment and place it on
supports, thus preventing any injuries that might be
caused by a sudden fall of the equipment.

Phoenix M48-S Specifications

General

Brand	Phoenix
Model	M48-S
Category	Lawn Mower
Language	English
