Evaporator coil frosted continuously, low dehumidifying
capacity.
1. Defrost thermistor loose or defective
2. Low refrigerant charge
3. Dirty air filter or restricted air flow
4. Upper housing is not sealed to lower housing
Compressor runs with POWER button OFF.
1. Defective relay
2. Defective control board
3. Upper housing not sealed to tower
5.3 Air Mover
The motorized impeller has a PSC motor and internal
thermal overload protection. If defective, the complete
assembly must be replaced.
1. Unplug power cord
2. Remove the four screws attaching the bottom plate to
the lower housing
3. Disconnect the impeller leads
4. Remove the four screws holding the impeller to the
bottom plate
5. Reassemble the new impeller using the above
procedure in reverse
5.4 Thermistor
The defrost thermistor is attached to the refrigerant
suction line between the accumulator and the evaporator.
To replace thermistor:
1. Unplug the dehumidifier
2. Remove the front
housing
3. Cut cable ties and
remove insulation
and aluminum tape.
4. Remove control
panel
5. Unthread thermistor
from control
housing grommet
6. Detach thermistor
from control board
jumper
7. Reassemble thermistor and dehumidier using the
above procedure in reverse
Figure 8: Picture of
the float safety switch.
5.5 Condensate Pump
The internal condensate pump removes water that collects
in the reservoir.
To replace the condensate pump:
1. Unplug the unit
2. Remove the front housing
3. Unplug the pump wires from the wire harness
4. Remove the condensate hose and the one screw
attaching the pump bracket to the compressor support
5. Replace the pump, hose, wiring, bolts, and housing in
the reverse order
5.6 Float Safety Switch
The float safety switch activates when the water rises too
high in the condensate reservoir. The float safety switch
turns off the compressor until the water level lowers and
disengages the switch.
To replace the float safety switch
1. Unplug the dehumidifier
2. Remove the front housing
3. Unplug the float safety switch wires from the wire
harness
4. Remove the one screw attaching the pump and float
switch bracket to the compressor support
5. Remove the pump from the reservoir and slide out the
float switch from under the compressor support
6. Replace the float, pump, wiring, bolts and housing in
the reverse order
6 www.UsePhoenix.com • sales@UsePhoenix.comToll-Free 1-800-533-7533

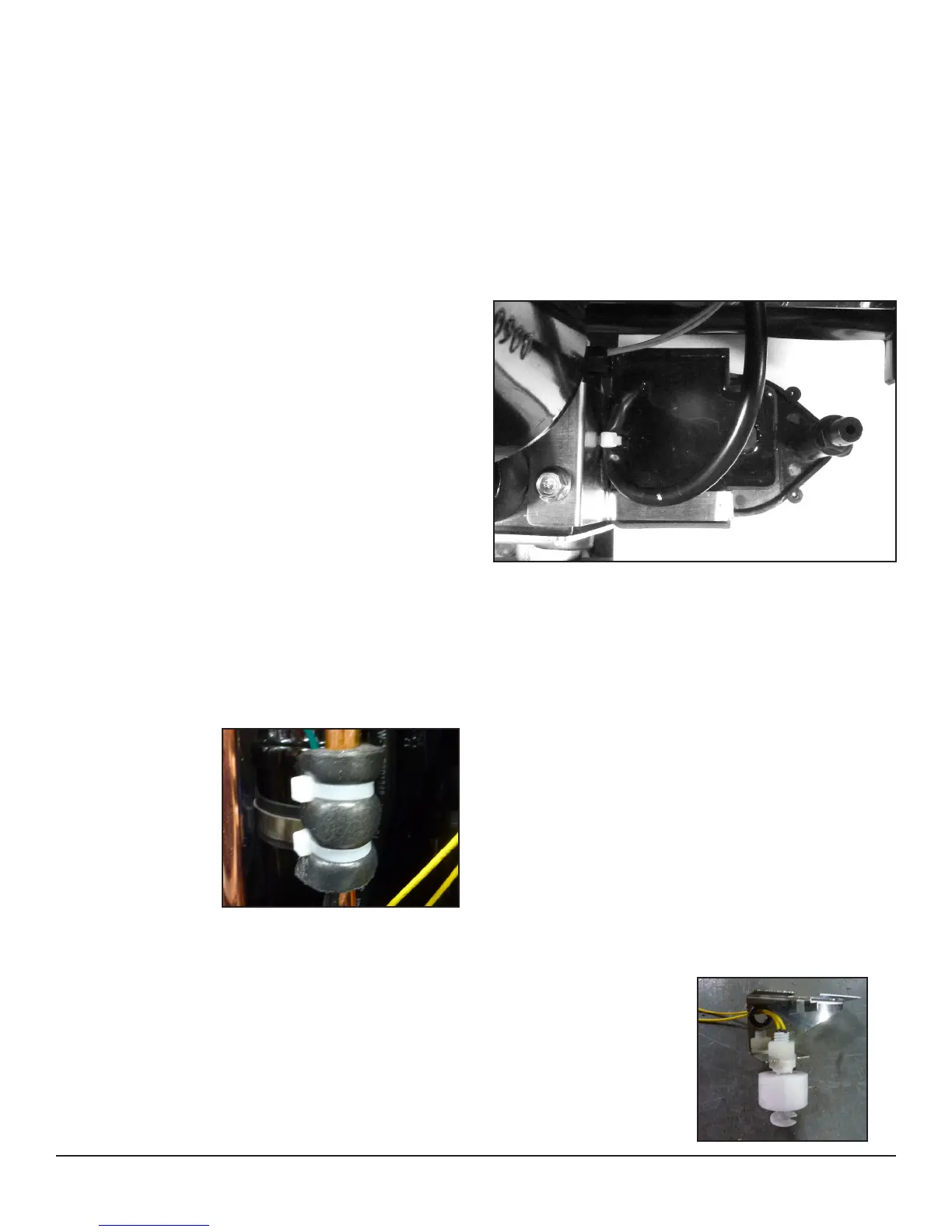

Figure 7: Picture of pump and float switch brackets screw.
Figure 6: Thermistor attached to the
refrigerant line.
