PHONIC CORPORATION
MAX SERIES USER’ S MANUAL
Page 6

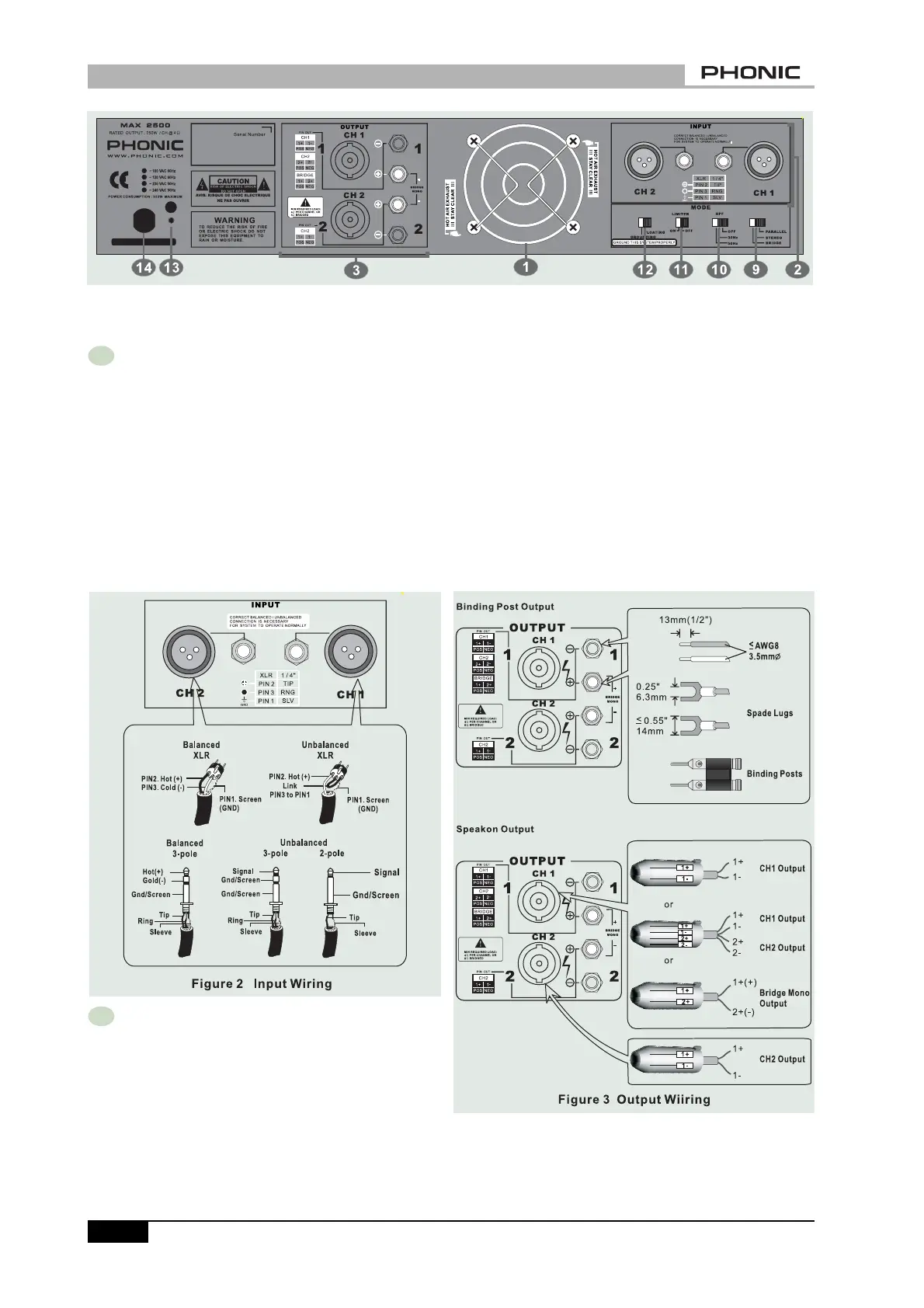

CONNECTIONS
2 INPUT
With balanced XLR and TRS 1/4
”
input jacks, user
could use either XLR or TRS line input jack for con-
nection. These input jacks accept balanced as well
as unbalanced input. When sending unbalanced
signal, the Ring and the Sleeve of the TRS jack
must be connected, the 3rd pin and the 1st pin of
the XLR connector should be connected as well, or
simply just use a TS phone jack for making the
connection (See Figure 2).
3 OUTPUT
Binding posts and speakon connectors make up
the unit’s output section. Loudspeakers can eas-
ily be connected using banana plugs, spade lugs,
CONNECTIONS
bare wires or speakon connector. More people pre-
fer using speakon than other connectors because
it’s the least likely to be disconnected by accident
or electrical shock. Because speakon comes with
four wires inside, you can connect to two speakers
with only one channel output. Becareful when mak-
ing connections since improper connecting could
cause the unit to short circuit. The minimum im-
pedance setting for STEREO and PARALLEL op-
eration is 4ohm while 8ohm is the minimum setting
for BRIDGE MONO (See Figure 3).
aaaaaaaa
aaaaaaaa
aaaaaaaa
aaaaaaaa
aaaaaaa
aaaaaaa
aaaaaaa
aaaaaaa
