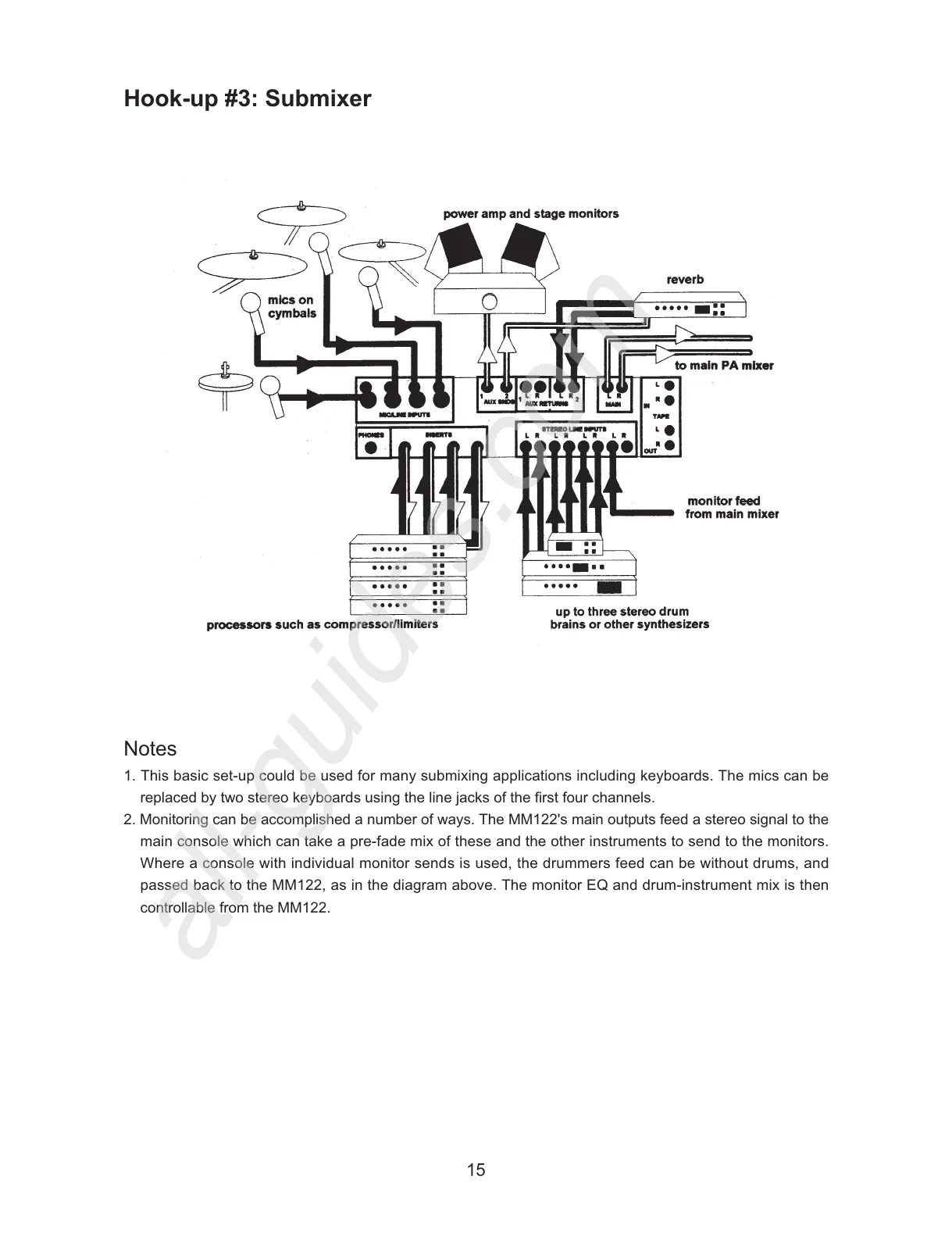

Hook-up #3: Submixer
Notes
1. This basic set-up could be used for many submixing applications including keyboards. The mics can be
replaced by two stereo keyboards using the line jacks of the first four channels.
2. Monitoring can be accomplished a number of ways. The MM122's main outputs feed a stereo signal to the
main console which can take a pre-fade mix of these and the other instruments to send to the monitors.
Where a console with individual monitor sends is used, the drummers feed can be without drums, and
passed back to the MM122, as in the diagram above. The monitor EQ and drum-instrument mix is then
controllable from the MM122.
