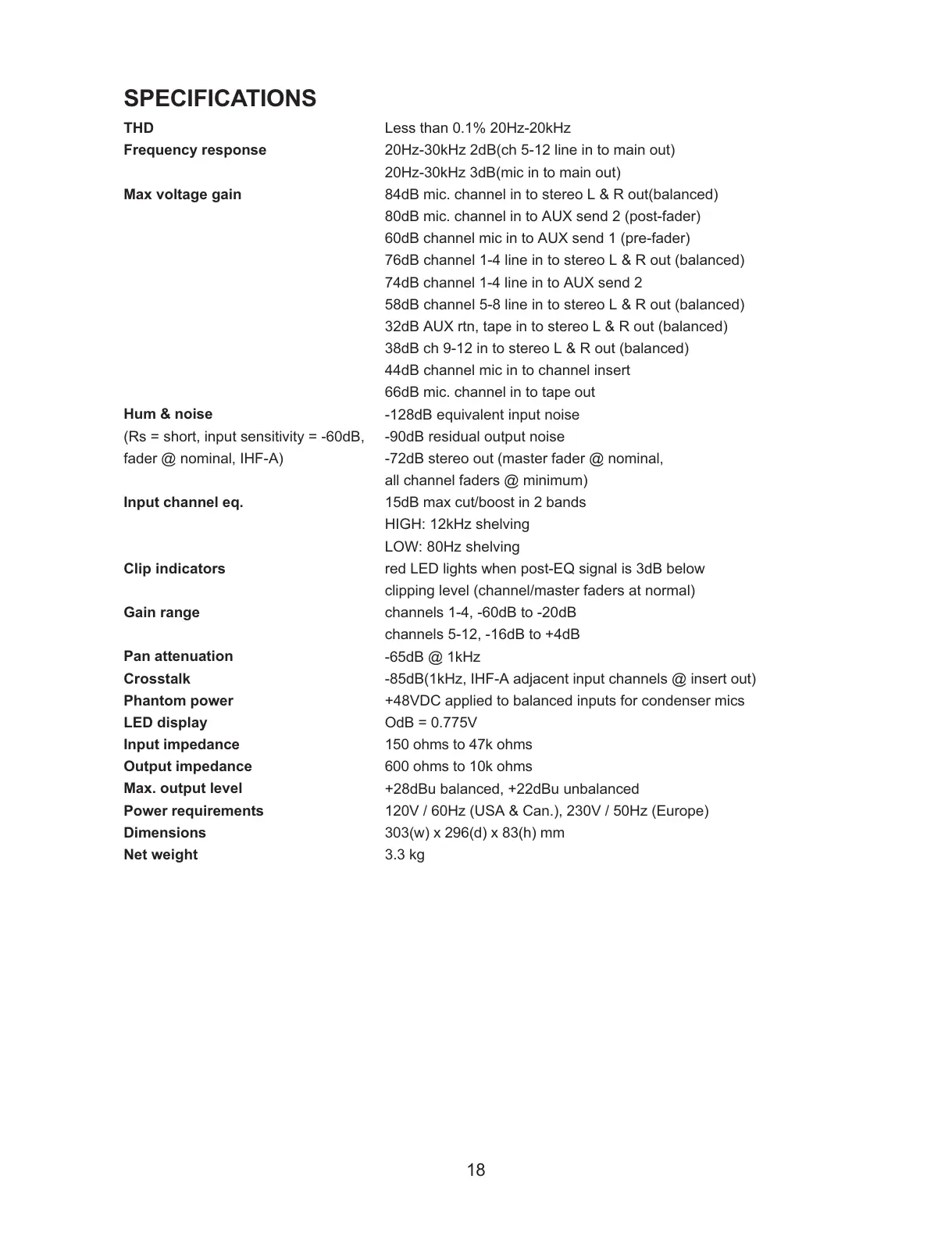

SPECIFICATIONS
THD
Frequency response
Max voltage gain
Hum & noise
(Rs = short, input sensitivity = -60dB,
fader @ nominal, IHF-A)
Input channel eq.
Clip indicators
Gain range
Pan attenuation
Crosstalk
Phantom power
LED display
Input impedance
Output impedance
Max. output level
Power requirements
Dimensions
Net weight
Less than 0.1% 20Hz-20kHz
20Hz-30kHz 2dB(ch 5-12 line in to main out)
20Hz-30kHz 3dB(mic in to main out)
84dB mic. channel in to stereo L & R out(balanced)
80dB mic. channel in to AUX send 2 (post-fader)
60dB channel mic in to AUX send 1 (pre-fader)
76dB channel 1-4 line in to stereo L & R out (balanced)
74dB channel 1-4 line in to AUX send 2
58dB channel 5-8 line in to stereo L & R out (balanced)
32dB AUX rtn, tape in to stereo L & R out (balanced)
38dB ch 9-12 in to stereo L & R out (balanced)
44dB channel mic in to channel insert
66dB mic. channel in to tape out
-128dB equivalent input noise
-90dB residual output noise
-72dB stereo out (master fader @ nominal,
all channel faders @ minimum)
15dB max cut/boost in 2 bands
HIGH: 12kHz shelving
LOW: 80Hz shelving
red LED lights when post-EQ signal is 3dB below
clipping level (channel/master faders at normal)
channels 1-4, -60dB to -20dB
channels 5-12, -16dB to +4dB
-65dB @ 1kHz
-85dB(1kHz, IHF-A adjacent input channels @ insert out)
+48VDC applied to balanced inputs for condenser mics
OdB = 0.775V
150 ohms to 47k ohms
600 ohms to 10k ohms
+28dBu balanced, +22dBu unbalanced
120V / 60Hz (USA & Can.), 230V / 50Hz (Europe)
303(w) x 296(d) x 83(h) mm
3.3 kg
