The LED will come on if the channel
receives a signal input higher than -
20 dBu. Both the -20 dBu and the
PFL share the same indicator.
PFL
Pre-Fader-Listening, when the PFL
switch is pressed, the pre-fader sig-
nal will be fed to the control room/
headphone output, where it replaces
the selected monitor source. PFL is
very useful for a mixing engineer to
monitor individual channels without
affecting the main mixes, for mak-
ing adjustments or tracing problems.

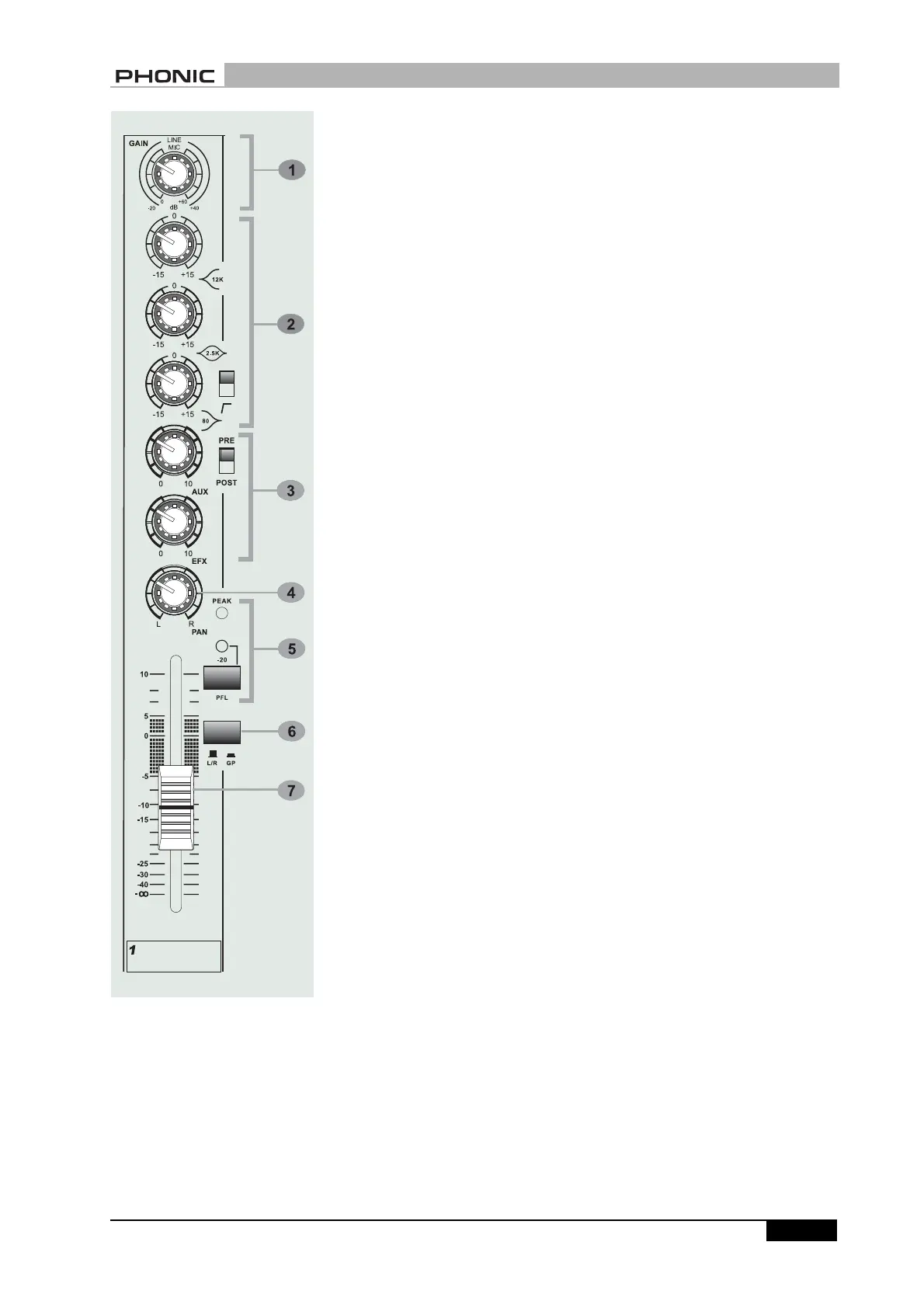

6 L/R OR GP (ROUTING SWITCH)
The input channel signals may be
routed in stereo to the main output
(L/R) or pairs of Group busses (1-2),
by pressing the routing button. The
PAN will also affect the signal route.
Turning extremely left can only feed
Group 1 and extremely right only
feed Groups 2.
7 CHANNEL FADER
A long-throw 60mm linear fader de-
termines the proportion of the chan-
nel in the mix and provides a clear
visual indication of channel level.
To Next Page
