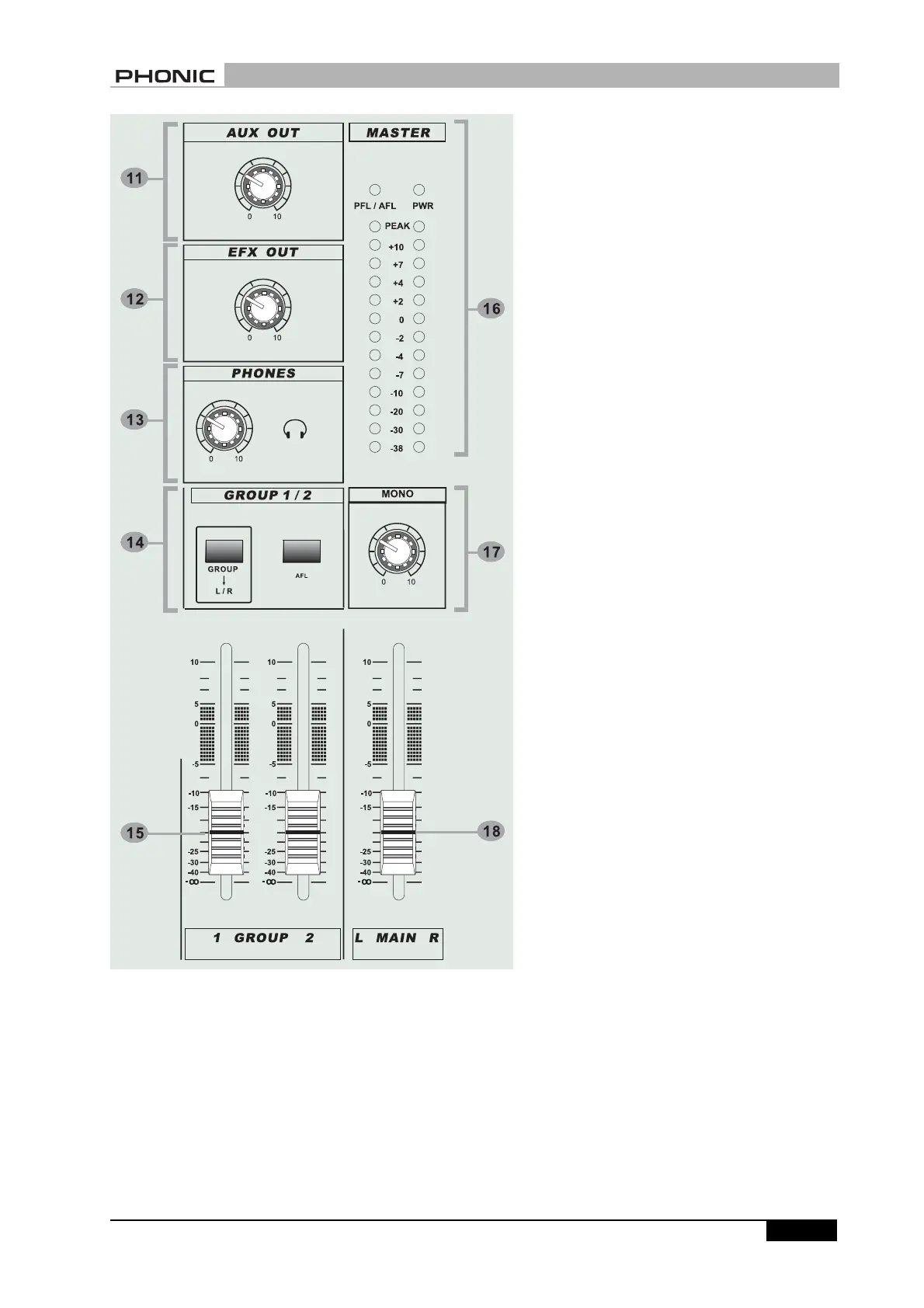

11 AUX OUT
This control routes a mono sum of the input
channel signal to the AUX bus. It is sepa-
rate from the master L/R outputs and can
therefore build additional mix output for the
stage monitor, effect unit or extra loudspeak-
ers.
12 EFX OUT
This control routes a mono sum of the input
channel signal to the EFX bus. It is sepa-
rate from the master L/R outputs and can
therefore build additional mix output for the
effect unit.
13 PHONES
This knob controls the CTRL RM/headphones
level output.
14 GROUP TO L/R & AFL
GROUP TO L/R
You can assign the GROUP 1/2 signal to
MAIN L/R. If you depress the L/R or GP but-
ton of any input channel then the input sig-
nal will be fed to GROUP 1/2. Moreover, if
you would like the input channel signal to be
mixed by the MAIN L/R, then it is nessary to
depress the GROUP 1/2 to L/R button.
AFL
This AFL button can send the GROUP 1/2
signal to CTRL RM or PHONES for monitor-
ing; this signal will then be affected by
GROUP 1/2 faders.
15 GROUP 1/2 FADER
A long-throw 60mm linear fader determines
the proportion of the group signal in the mix
and provides a clear visual indication of chan-
nel level.
