Phonic MM1705a - Stereo Channels 6-11

PHONIC CORPORATION
Page 12
MM1705a USER ’ S MANUAL

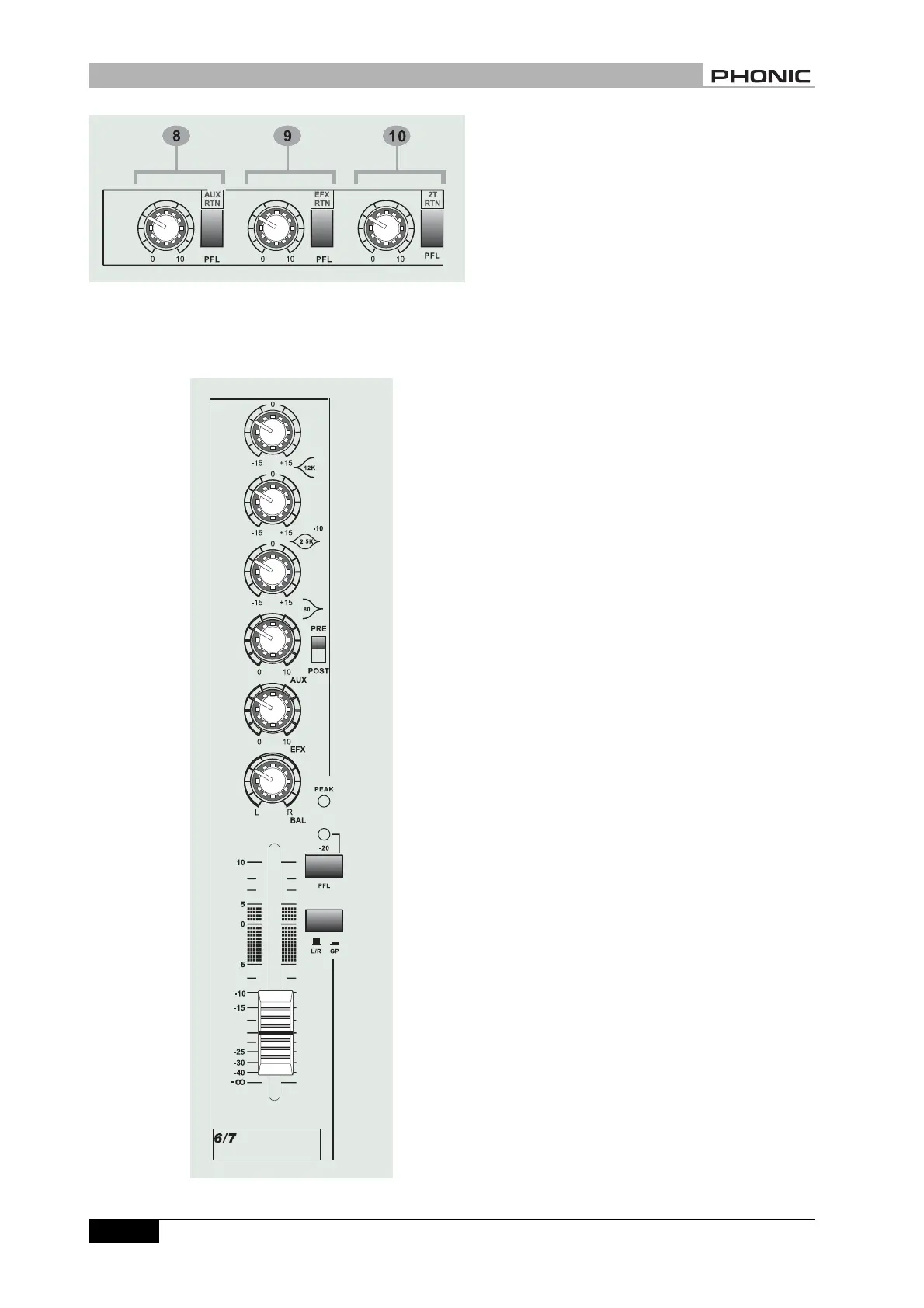

CHANNEL STRIP DESCRIPTION
These 3 stereo input channels are designed
for a stereo line level signal, from a stereo
source such as keyboards, drum ma-
chines, synths, hi-fi equipment or DAT play-
ers. They have the same function as mono
channels except for GAIN setting and bal-
ance adjustment. These high impedance
inputs accept 2-pole phone jacks. Use
these inputs for keyboards, drum ma-
chines, synths, tape machine or process-
ing units. If the source signal is mono
please plug into the left channel socket
only. All of functions are the same with the
mono input channel strip.
8 AUX RTN
The AUX RTN control section includes one
knob and one PFL push button. The knob
controls the AUX RTN level. When you
would like to monitor the signal of AUX RTN,
simply depress the PFL button, the input
signal will be fed into CTRL RM.
9 EFX RTN
The EFX RTN control section includes one
knob and one PFL push button. The knob
controls the EFX RTN level. When you would
like to monitor the signal of EFX RTN, sim-
ply depress the PFL button, the input sig-
nal will be fed into CTRL RM.
10 2T RTN
This knob controls the level sent to the mas-
ter L/R. When you would like to monitor the
signal from the 2T RTN, simply depress the
PFL button, the input signal will be fed into
CTRL RM.
STEREO CHANNELS 6-11
