2.3 PASSIVE FULL RANGE WITH ACTIVE-CROSSOVER SUB-WOOFER
(Ref:Figure 3)
PCR 2213 is very suitable for sub-woofer application and is capable of this system with one unit. The cross-
over frequency is always low at 80~200Hz. Following a table to list some popular configuration:
PCR 2213 has a sub- switch in the rear panel. This switch will sum the low frequency part of both channels
and send it out from both low outputs. When you are using this type of speaker system with one or more sub-
woofer boxes, it is recommended to engage the switch and put all the woofer boxes together in the center line
between the stereo speakers.

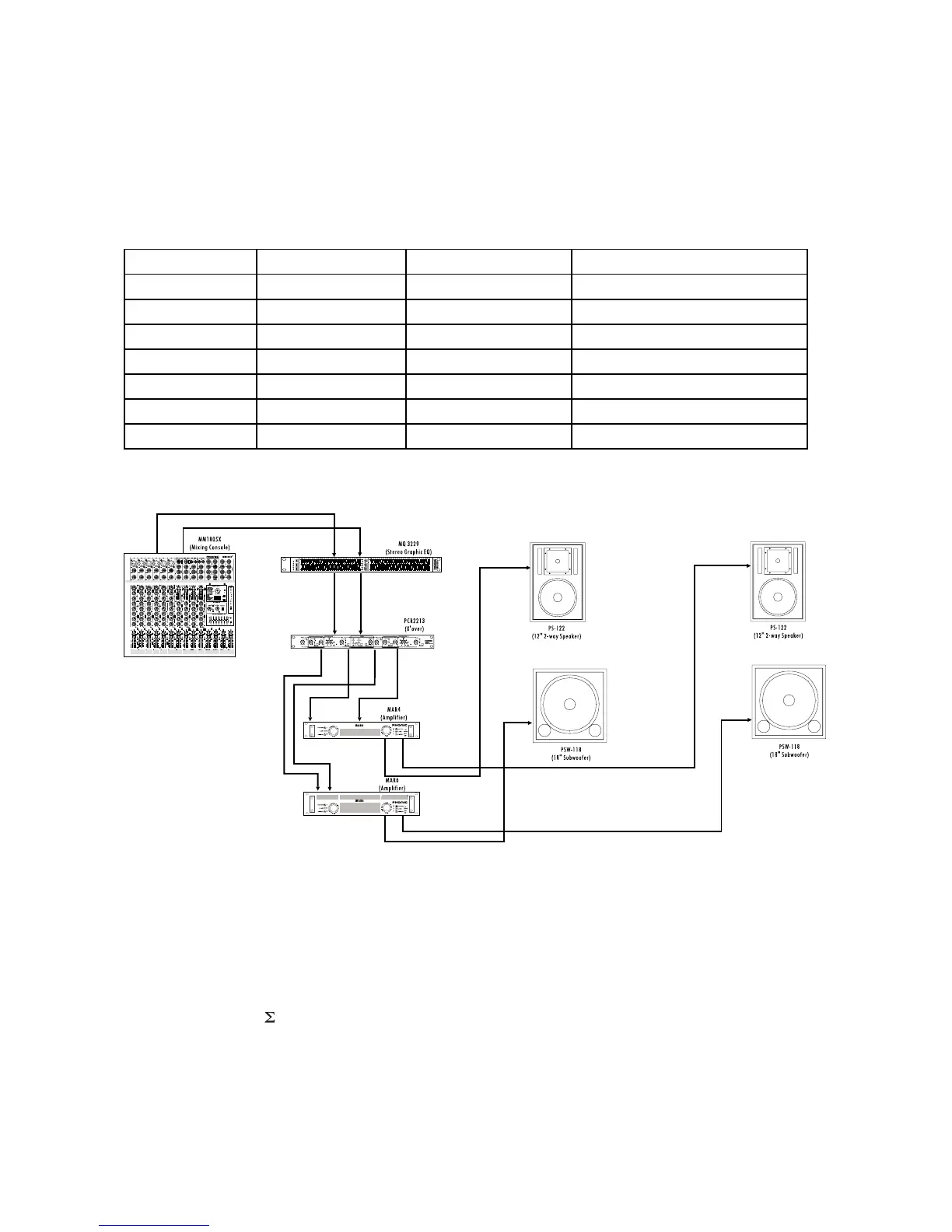

Figure 3:Typical Passive 2-way + Subwoofer
To Next Page
