44
Default Display
The display shows the last mode the 2020PROPlus used. The resolution of the
display changes with the magnitude of the reading. A reading of 0 to 99.9 will be
displayed with a resolution of 0.1 ppm. A reading greater than 99.9 will be shown
with a resolution of 1 ppm. The meter will display concentrations up to 10,000 ppm.
The 2020PRO
Plus can power up in Logging Off, Tag, or Interval mode depending
on the mode that was set by the previous user. The current mode is shown in the
upper right-hand corner of the display.

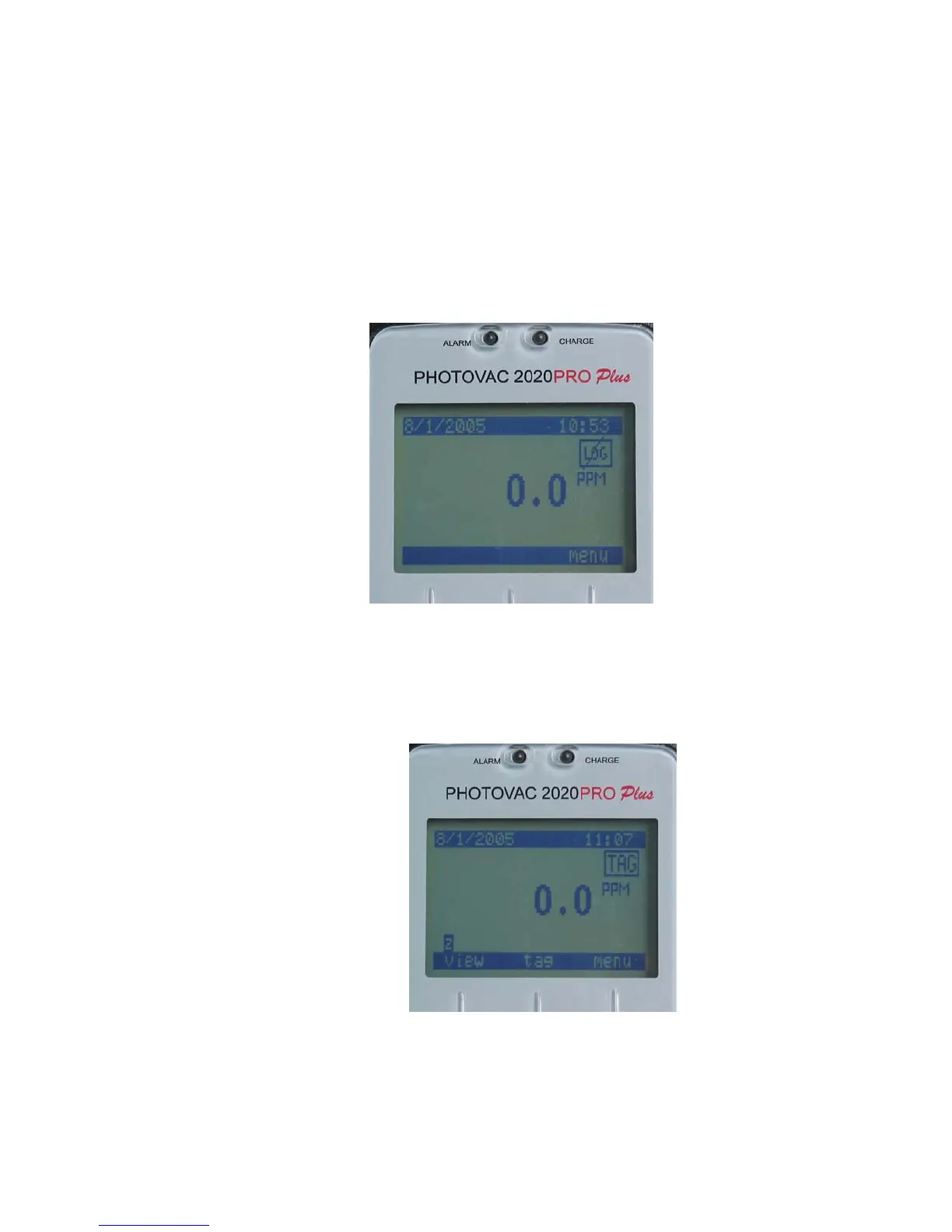

Figure 9. Logging Off Mode Display
Figure 10. Tag Mode Display
