phytron LSS 26 - Electrical Connection

How to Handle In-Vacuum and Cryo Stepper Motors
16 MA 1203-A010 EN
6 Electrical Connection
Phytron in-vacuum and Cryo stepper motors are 2-phase stepper motors. The windings
can be connected differently. Standard is 4-leads wiring with parallel connected windings
for bipolar control mode.

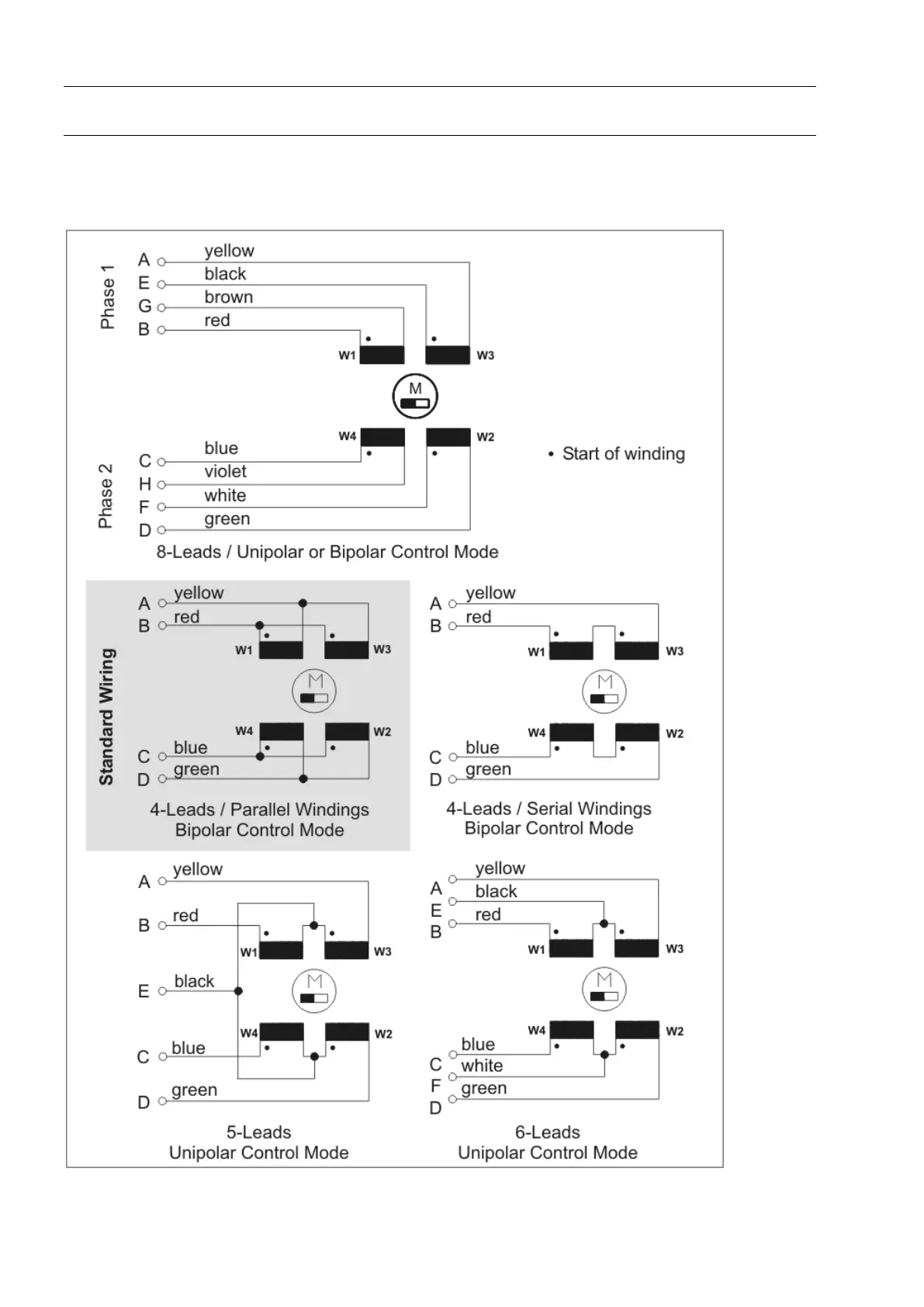

Fig. 6 : Connection schemes for Phytron stepper motors
