phytron LSS 26 - Pt100 Resistor Sensor

How to Handle In-Vacuum and Cryo Stepper Motors
22 MA 1203-A010 EN

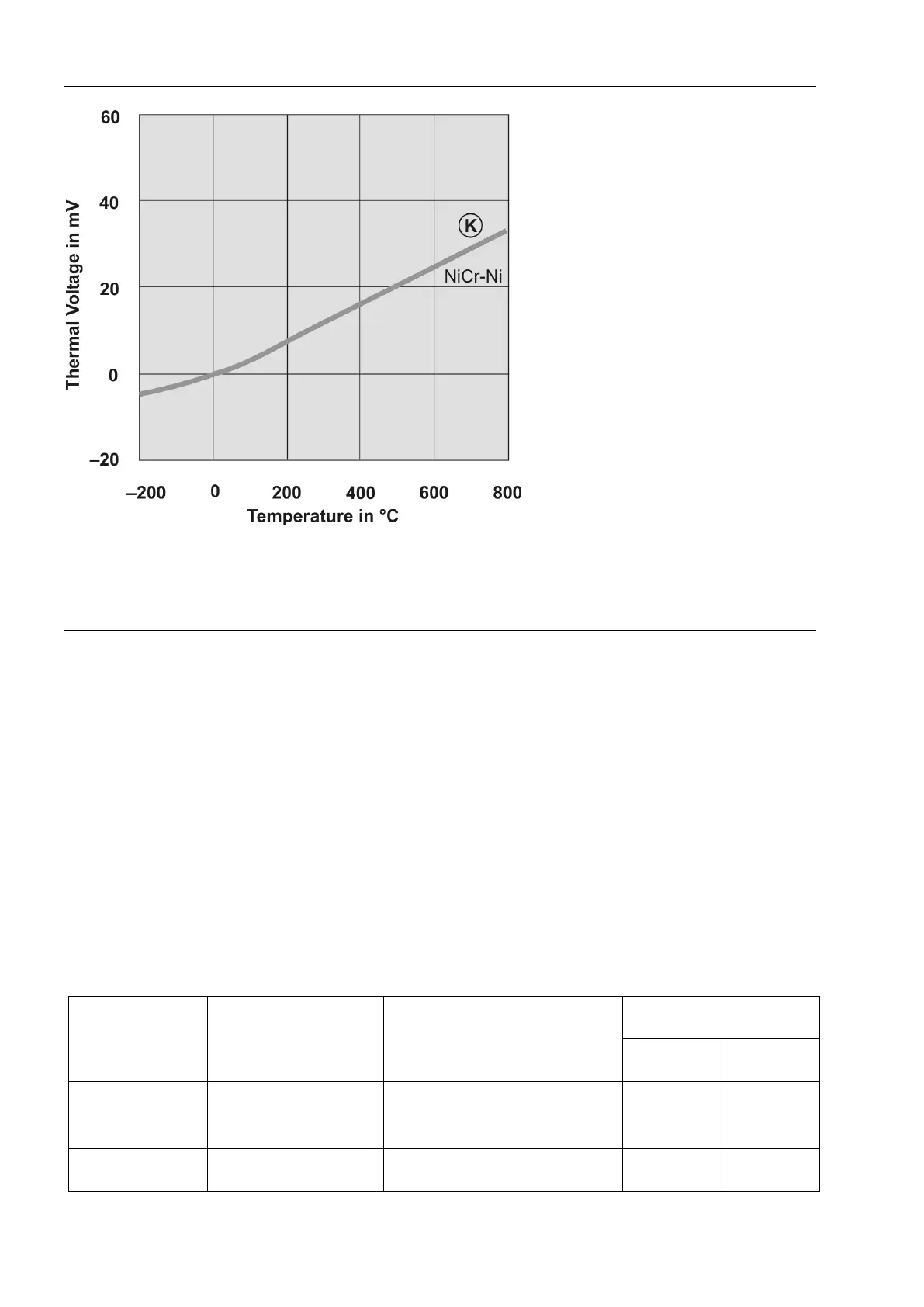

Fig. 8 : Type K thermal element characteristic curve
7.2 Pt100 Resistor Sensor
Pt100 resistor sensors are used with VSS in-vacuum and Cryo stepper motors in the tem-
perature range –200 to +300 °C.
These precise sensors are used in extreme industrial and laboratory conditions. They con-
sist of a wound resistance wire that is mounted and supported inside a cylindrical ceramic
case.
Rated resistance at 0 °C: R
0
= 100 +/– 0.04 
Resistance at 100 °C: R
100
= 138.5 +/– 0.1 
The resistance values for other temperatures can be found in the fundamental value tables
for Pt100 resistance sensors.
Accuracy class: T = 1/3 of class B acc. to DIN EN 60751
In accuracy class T the valid scope is reduced to –70 to +250 °C.
For temperatures below –70 °C class B is valid.
Tolerance
class
Scope
Tolerance in K
Tolerance
t = 0 °C
t = 100 °C
Class T
(1/3 Class B)
–70 ... +250 °C
+/– (0.10 K + 0.0017 x |t|)
+/– 0.10 K
+/– 0.27 K
Class B
–200 ... +850 °C
+/– (0.30 K + 0.0050 x |t|)
+/– 0.3 K
+/– 0.80 K
