The platinum sensors are connected with four leads in order to enable independent meas-
uring of the wire resistance. The leads are insulated with Kapton foil and marked with
PTFE tubes (see picture below). Before placing the motor into operation in UHV vacuum,
the PTFE tubes should be removed, see section 6.2.

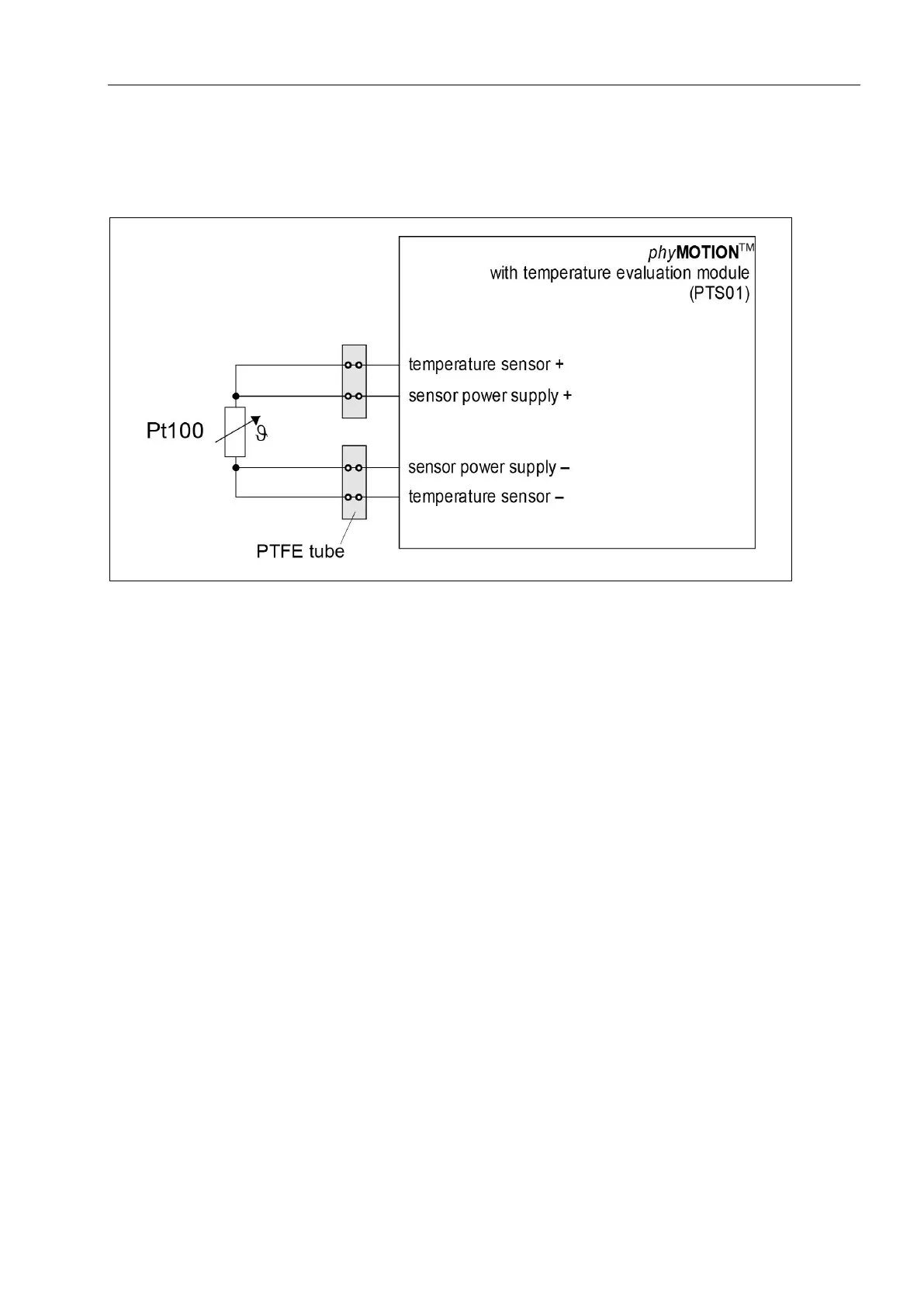

Fig. 9 : Pt100 connection to a control unit with temperature monitoring module
