Installation
Manual piCOMPACT
®
23 SMART IO-Link Ready 2 channel Page 13/24

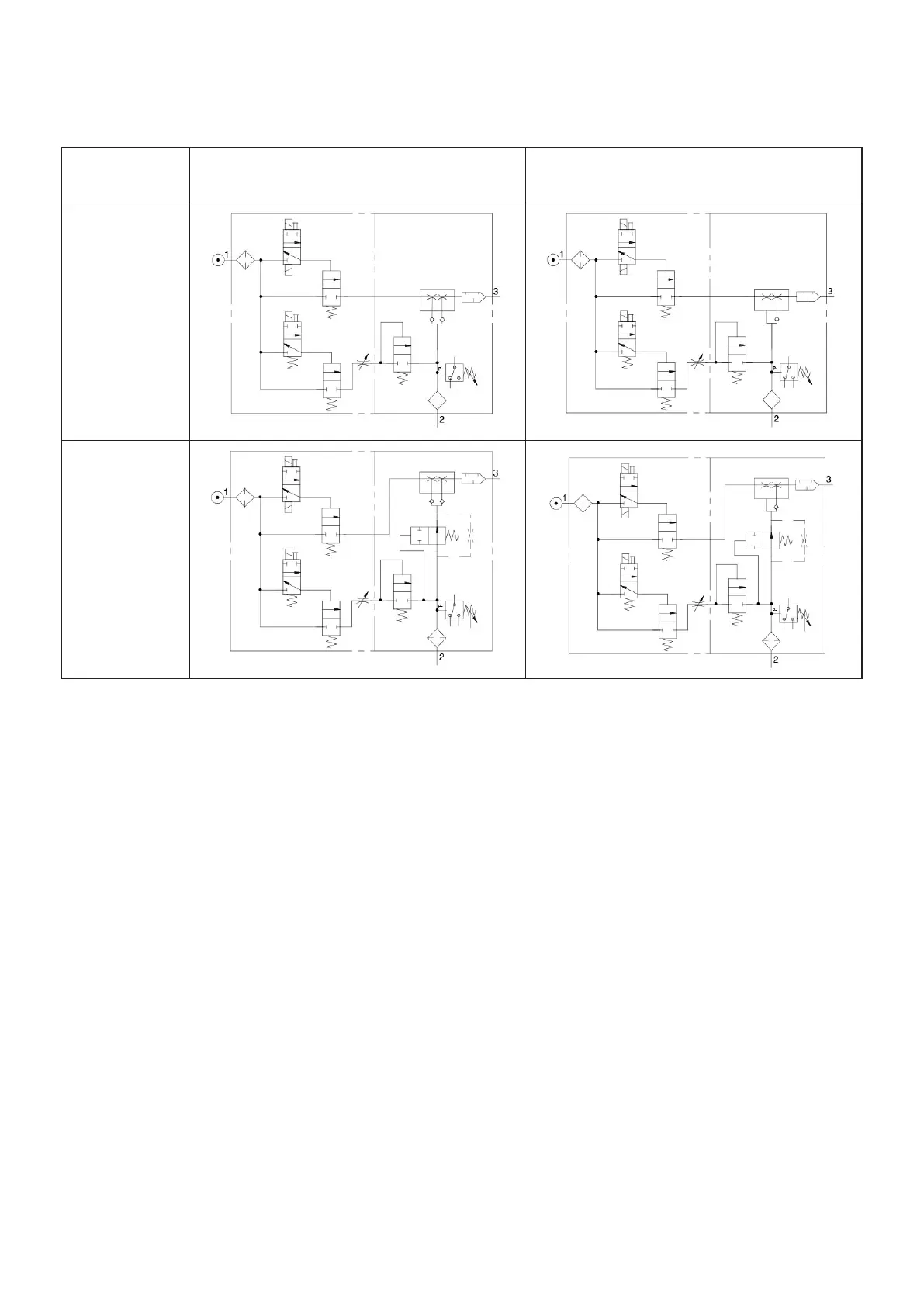

4.2.4 Pneumatic diagram, bi-stable
Figure 6 1. Compressed air, 2. Vacuum, 3. Exhaust.
Vacuum bi-stable Vacuum bi-stable
& Blow-off NC & Blow-off NC + PVH / ABO
Without
non-return
valve
With
non-return
valve
