PIAB piCOMPACT 23 SMART - 4.2.5 Pin Configuration for IO-Link Ready

ManualpiCOMPACT
®
23 SMART IO-Link Ready 2 channelPage 14/24
Installation
4.2.5 Pin configuration for IO-link ready,
standard IO connections
Pin 3-8 can be configured in the menu system to do
other functions. See the manual for your
configuration on www.piab.com for more information.
1
7
8
6
5
4
3
2
M12 8p
1 WH
2 BN
3 GN
4 YE
5 GY
6 PK
7 BU
8 RD
Class A

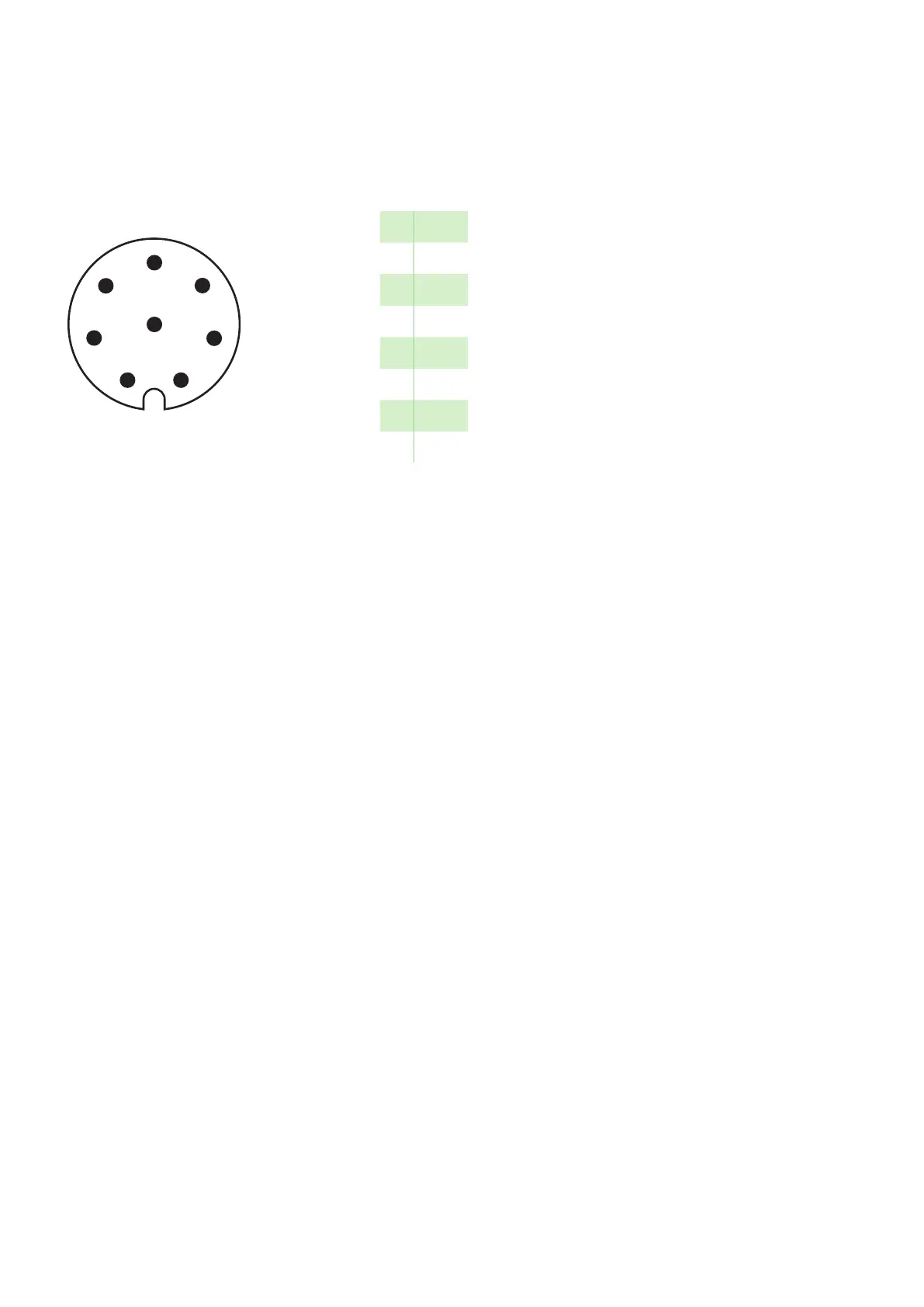

Figure 7 Pin configuration for IO-Link Ready.
