TYRES MUST BE REPLACED WHEN THE TREAD REACHES THE WEAR LIMITS
SET FORTH BY LAW.
Characteristic
Tyre pressure (front wheel)
Front wheel: 2.1 bar
Tyre pressure (rear wheel)
Rear wheel: 2.3 bar
Tyre pressure (rear wheel with rider and passenger)
Rear wheel (rider and passenger) 2.5 bar
03_08
Spark plug dismantlement (03_08, 03_09)
Proceed as follows:

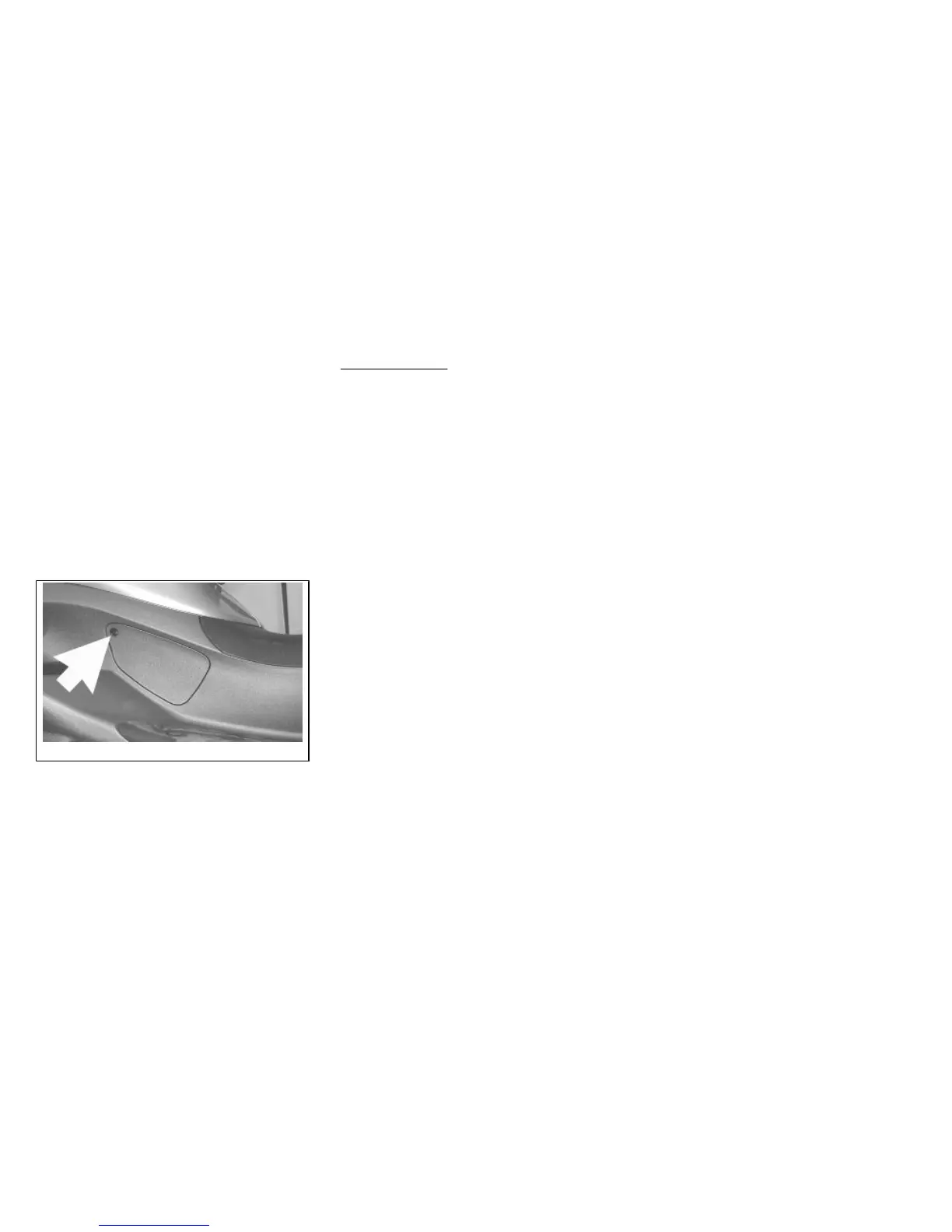

1. Remove the access cover over the spark plug on the right-hand side of the scooter
and reach into the spark plug with your hand;
2. Disconnect spark plug HV wire cap «A» ;
3. Unscrew the spark plug using the spark plug wrench supplied;
4. When refitting, place the spark plug into the hole at the required angle and tighten
by hand until it is finger tight;
5. Use the wrench only for final tightening of the spark plug;
6. Place hood "A" fully over the spark plug.
39
