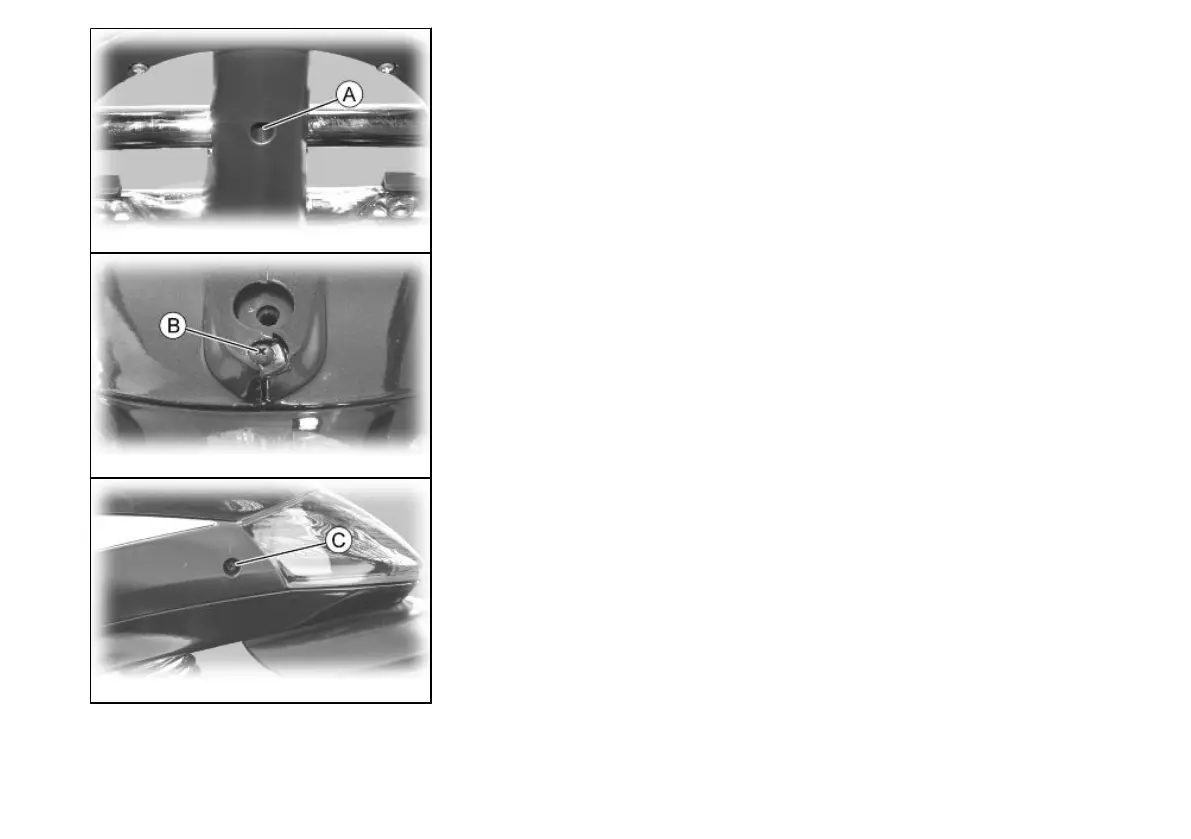

Rear optical unit (03_28, 03_29, 03_30, 03_31, 03_32)
To access the bulbs:
1. Remove the battery cover.
2. Remove the luggage rack plastic cover by acting on the screw «A» and unscrew
the three fixing screws of the luggage rack.
3. Remove screw «B».
4. Remove side fairings by undoing screws «C» paying attention not to damage the
retaining straps.
5. Remove both screws «B » and take out the rear light unit.
To replace the tail light bulbs «E», take out the rubber bulb holder from its fitting and
slide off the bulb.
To replace turn indicator bulbs «F» and the stop light bulb «G», take out the bulb holder
pressing the plastic tongues and turning the bulb anticlockwise.
56
3 Maintenance

PIAGGIO BEVERLY Cruiser 500ie Specifications

General

Displacement	492 cc
Cooling System	Liquid cooled
Fuel System	Electronic injection
Transmission	Automatic CVT
Front Suspension	Telescopic hydraulic fork
Rear Brake	240 mm disc
Rear Tire	150/70-14
Width	780 mm
Seat Height	790 mm
Top Speed	160 km/h
Engine Type	Single cylinder, 4-stroke
Rear Suspension	Double hydraulic shock absorber
Front Brake	260 mm disc
Front Tire	110/70-16
