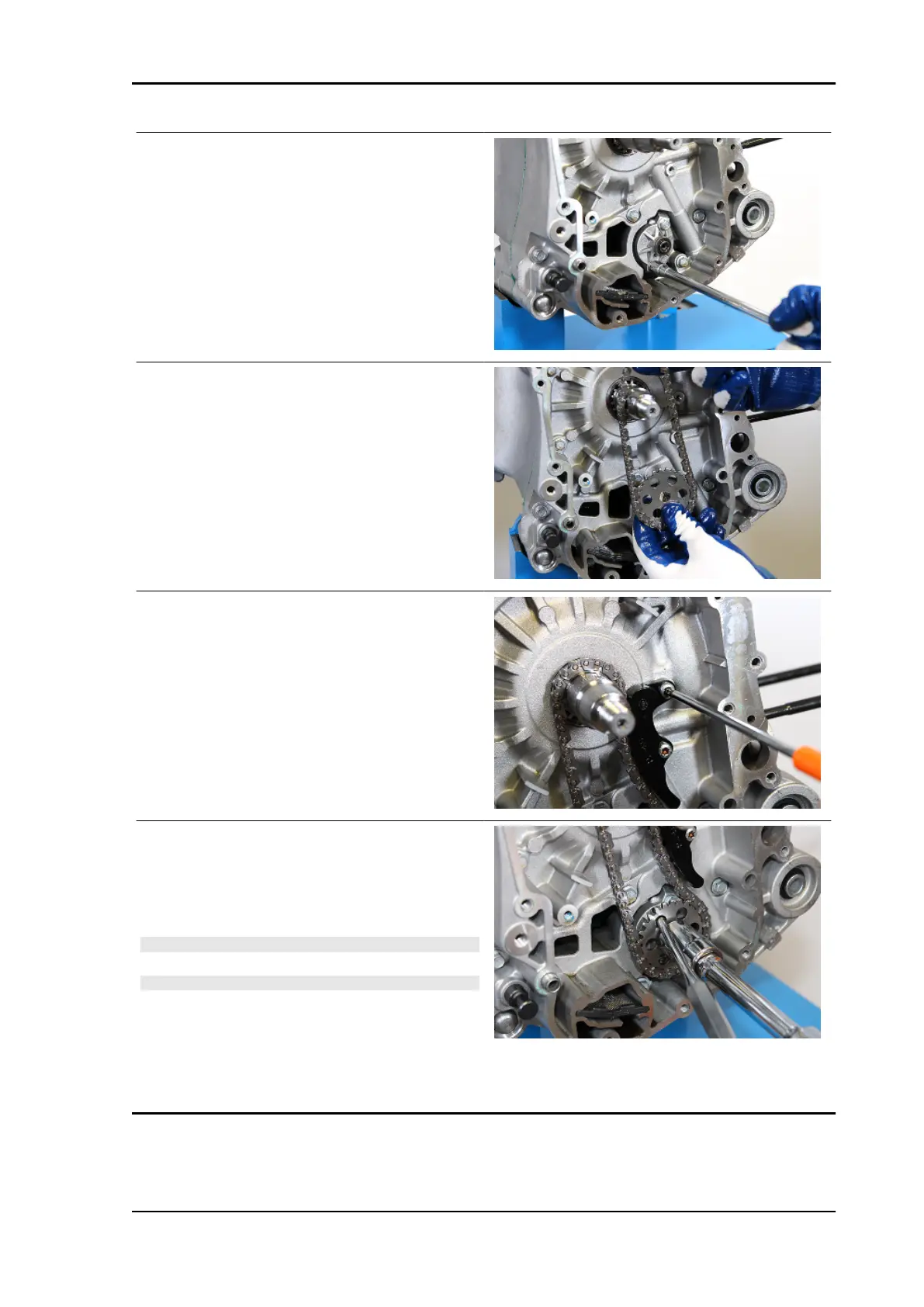

- Insert and tighten the oil pump fastening screws
to the crankcase to the specified torque.
Recommended products
Loctite 243 Medium strength thread-locking
sealant.
Blue
Locking torques (N*m)
Screws fixing oil pump to the crankcase 5 ÷ 6
- Insert the oil pump driving sprocket and chain.
- fit the tensioner pad.
- place the spring washer and insert the water
pump control screw.
- Preventing rotation, tighten the water pump com-
mand screw.
CAUTION
THE THREAD IS ANTICLOCKWISE.
N.B.
FIT THE BELLEVILLE WASHER SO THAT ITS OUTER RIM
TOUCHES THE PULLEY. MAKE SURE THAT THE PUMP
TURNS FREELY.
Locking torques (N*m)
Oil pump command sprocket screw 9 ÷ 11
MP3 400 hpe E5 Engine
ENG - 119
