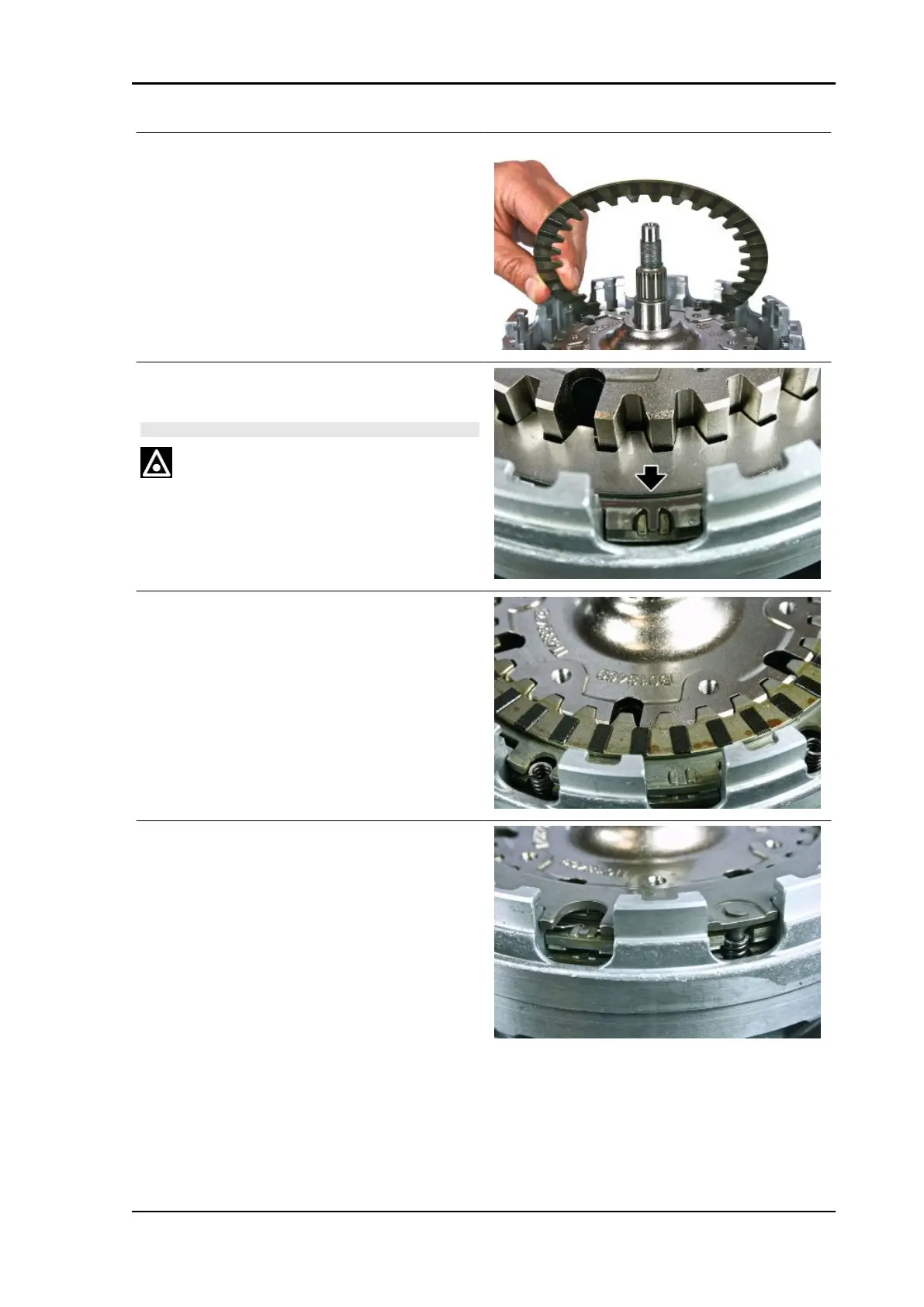

- Insert the semi-trimmed disc with the trimmed
surface facing the lower support disc
- Respect the indicated position of the discs clear-
ance recovery spring.
CAUTION
THE CLEARANCE RECOVERY SPRING DISCS ARE FIT-
TED INDIVIDUALLY.
THE LAST IN THE ASSEMBLY PHASE MUST BE POSI-
TIONED TOWARDS THE INSIDE OF THE HOUSING, AS
SHOWN IN FIGURE.
- Insert the semi-trimmed disc with the trimmed
surface facing the upper support disc
- Insert the upper support disc in the spring.
