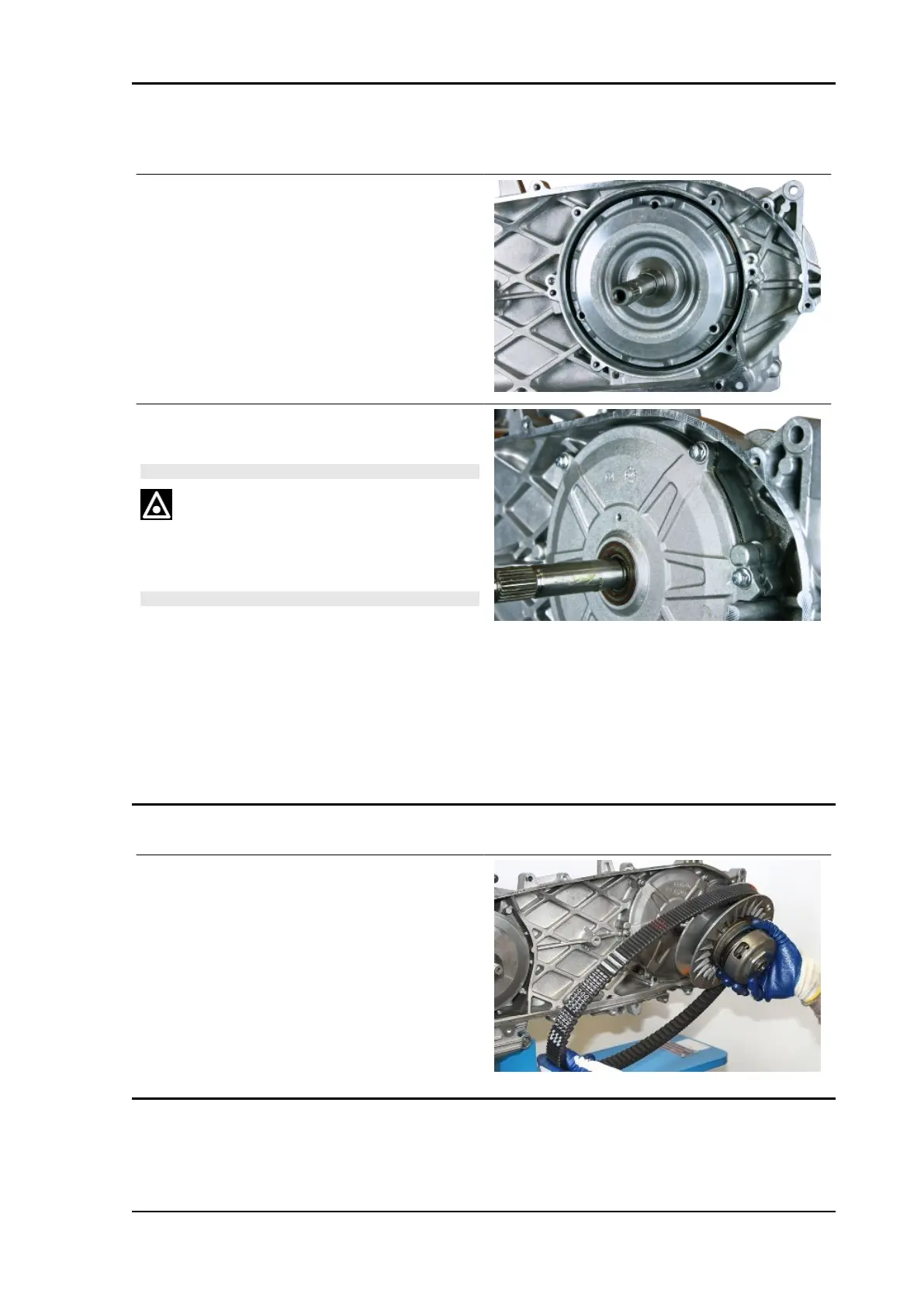

Refitting the clutch
- Insert the complete clutch assembly.
- Insert the clutch cover and tighten the six screws
to the specified torque.
WARNING
IN ORDER TO PREVENT ABNORMAL FORMATIONS OF
DIRT DUE TO THE RELEASE OF GREASE, WE RECOM-
MEND FIRST LUBRICATING THE SEAL RING STOPS WITH
A BRUSH.
WARNING
THE OUTER O-RING MUST BE PROPERLY GREASED.
DUE TO THE HIGH STRENGTH OF THE O-RING IT IS REC-
OMMENDED TO TIGHTEN IN CROSSED SEQUENCE UN-
TIL COMPLETING THE INSERTION.
Locking torques (N*m)
Clutch cover retainer screws 11 to 13
- Working as described in section «Fitting the hub cover» proceed to the locking of the clutch assem-
bly.
Refitting the driven pulley
- Insert the driven pulley, complete with belt, on the
shaft.
Drive-belt
- Make sure the drive belt is not damaged and does not show abnormal wear.
MP3 400 hpe E5 Engine
ENG - 61
