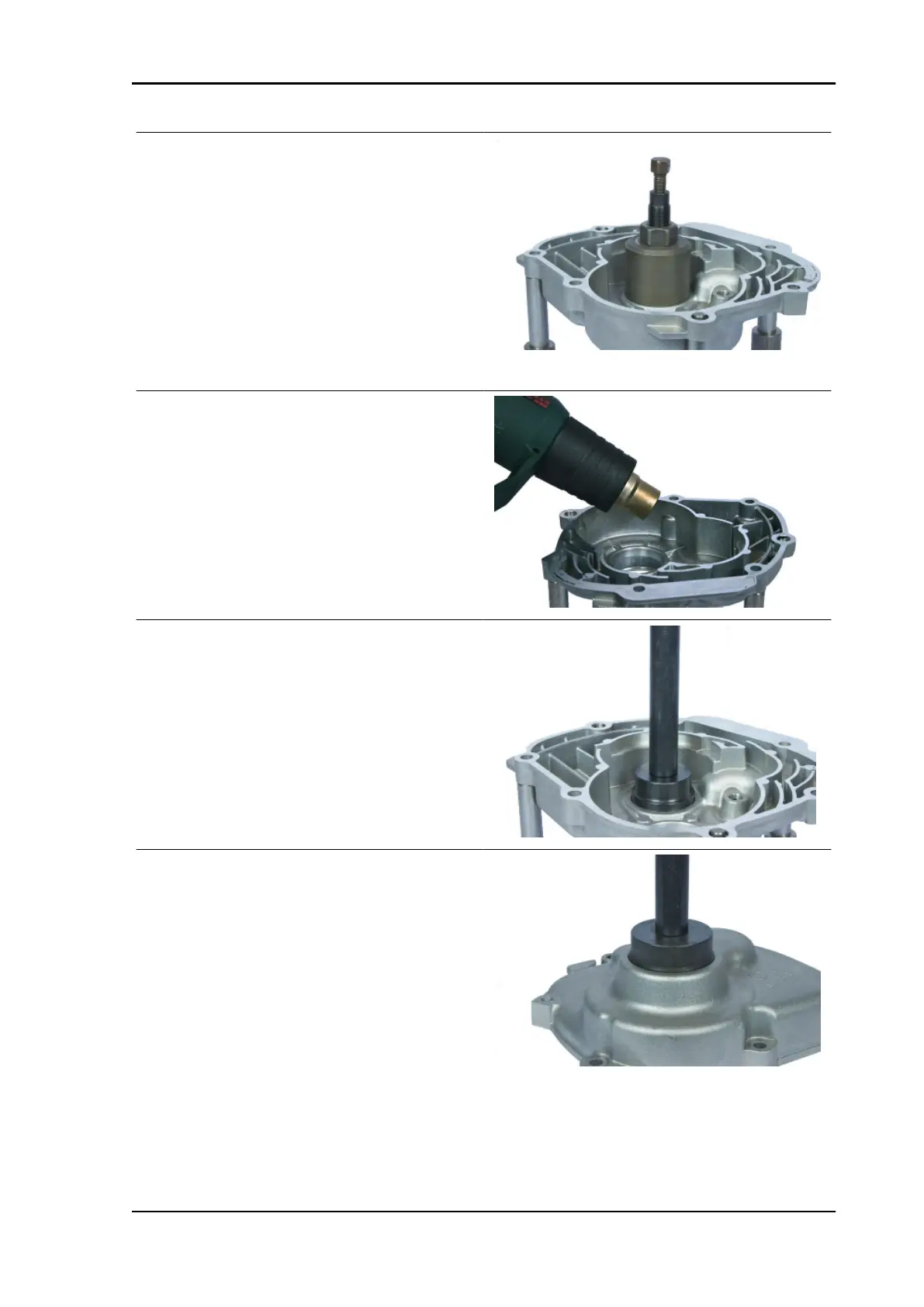

Removing the intermediate gear bearing
- Take out the bearing using the specific tool.
Specific tooling
001467Y003 Nut
001467Y004 Lug / Taper pin
001467Y005 Screw
001467Y006 Pliers to extract 20 mm bearings
001467Y035 Bearing housing, external ø 47
mm
FITTING
Fitting the Intermediate gear bearing
- Heat the crankcase by means of the specific tool
and then insert the bearings.
Specific tooling
020151Y Air heater
- Using the equipment set a new bearing.
Specific tooling
020376Y Adaptor handle
020359S 42 x 47 mm Adaptor
020363Y 20-mm guide
Fitting the Wheel axle bearing
- Using the equipment plant a new bearing, apply
grease on the adapter and guide in order to main-
tain the position of the bearing during operation on
the vertical axis.
Specific tooling
020376Y Adaptor handle
020360S 52 x 55 mm adaptor
020483Y 30-mm guide
