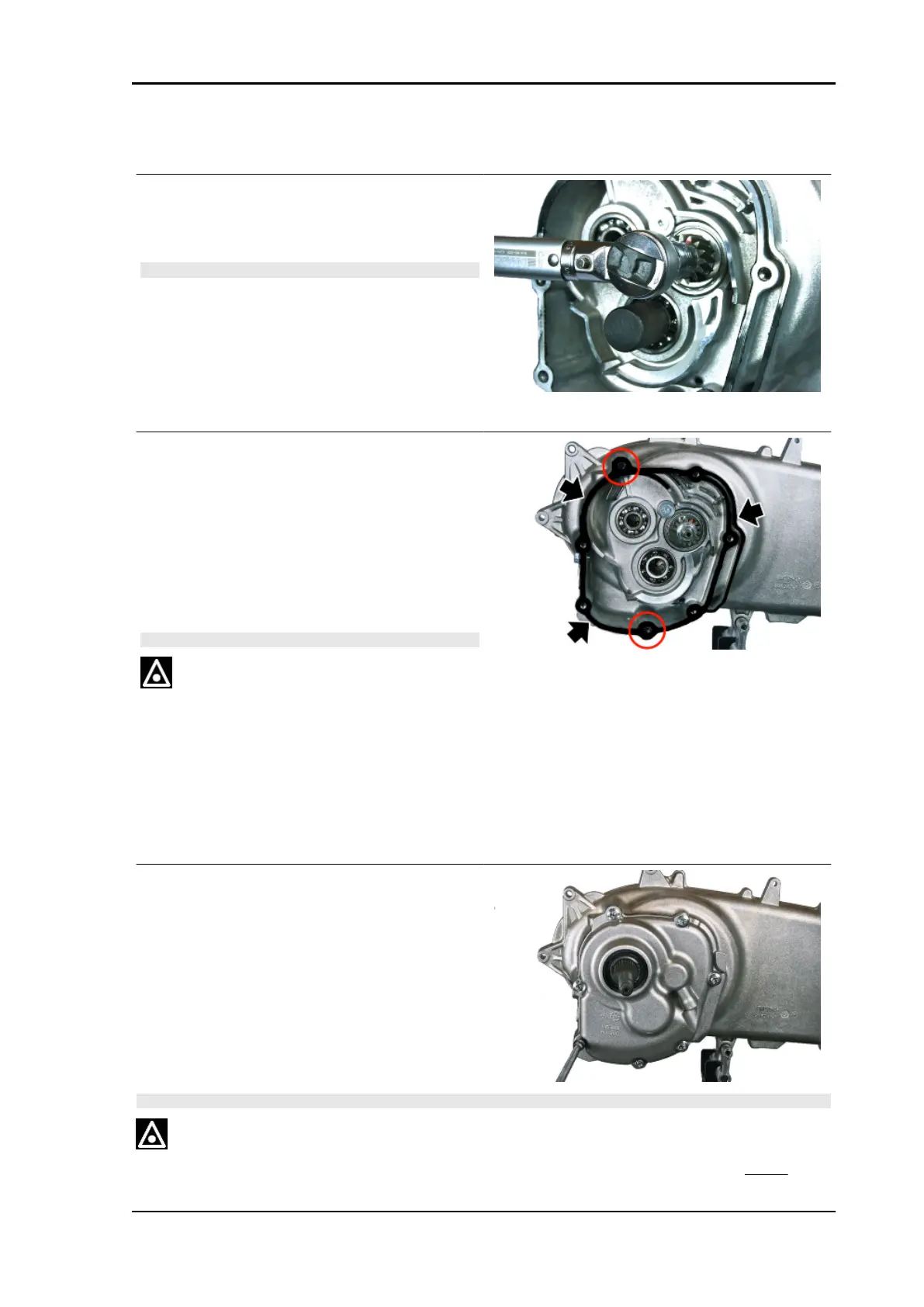

Refitting the ub cover
- Working in reverse order to the removal and us-
ing the specific tool, insert the control pinion, use
the recommended product and tighten the torque.
CAUTION
FOR THE INSTALLATION, ALWAYS USE NEW NUTS AL-
READY PROVIDED WITH SCOTCH GRIP.
Specific tooling
020918Y Clutch lock
Locking torques (N*m)
M12x1.25 gear clutch shaft retainer nut 95 ÷ 105
- Pay attention to the correct positioning of the
alignment dowels.
- Thoroughly clean the surfaces of the engine
crankcase and reduction cover and seal, with the
recommended product, the matching surface
around the entire outer perimeter of the duct that
leads to the breather.
CAUTION
AN IMPROPER SEALING OF THE VENTILATION CIRCUIT
MEANS A LOSS OF OIL INTO THE AUTOMATIC TRANS-
MISSION HOUSING.
Recommended products
THREE BOND TB1207B Liquid sealant
Three Bond liquid gasket TB1207B
- Remove the gasket.
- Insert the gears of the reduction unit in the re-
duction cover and tighten the screws to the speci-
fied torque, tightening in crossed sequence.
- Check the correct the tightening drainage screw.
Locking torques (N*m)
Final reduction cover screws 24 ÷ 27 Reduction
unit oil drainage screw 15 ÷ 17
CAUTION
THE FOLLOWING OIL REDUCTION FILLING PROCEDURE MUST BE CARRIED OUT ONLY WITH
THE MOTOR FITTED ON THE VEHICLE, ON THE CENTRE STAND IN FLAT LAND.
MP3 400 hpe E5 Engine
ENG - 75
