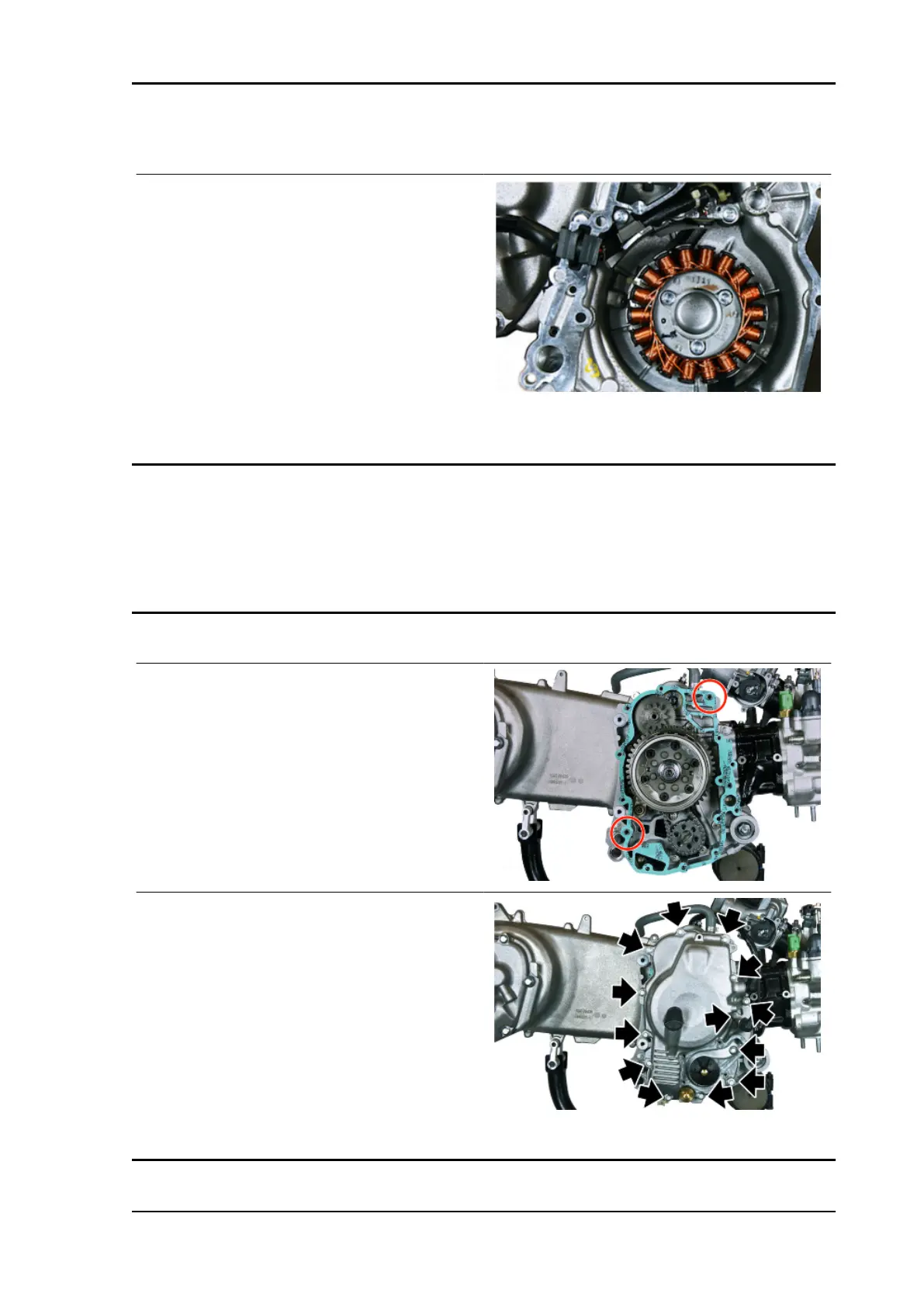

Refitting the stator
- Refit the stator and flywheel carrying out the re-
moval procedure in reverse, tightening the retain-
ers to the specified torque.
- Respect the operation of the pick-up.
Characteristic
Pick-up rotor measurement
0.4 to 0.75 mm
Locking torques (N*m)
Stator fixing screws 8 to 10 Pickup fixing
screws 3 - 4
Refitting the flywheel cover components
- Perform the procedure in reverse order of disassembly, taking care to tighten to specified torque.
Locking torques (N*m)
Pick-up screws 3 to 4 Coil fixing screw 11 to 13 Oil drain screw 20 to 24
Refitting the flywheel cover
- Fit the gasket and be careful with the two align-
ment dowels.
- Paying attention to the alignment of the coolant
pump shaft insert the crankcase with the com-
mand screw.
- Tighten the screws and tighten to the specified
torque.
Locking torques (N*m)
Flywheel cover retainer screws (2 screws) -
PRETIGHTENING 5 to 6 Flywheel cover retainer
screws (12 screws) - TIGHTENING 11 to 13 TCIC
M5x10 flywheel cover retainer screw 2.9 to 3.9
MP3 400 hpe E5 Engine
ENG - 79
