- Install the specific tool and unscrew the retainer
nut of the flywheel, recovering the washer.
Specific tooling
020627Y Flywheel lock tool

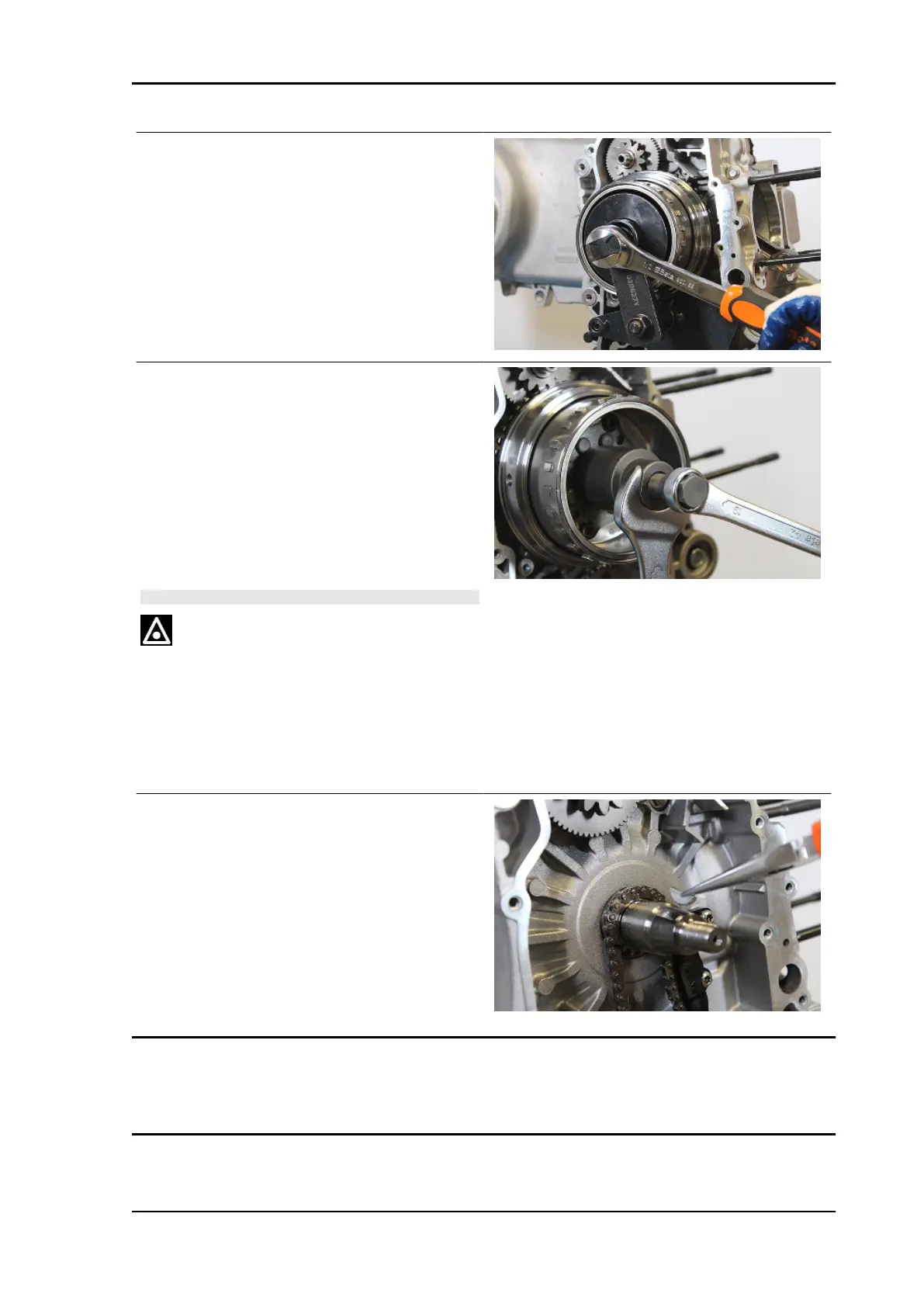

- Act on the extractor to remove the flywheel to-
gether with the starting sprocket.
- Remove the flywheel nut with its washer
- Do up the flywheel nut by three or four threads
so that the flywheel does not fall accidentally dur-
ing extraction
- Screw the extractor onto the flywheel and extract
it as shown in the picture
CAUTION
SCREWING UP THE NUT WITHOUT WASHER HELPS PRO-
TECT THE THREAD AGAINST THE STRAIN EXERTED BY
THE EXTRACTOR AND ALSO PREVENTS DROPPING THE
FLYWHEEL ACCIDENTALLY UPON EXTRACTING IT. PO-
TENTIAL DROPS MAY DAMAGE THE CERAMIC INSERTS.
Specific tooling
020467Y Flywheel extractor
- Remove the tool and unscrew the nut.
- Remove the complete flywheel paying attention
to recover the tongue.
Inspecting the flywheel components
- Check the integrity of the internal plastic parts of the flywheel and the Pick-up control plate.
